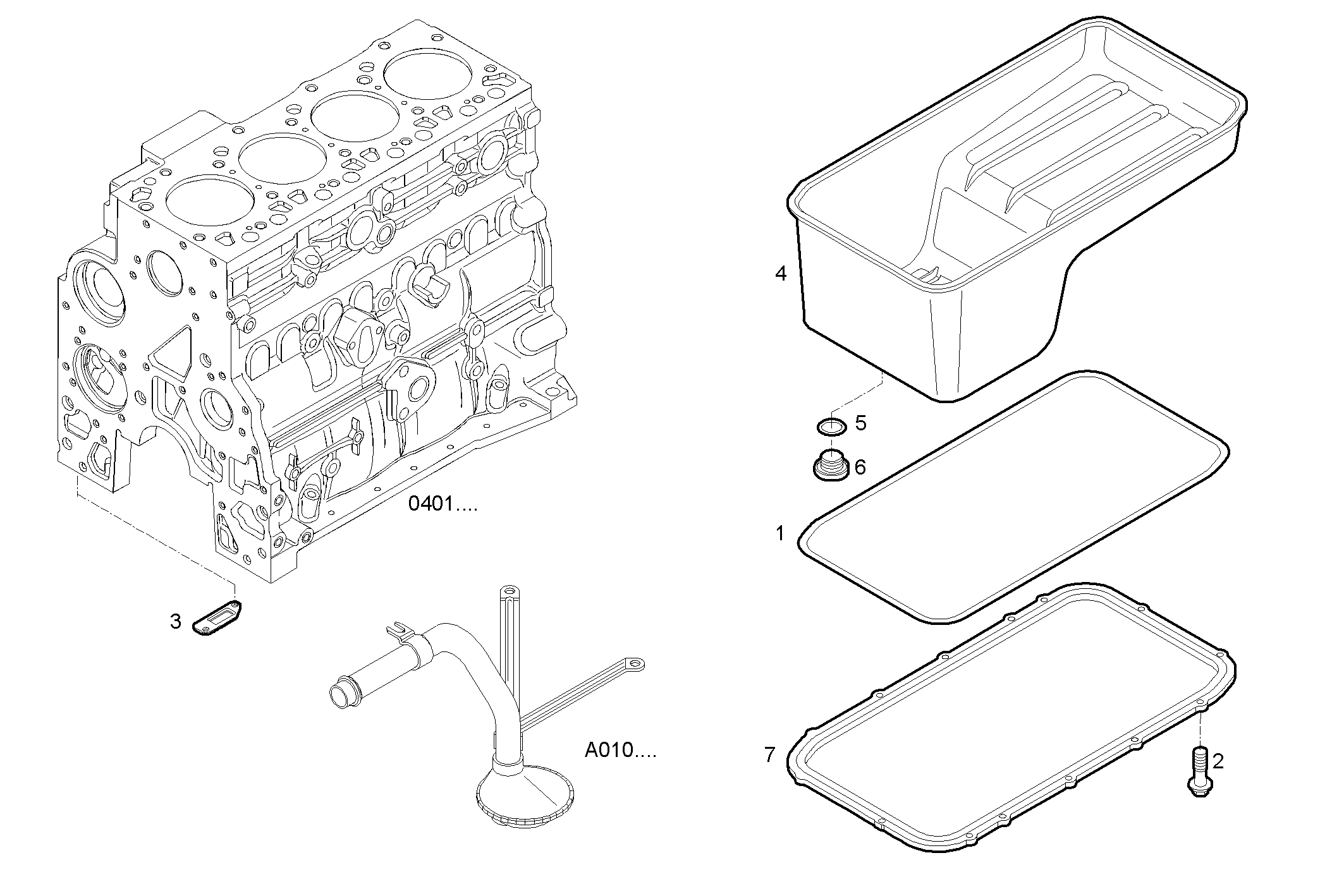

OIL SUMP
Assembly ID: 0420.251
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4897877 | OIL SUMP GASKET | 1 | ||
| 2 | 4899091 | HEXAGON BOLT | 14 | ||
| 3 | 4898301 | FLAT ENGINE GASKET | 1 | ||
| 4 | 500388253 | OIL SUMP | 1 | ||
| 5 | 17282280 | O-RING | 1 | ||
| 6 | 4894139 | THREADED PLUG | 1 | ||
| 7 | 4897876 | SPACING BAR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNTX20.00A011 | NEF 4 mechanic. - TIER 3 | view |
| N45ENTX20.00A003 | NEF 4 electron. - TIER 3 | view |
