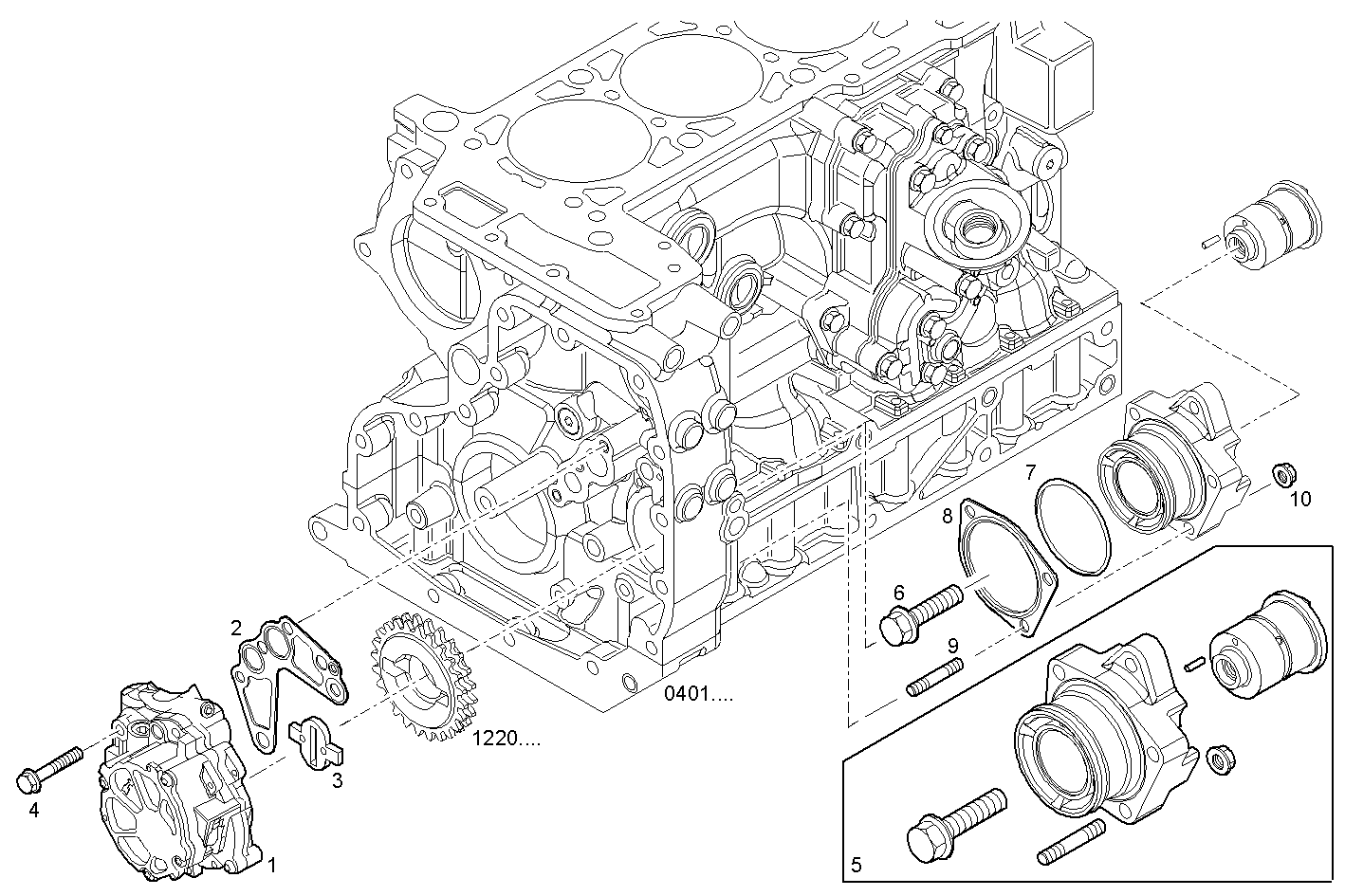

INSERTED BOX ASSEM.
Assembly ID: 0430.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504334322 | LUBE OIL PUMP | 1 | ||
| 2 | 504334326 | FLAT ENGINE GASKET | 1 | ||
| 3 | 504086744 | SPACING BAR | 1 | ||
| 4 | 504102823 | HEXAGON BOLT | 5 | ||
| 5 | 504189626 | SUPPORT | 1 | ||
| 6 | 500347046 | HEXAGON BOLT | 1 | ||
| 7 | 17284781 | O-RING | 1 | ||
| 8 | 504135162 | FLAT ENGINE GASKET | 1 | ||
| 9 | 16746824 | STUD | 3 | ||
| 10 | 17044725 | HEXAGON NUT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE3481A*A001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A008 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A006 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A008 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A004 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A005 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A006 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A007 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A004 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A005 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A007 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A015 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A016 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A017 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A018 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE0481F*C001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.30A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481H*C003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT425.10A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE3481G*A001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481G*A002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481G*A003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481G*A004 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE0481F*C504 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.70A002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.11A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481L*A003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENTC24.00L008 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE3481F*D003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D013 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D012 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D011 | SOFIM HPI 3.0L - EURO 5 | view |
