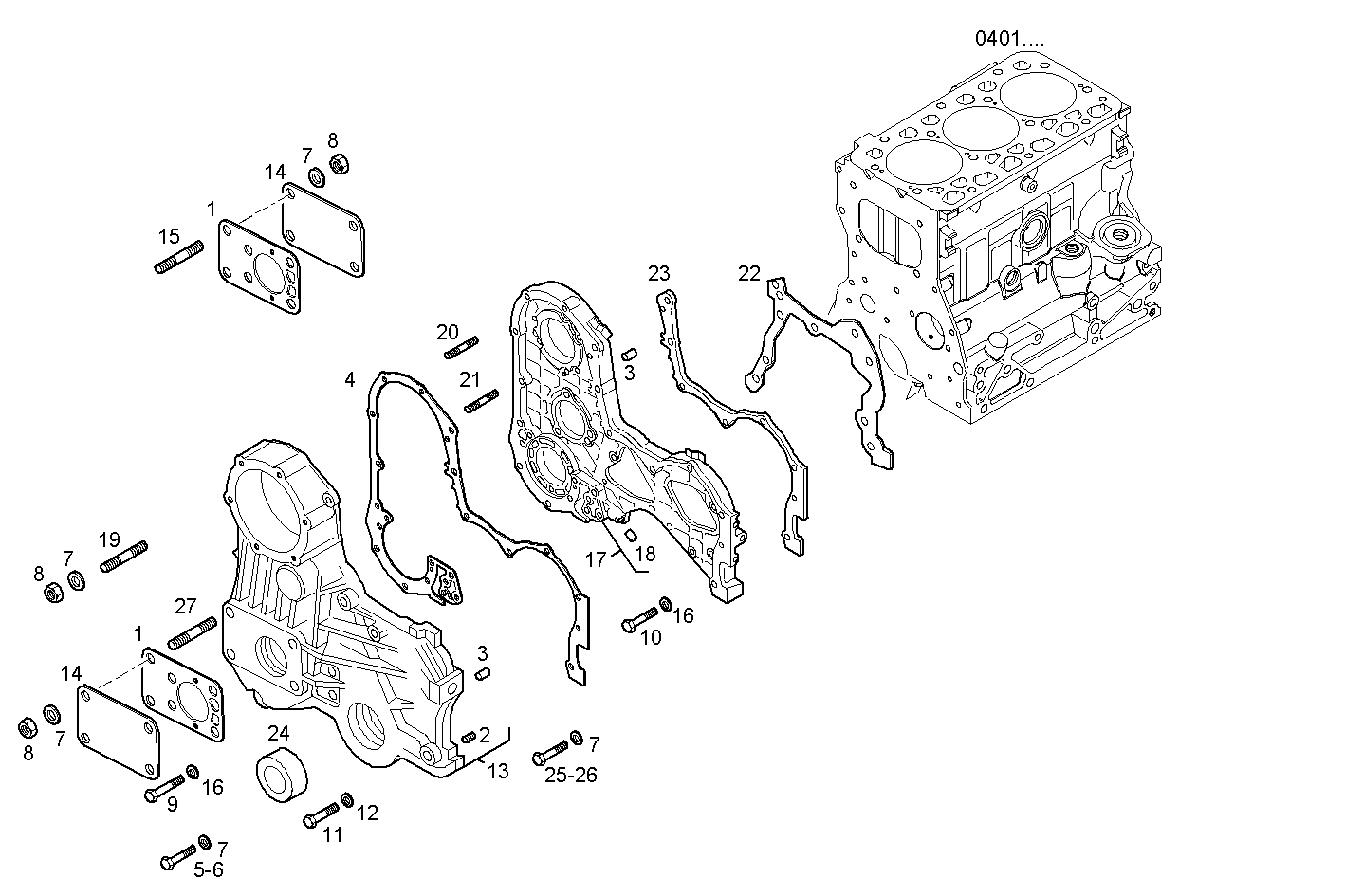

| 1 |
504092108
|
FLAT ENGINE GASKET
|
|
2
|
|
| 2 |
13526170
|
THREADED INSERT
|
|
5
|
|
| 3 |
10839610
|
DOWEL PIN
|
|
2
|
|
| 4 |
98418138
|
FLAT ENGINE GASKET
|
|
1
|
|
| 5 |
16044924
|
SCREW
|
|
3
|
|
| 6 |
16606524
|
HEXAGON BOLT
|
|
3
|
|
| 7 |
17094904
|
WASHER
|
|
15
|
|
| 8 |
17037925
|
HEXAGON NUT
|
|
9
|
|
| 9 |
16606124
|
HEXAGON BOLT
|
|
4
|
|
| 10 |
16605824
|
HEXAGON BOLT
|
|
1
|
|
| 11 |
15888824
|
HEXAGON BOLT
|
|
1
|
|
| 12 |
17095014
|
WASHER
|
|
1
|
|
| 13 |
99479056
|
FRONT C.CASE COVER
|
|
1
|
|
| 14 |
500315902
|
COVER
|
|
2
|
|
| 15 |
16729324
|
STUD
|
|
4
|
|
| 16 |
17089474
|
SPRING WASHER
|
|
5
|
|
| 17 |
504120950
|
TIMINGGEAR HOUSIN
|
|
1
|
|
| 18 |
4605220
|
OIL NOZZLE
|
|
1
|
|
| 19 |
13543624
|
STUD
|
|
4
|
|
| 20 |
13546921
|
STUD
|
|
3
|
|
| 21 |
504122008
|
STUD
|
|
3
|
|
| 22 |
98424046
|
FLAT ENGINE GASKET
|
|
1
|
|
| 23 |
98432469
|
FLAT ENGINE GASKET
|
|
1
|
|
| 24 |
99469265
|
SHAFT SEAL
|
|
1
|
|
| 25 |
15000724
|
HEXAGON BOLT
|
|
2
|
|
| 26 |
16605734
|
HEXAGON BOLT
|
|
1
|
|
| 27 |
13517630
|
STUD
|
|
4
|
|
