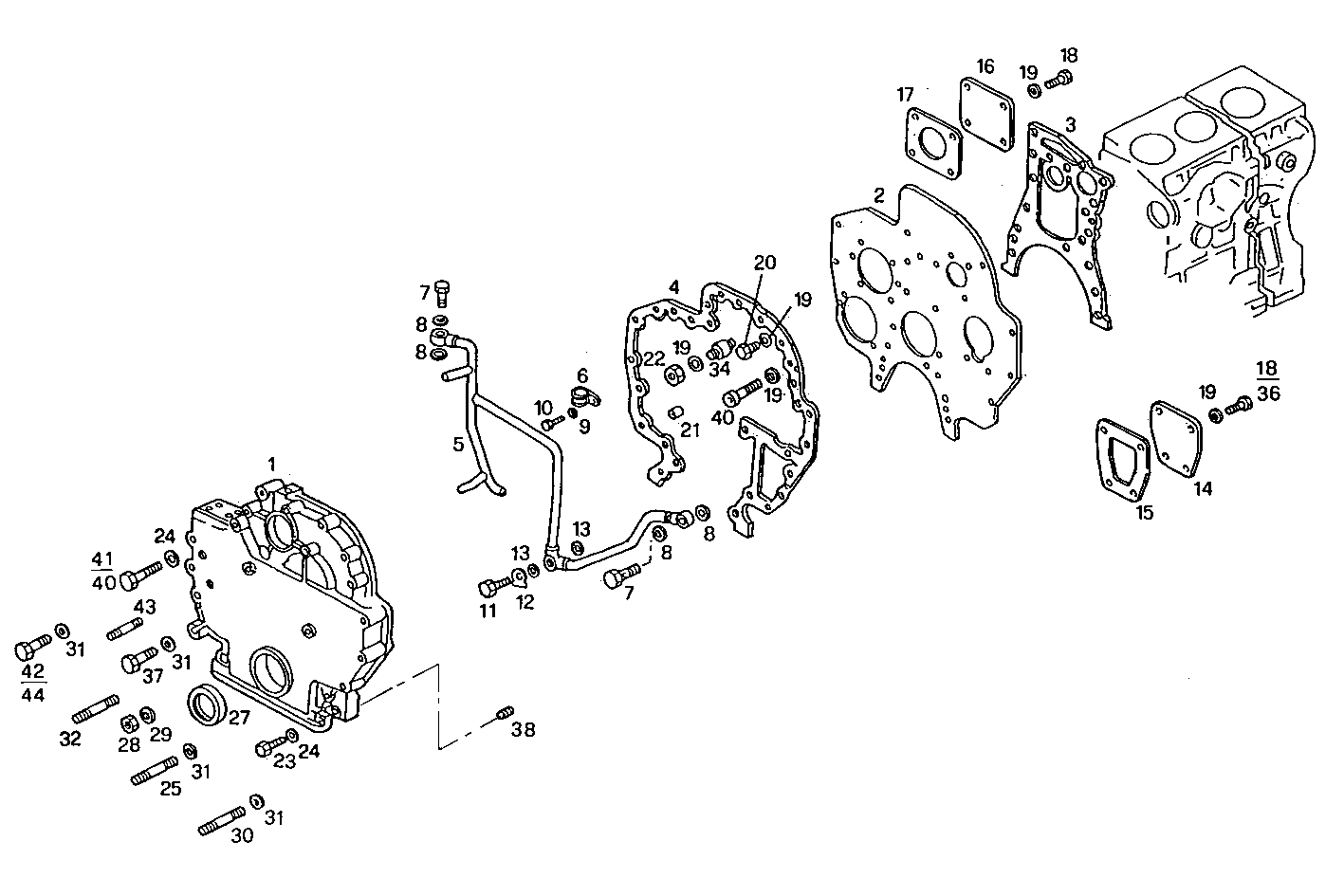

| 1 |
4792306
|
FRONT C.CASE COVER
|
|
1
|
|
| 2 |
4756344
|
PLATE
|
|
1
|
|
| 3 |
99431449
|
FLAT ENGINE GASKET
|
|
1
|
|
| 4 |
98462005
|
GASKET
|
|
1
|
|
| 5 |
4679631
|
OIL LINE
|
|
1
|
|
| 6 |
852410
|
FASTENING BRACKET
|
|
1
|
|
| 7 |
4707984
|
SCREW CONNECTOR
|
|
3
|
|
| 8 |
10262760
|
SEAL GASKET
|
|
6
|
|
| 9 |
17094914
|
WASHER
|
|
1
|
|
| 10 |
16042924
|
SCREW
|
|
1
|
|
| 11 |
4679620
|
SCREW CONNECTOR
|
|
1
|
|
| 12 |
852409
|
LOCKING PLATE
|
|
1
|
|
| 13 |
10279460
|
SEAL GASKET
|
|
2
|
|
| 14 |
4687341
|
COVER
|
|
1
|
|
| 15 |
4864032
|
FLAT ENGINE GASKET
|
|
1
|
|
| 16 |
4547528
|
COVER
|
|
1
|
|
| 17 |
4863975
|
FLAT ENGINE GASKET
|
|
1
|
|
| 18 |
15970524
|
HEXAGON BOLT
|
|
7
|
|
| 19 |
17090274
|
WASHER
|
|
21
|
|
| 20 |
15970734
|
HEXAGON BOLT
|
|
11
|
|
| 21 |
10837810
|
DOWEL PIN
|
|
1
|
|
| 22 |
17038221
|
HEXAGON NUT
|
|
2
|
|
|
17038225 |
HEXAGON NUT |
|
2 |
|
| 23 |
11288024
|
HEXAGON BOLT
|
|
2
|
|
| 24 |
17097124
|
WASHER
|
|
2
|
|
| 25 |
13453821
|
STUD
|
|
1
|
|
| 27 |
98467211
|
WASHER
|
|
1
|
|
|
98494984 |
WASHER |
|
1 |
|
| 28 |
17038531
|
HEXAGON NUT
|
|
6
|
|
| 29 |
12646924
|
WASHER
|
|
6
|
|
|
16887624 |
WASHER |
|
6 |
|
| 30 |
13454021
|
STUD
|
|
1
|
|
| 31 |
17094924
|
WASHER
|
|
11
|
|
| 32 |
13453724
|
STUD
|
|
4
|
|
| 34 |
13449330
|
STUD
|
|
2
|
|
| 36 |
15970921
|
HEXAGON BOLT
|
|
1
|
|
| 37 |
15970524
|
HEXAGON BOLT
|
|
7
|
|
| 38 |
17274710
|
DOWEL PIN
|
|
2
|
|
| 40 |
16605734
|
HEXAGON BOLT
|
|
1
|
|
| 41 |
16606324
|
HEXAGON BOLT
|
|
3
|
|
| 42 |
16606624
|
HEXAGON BOLT
|
|
4
|
|
| 43 |
4782501
|
STUD
|
|
6
|
|
| 44 |
16606424
|
HEXAGON BOLT
|
|
3
|
|
