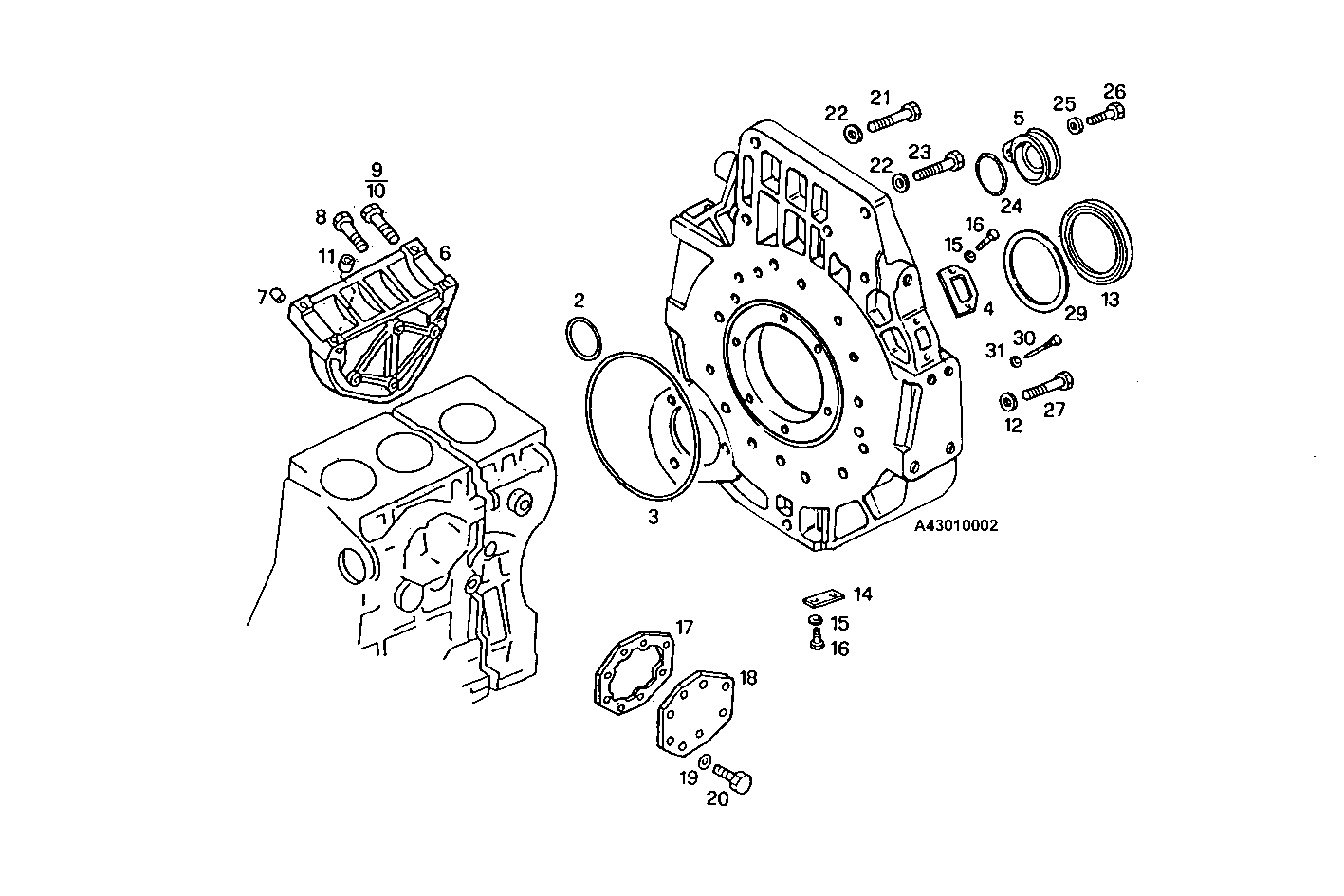

| 2 |
98464890
|
O-RING
|
|
1
|
|
| 3 |
98464798
|
O-RING
|
|
1
|
|
| 4 |
4558988
|
REAR C.CASE COVER
|
|
1
|
|
| 5 |
4651691
|
COVER
|
|
1
|
|
| 6 |
4643582
|
SUPPORT
|
|
1
|
|
| 7 |
10837710
|
DOWEL PIN
|
|
2
|
|
| 8 |
16326521
|
SCREW
|
|
1
|
|
| 9 |
16326824
|
LOCKING SCREW
|
|
2
|
|
| 10 |
16327024
|
LOCKING SCREW
|
|
1
|
|
| 11 |
4626942
|
DOWEL PIN
|
|
2
|
|
|
IVE4626942 |
DOWEL PIN |
|
2 |
|
| 12 |
4837398
|
WASHER
|
|
10
|
|
| 13 |
98467213
|
WASHER
|
|
1
|
|
|
98494987 |
WASHER |
|
1 |
|
| 14 |
4623266
|
STOP PLATE
|
|
1
|
|
| 15 |
17089574
|
WASHER
|
|
4
|
|
|
17089575 |
WASHER |
|
4 |
|
| 16 |
16605424
|
SCREW
|
|
4
|
|
| 17 |
4863958
|
FLAT ENGINE GASKET
|
|
1
|
|
| 18 |
4530113
|
COVER
|
|
1
|
|
| 19 |
17088474
|
WASHER
|
|
8
|
|
| 20 |
16603624
|
HEXAGON BOLT
|
|
8
|
|
| 21 |
15860133
|
SCREW
|
|
1
|
|
| 22 |
4604279
|
SPRING WASHER
|
|
4
|
|
| 23 |
15977533
|
HEXAGON BOLT
|
|
3
|
|
| 24 |
17284281
|
O-RING
|
|
1
|
|
| 25 |
17090274
|
WASHER
|
|
1
|
|
| 26 |
15004021
|
HEXAGON BOLT
|
|
1
|
|
| 27 |
15540734
|
SCREW
|
|
10
|
|
| 29 |
4692004
|
RING
|
|
1
|
|
| 30 |
61315660
|
SCREW
|
|
1
|
|
| 31 |
12649624
|
WASHER
|
|
1
|
|
