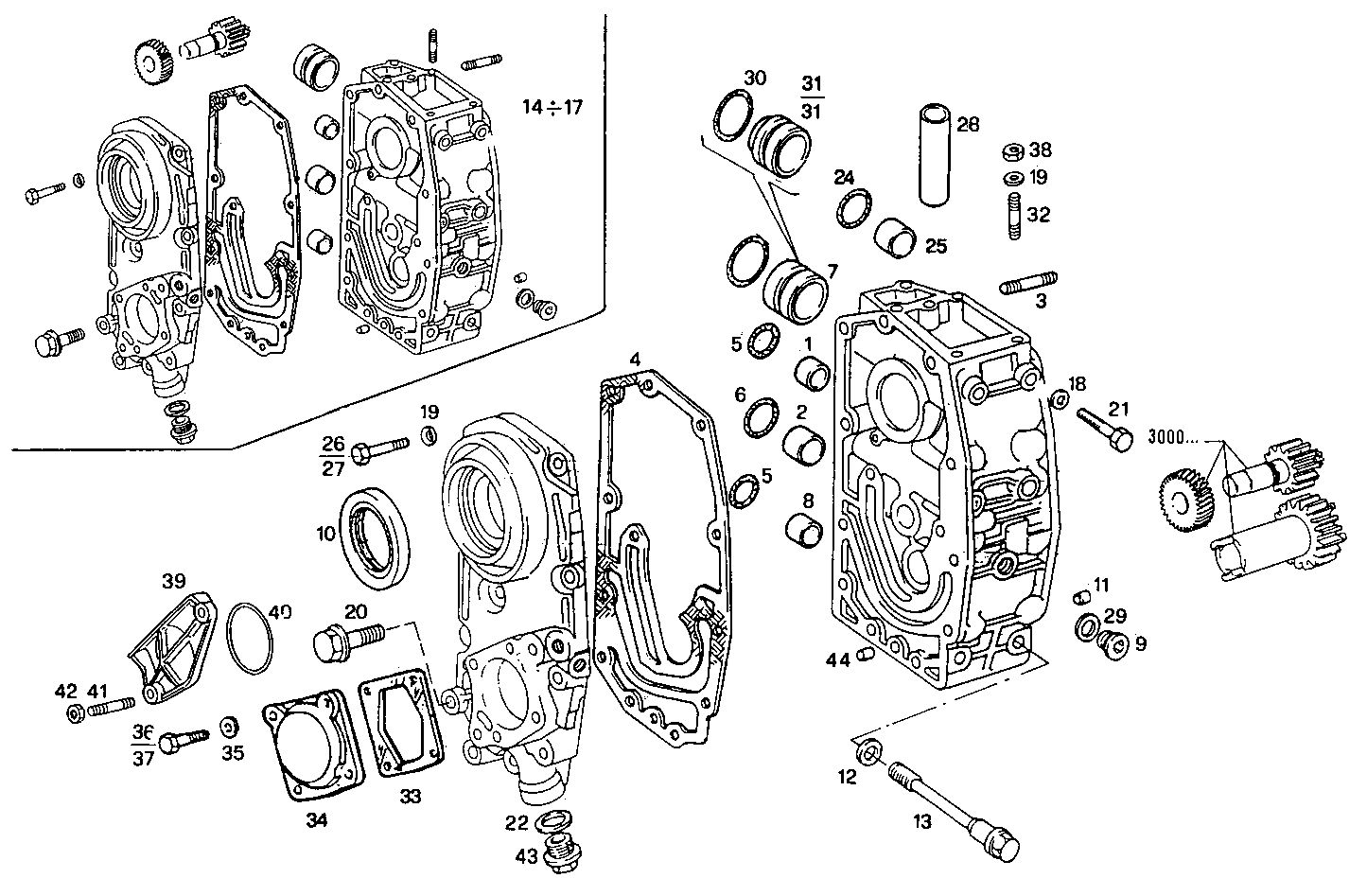

| 1 |
4279407
|
BUSH
|
|
1
|
|
| 2 |
4279406
|
BUSH
|
|
1
|
|
| 3 |
4600631
|
STUD
|
|
3
|
|
|
500346886 |
STUD |
|
3 |
|
| 4 |
98421263
|
FLAT ENGINE GASKET
|
|
1
|
|
|
504133583 |
FLAT ENGINE GASKET |
|
1 |
|
| 5 |
4755221
|
O-RING
|
|
2
|
|
| 6 |
4755220
|
O-RING
|
|
1
|
|
| 7 |
4720702
|
BUSH
|
|
1
|
|
| 8 |
4710945
|
BUSH
|
|
1
|
|
| 9 |
4731591
|
THREADED PLUG
|
|
2
|
|
| 10 |
40100324
|
SHAFT SEAL
|
|
1
|
|
|
98454045 |
SHAFT SEAL |
|
1 |
|
| 11 |
4732685
|
DOWEL PIN
|
|
1
|
|
| 12 |
13550521
|
WASHER
|
|
4
|
|
|
17097324 |
WASHER |
|
4 |
|
| 13 |
7302294
|
SCREW
|
|
4
|
|
| 14 |
7301936
|
FRONT C.CASE COVER
|
|
1
|
|
|
99446746 |
FRONT C.CASE COVER |
|
1 |
|
| 15 |
98492155
|
SUPPORT
|
|
1
|
|
| 16 |
98491256
|
SUPPORT
|
|
1
|
|
| 17 |
99446913
|
BEARING HOUSING
|
|
1
|
|
| 18 |
10519621
|
WASHER
|
|
2
|
|
| 19 |
17089474
|
SPRING WASHER
|
|
11
|
|
| 20 |
7300084
|
SCREW
|
|
1
|
|
| 21 |
98468138
|
HEXAGON BOLT
|
|
2
|
|
| 22 |
10263360
|
SEAL GASKET
|
|
1
|
|
| 23 |
17283581
|
O-RING
|
|
1
|
|
| 24 |
98461178
|
O-RING
|
|
1
|
|
| 25 |
98461177
|
BUSH
|
|
1
|
|
| 26 |
16606024
|
SCREW
|
|
1
|
|
| 27 |
16605624
|
HEXAGON BOLT
|
|
5
|
|
|
16605635 |
HEXAGON BOLT |
|
5 |
|
| 28 |
4710958
|
GUIDE BUSH
|
|
1
|
|
| 29 |
16508160
|
WASHER
|
|
2
|
|
|
4858608 |
WASHER |
|
2 |
|
| 30 |
14458881
|
O-RING
|
|
1
|
|
| 31 |
98497911
|
BUSH
|
|
1
|
|
| 32 |
13544121
|
STUD
|
|
1
|
|
| 33 |
98421305
|
FLAT ENGINE GASKET
|
|
1
|
|
| 34 |
4782499
|
COVER
|
|
1
|
|
| 35 |
17088474
|
WASHER
|
|
4
|
|
| 36 |
10903221
|
HEXAGON BOLT
|
|
2
|
|
|
16604124 |
HEXAGON BOLT |
|
2 |
|
| 37 |
10902421
|
HEXAGON BOLT
|
|
2
|
|
| 38 |
16100815
|
HEXAGON NUT
|
|
1
|
|
| 39 |
98460651
|
PTO COVER
|
|
1
|
|
| 40 |
17283880
|
O-RING
|
|
1
|
|
| 41 |
13449521
|
STUD
|
|
2
|
|
|
13449524 |
STUD |
|
2 |
|
| 42 |
14059411
|
HEXAGON NUT
|
|
2
|
|
| 43 |
10305071
|
LOCK PLUG
|
|
1
|
|
| 44 |
98465476
|
DOWEL PIN
|
|
3
|
|
