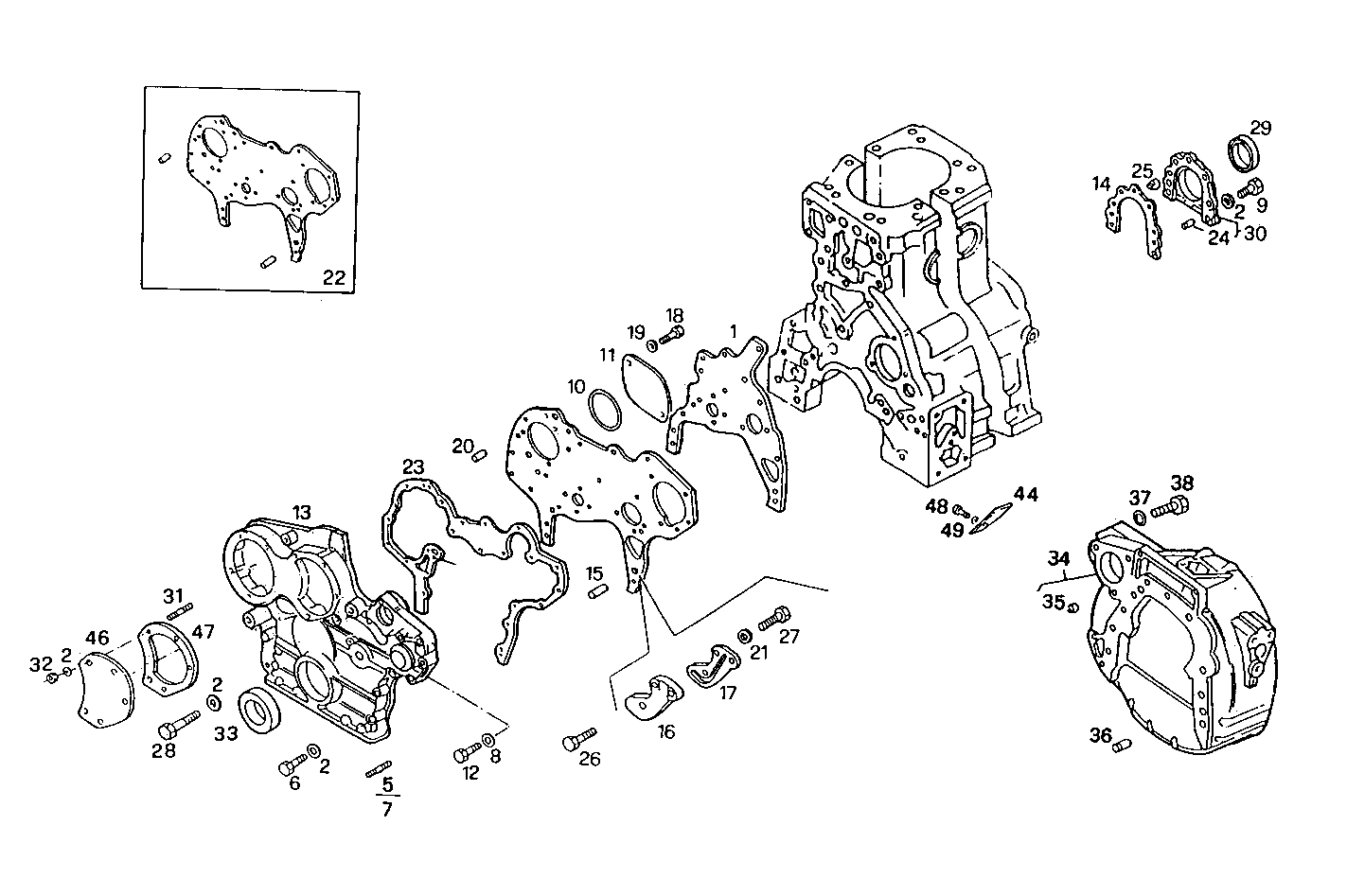

| 1 |
61319059
|
FLAT ENGINE GASKET
|
|
1
|
|
| 2 |
17089574
|
WASHER
|
|
14
|
|
|
17089575 |
WASHER |
|
14 |
|
| 5 |
13547021
|
STUD
|
|
1
|
|
| 6 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
| 7 |
13546521
|
STUD
|
|
3
|
|
| 8 |
17090274
|
WASHER
|
|
2
|
|
| 9 |
16605624
|
HEXAGON BOLT
|
|
8
|
|
|
16605635 |
HEXAGON BOLT |
|
8 |
|
| 10 |
61318654
|
O-RING
|
|
1
|
|
| 11 |
8016615
|
COVER
|
|
1
|
|
| 12 |
16044724
|
SCREW
|
|
2
|
|
|
16044721 |
SCREW |
|
2 |
|
| 13 |
61319090
|
FRONT C.CASE COVER
|
|
1
|
|
| 14 |
61319046
|
FLAT ENGINE GASKET
|
|
1
|
|
| 15 |
61316841
|
THREADED INSERT
|
|
1
|
|
| 16 |
61315071
|
FLANGE
|
|
1
|
|
| 17 |
61319044
|
FLAT ENGINE GASKET
|
|
1
|
|
| 18 |
16605734
|
HEXAGON BOLT
|
|
1
|
|
| 19 |
17089474
|
SPRING WASHER
|
|
4
|
|
| 20 |
61316840
|
THREADED INSERT
|
|
1
|
|
| 21 |
61316021
|
RING
|
|
2
|
|
| 22 |
61318546
|
PLATE
|
|
1
|
|
| 23 |
61319058
|
FLAT ENGINE GASKET
|
|
1
|
|
| 24 |
61577156
|
DOWEL PIN
|
|
1
|
|
| 25 |
61581074
|
DOWEL PIN
|
|
1
|
|
| 26 |
61584440
|
HEXAGON BOLT
|
|
1
|
|
| 27 |
61584442
|
CYLIND-HEAD SCREW
|
|
2
|
|
| 28 |
16606724
|
HEXAGON BOLT
|
|
8
|
|
| 29 |
40101471
|
OIL RETAINER
|
|
1
|
|
| 30 |
61672682
|
COVER
|
|
1
|
|
| 31 |
16746624
|
STUD
|
|
5
|
|
| 32 |
17042531
|
HEXAGON NUT
|
|
5
|
|
| 33 |
98467211
|
WASHER
|
|
1
|
|
|
98494984 |
WASHER |
|
1 |
|
| 34 |
61317966
|
REAR C.CASE COVER
|
|
1
|
|
| 35 |
61316846
|
CENTERING PIN
|
|
1
|
|
| 36 |
61316847
|
CENTERING PIN
|
|
1
|
|
| 37 |
61229230
|
SPRING WASHER
|
|
12
|
|
| 38 |
15860134
|
SCREW
|
|
12
|
|
| 44 |
61320467
|
COVER
|
|
1
|
|
| 46 |
61317134
|
SIDE COVER
|
|
1
|
|
| 47 |
61319061
|
FLAT ENGINE GASKET
|
|
1
|
|
| 48 |
15544021
|
SCREW
|
|
1
|
|
| 49 |
12646901
|
WASHER
|
|
1
|
|
|
16887624 |
WASHER |
|
1 |
|
