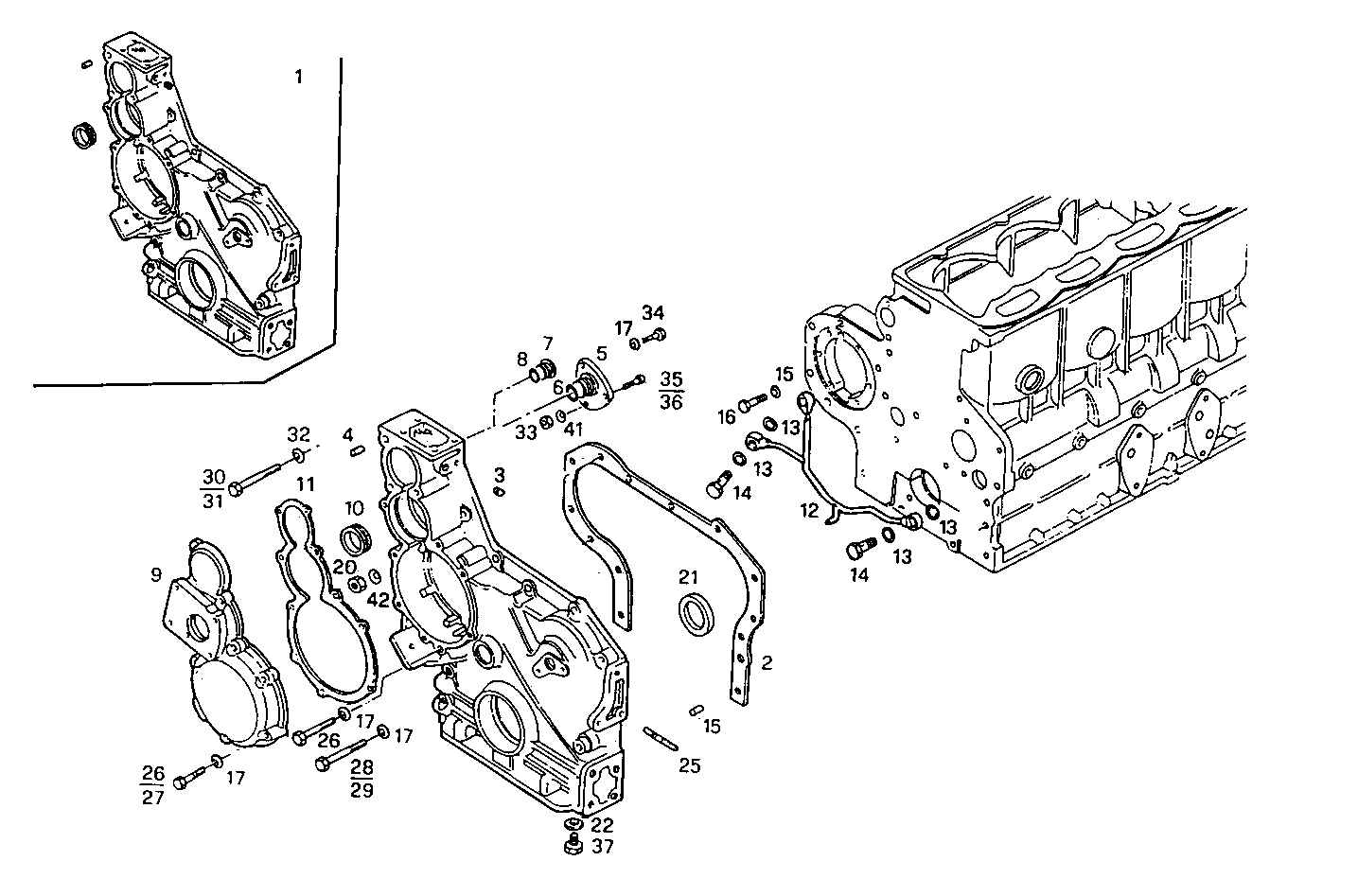

| 1 |
4717884
|
FRONT C.CASE COVER
|
|
1
|
|
| 2 |
98411985
|
FLAT ENGINE GASKET
|
|
1
|
|
| 3 |
4560434
|
PLUG
|
|
1
|
|
| 4 |
4708557
|
DOWEL PIN
|
|
1
|
|
| 5 |
4738944
|
COVER
|
|
1
|
|
| 6 |
17284681
|
O-RING
|
|
1
|
|
| 7 |
4718902
|
PLUG
|
|
1
|
|
| 8 |
14458281
|
O-RING
|
|
1
|
|
|
98465110 |
O-RING |
|
1 |
|
| 9 |
4732679
|
COVER
|
|
1
|
|
| 10 |
4708220
|
BUSH
|
|
1
|
|
| 11 |
98411987
|
GASKET
|
|
1
|
|
| 12 |
4713668
|
OIL LINE
|
|
1
|
|
| 13 |
10279460
|
SEAL GASKET
|
|
4
|
|
| 14 |
4864080
|
SCREW CONNECTOR
|
|
2
|
|
| 15 |
11197770
|
SPRING WASHER
|
|
1
|
|
| 16 |
10902621
|
SCREW
|
|
1
|
|
| 17 |
11193879
|
SPRING WASHER
|
|
22
|
|
|
17089474 |
SPRING WASHER |
|
22 |
|
| 20 |
15896211
|
HEXAGON NUT
|
|
4
|
|
|
17037821 |
HEXAGON NUT |
|
4 |
|
| 21 |
40101390
|
SHAFT SEAL
|
|
1
|
|
| 22 |
10279560
|
SEAL GASKET
|
|
1
|
|
| 25 |
13546424
|
STUD
|
|
3
|
|
| 26 |
16044021
|
HEXAGON BOLT
|
|
14
|
|
|
16605934 |
HEXAGON BOLT |
|
14 |
|
| 27 |
16044221
|
HEXAGON BOLT
|
|
1
|
|
|
16606124 |
HEXAGON BOLT |
|
1 |
|
| 28 |
16044321
|
HEXAGON BOLT
|
|
1
|
|
| 29 |
16046021
|
HEXAGON BOLT
|
|
1
|
|
| 30 |
15971521
|
HEXAGON BOLT
|
|
2
|
|
|
15971524 |
HEXAGON BOLT |
|
2 |
|
| 31 |
15971721
|
SCREW
|
|
2
|
|
| 32 |
17090274
|
WASHER
|
|
6
|
|
| 33 |
17038221
|
HEXAGON NUT
|
|
2
|
|
|
17038225 |
HEXAGON NUT |
|
2 |
|
| 34 |
16043821
|
HEXAGON BOLT
|
|
1
|
|
| 35 |
15971821
|
SCREW
|
|
1
|
|
| 36 |
15972021
|
HEXAGON BOLT
|
|
1
|
|
| 37 |
10275040
|
LOCK PLUG
|
|
1
|
|
| 38 |
8018009
|
COVER
|
|
1
|
|
| 39 |
16605424
|
SCREW
|
|
4
|
|
| 41 |
11198371
|
SPRING WASHER
|
|
2
|
|
|
17090274 |
SPRING WASHER |
|
2 |
|
| 42 |
11197771
|
SPRING WASHER
|
|
4
|
|
