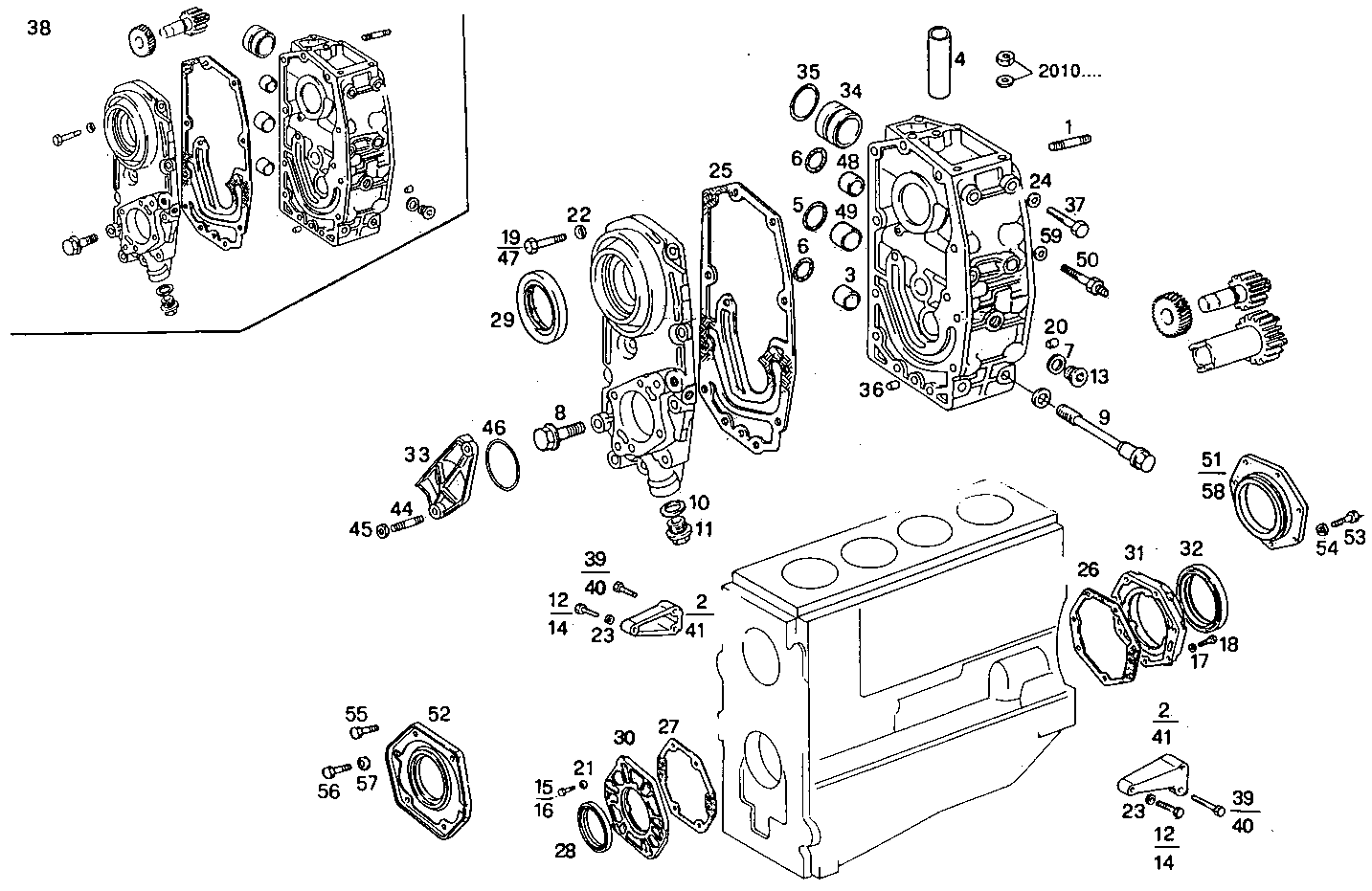

INSERTED BOX ASSEM.

Assembly ID: 0430.109

INSERTED BOX ASSEM.

Parts

# Part number Description Note Quantity
1 4600631 STUD 3
2 4705513 BRACKET 2
3 4710945 BUSH 1
4 4710958 GUIDE BUSH 1
5 4755220 O-RING 1
6 4755221 O-RING 2
7 4858608 SEAL GASKET 2
8 7300084 SCREW 1
9 7302294 SCREW 4
10 10263360 SEAL GASKET 1
11 4827588 PLUG 1
12 11288024 HEXAGON BOLT 2
13 4731591 THREADED PLUG 2
14 15971821 SCREW 4
15 16585924 HEXAGON BOLT 3
16 16689134 SOCKET-HEAD SCREW 3
17 11198074 SPRING WASHER 7
18 16690434 CYLIND-HEAD SCREW 7
19 16605624 HEXAGON BOLT 6
20 4732685 DOWEL PIN 1
21 11197774 WASHER 3
22 17089474 SPRING WASHER 11
23 11198374 SPRING WASHER 6
24 10519621 WASHER 2
25 98421263 FLAT ENGINE GASKET 1
26 98421265 FLAT ENGINE GASKET 1
27 98421275 FLAT ENGINE GASKET 1
28 98454051 SHAFT SEAL 1
29 98454045 SHAFT SEAL 1
30 98453818 COVER 1
31 98453821 COVER 1
32 98454055 SHAFT SEAL 1
33 98460651 PTO COVER 1
34 98461177 BUSH 1
35 98461178 O-RING 1
36 98465476 DOWEL PIN 3
37 98468138 HEXAGON BOLT 2
38 99446913 BEARING HOUSING 1
39 16289124 HEXAGON BOLT 2
40 16289624 HEXAGON BOLT 4
41 98473354 BRACKET 2
44 13449521 STUD 2
45 14059411 HEXAGON NUT 2
46 17283880 O-RING 1
47 16606024 SCREW 4
48 4279407 BUSH 1
49 4279406 BUSH 1
50 4741749 SCREW 2
51 500301734 REAR C.CASE COVER 1
52 98461673 COVER 1
53 16707034 CYLIND-HEAD SCREW 7
54 17089574 WASHER 7
55 16585924 HEXAGON BOLT 3
56 16689134 SOCKET-HEAD SCREW 3
57 17088474 WASHER 6
58 99447458 COVER 1
59 17094914 WASHER 2

Applies to engines

Engine Family
8141Si27.02 8141Si27 view
