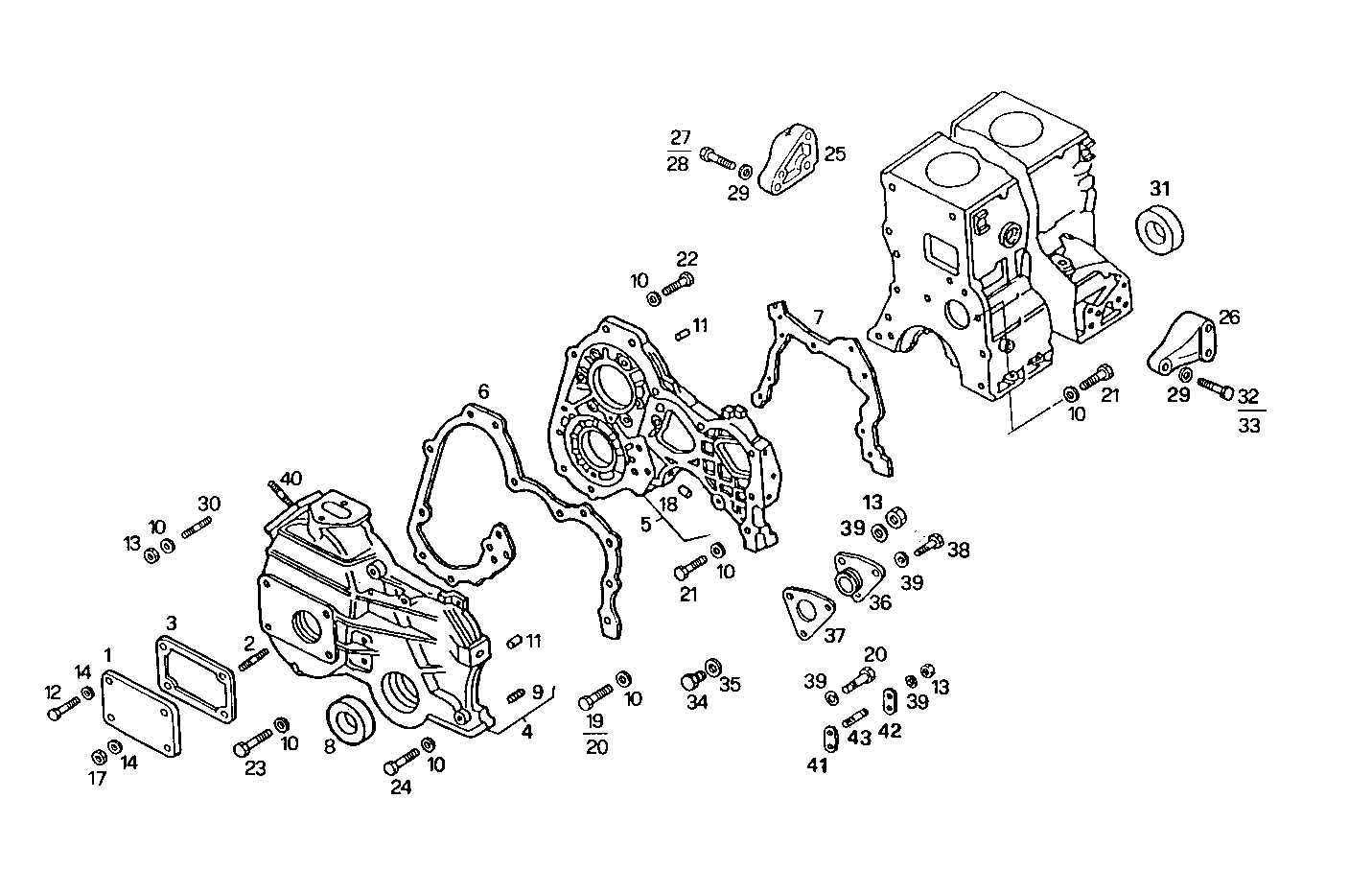

INSERTED BOX ASSEM.

Assembly ID: 0430.128

INSERTED BOX ASSEM.

Parts

# Part number Description Note Quantity
1 564530 COVER 1
2 4615276 STUD 1
3 4850986 FLAT ENGINE GASKET 1
4 4800486 FRONT C.CASE COVER 1
5 500321670 TIMINGGEAR HOUSIN 1
6 98424045 FLAT ENGINE GASKET 1
7 98424046 FLAT ENGINE GASKET 1
8 99469265 SHAFT SEAL 1
9 13526170 THREADED INSERT 3
10 17094914 WASHER 14
11 10839610 DOWEL PIN 2
12 16603724 HEXAGON BOLT 3
13 17037931 HEXAGON NUT 3
14 17088474 WASHER 4
17 17037821 HEXAGON NUT 1
18 4605220 OIL NOZZLE 1
19 16043521 SCREW 2
20 16605734 HEXAGON BOLT 2
21 16605824 HEXAGON BOLT 6
22 16606124 HEXAGON BOLT 1
23 16044921 HEXAGON BOLT 3
24 16606524 HEXAGON BOLT 2
25 4853971 BRACKET 1
26 4852643 BRACKET 1
27 16611224 HEXAGON BOLT 1
28 16610724 SCREW 2
29 17095304 WASHER 6
30 16746824 STUD 1
31 99457401 SHAFT SEAL 1
32 16610924 HEXAGON BOLT 2
33 15540821 HEXAGON BOLT 1
34 4602520 PLUG 1
35 10297760 SEAL GASKET 1
36 4619671 SUPPORT 1
37 4851004 FLAT ENGINE GASKET 1
38 15213824 HEXAGON BOLT 1
39 17089474 SPRING WASHER 4
40 13516821 STUD 2
41 98424383 GASKET 1
42 98424384 PLATE 2
43 16747424 STUD 1

Applies to engines

Engine Family
GE8061i06.05A905 GE8061i06 view
GE8061Si06.05A955 GE8061Si06 view
GE8061Si06.05A956 GE8061Si06 view
GE8061Si07.05A955 GE8061Si07 view
GE8061Si07.05A956 GE8061Si07 view
GE8061i06.05A955 GE8061i06 view
GS8061i06.05A612 GS8061i06 view
GS8061i06.05A614 GS8061i06 view
GS8061Si06.05A662 GS8061Si06 view
GS8061Si06.05A664 GS8061Si06 view
GS8061Si07.05A662 GS8061Si07 view
GS8061Si07.05A664 GS8061Si07 view
8065U06.05 8065U06 view
8061i06.05 8061i06 view
8061i06.05A520 8061i06 view
8061Si06.05 8061Si06 view
8061Si06.05A580 8061Si06 view
8061Si06.05A552 8061Si06 view
8061Si06.05A582 8061Si06 view
8061Si07.05 8061Si07 view
8061Si07.05A580 8061Si07 view
8061Si07.05A552 8061Si07 view
8061Si07.05A582 8061Si07 view
8061Si06.05A550 8061Si06 view
8061Si06.05A580 8061Si06 view
8061Si07.05A550 8061Si07 view
8061Si07.05A580 8061Si07 view
8061i06.05A500 8061i06 view
8061i06.05A520 8061i06 view
8061Si06.05A552 8061Si06 view
8061Si06.05A582 8061Si06 view
8061Si07.05A552 8061Si07 view
8061Si07.05A582 8061Si07 view
8065U06.05A580 8065U06 view
8061i06.05A501 8061i06 view
8061i06.05A550 8061i06 view
8061i06.05A521 8061i06 view
GE8061i06.05N900 GE8061i06 view
GE8061i06.05N920 GE8061i06 view
GE8061i06.05R900 GE8061i06 view
GE8061i06.05R920 GE8061i06 view
GE8061Si06.05N950 GE8061Si06 view
GE8061Si06.05N970 GE8061Si06 view
GE8061Si06.05R950 GE8061Si06 view
GE8061Si06.05R970 GE8061Si06 view
GE8061Si07.05N950 GE8061Si07 view
GE8061Si07.05N970 GE8061Si07 view
GE8061Si07.05R950 GE8061Si07 view
GE8061Si07.05R970 GE8061Si07 view
GE8061Si06.05A71M GE8061Si06 view
8061SI07.05A556 8061Si07 view
