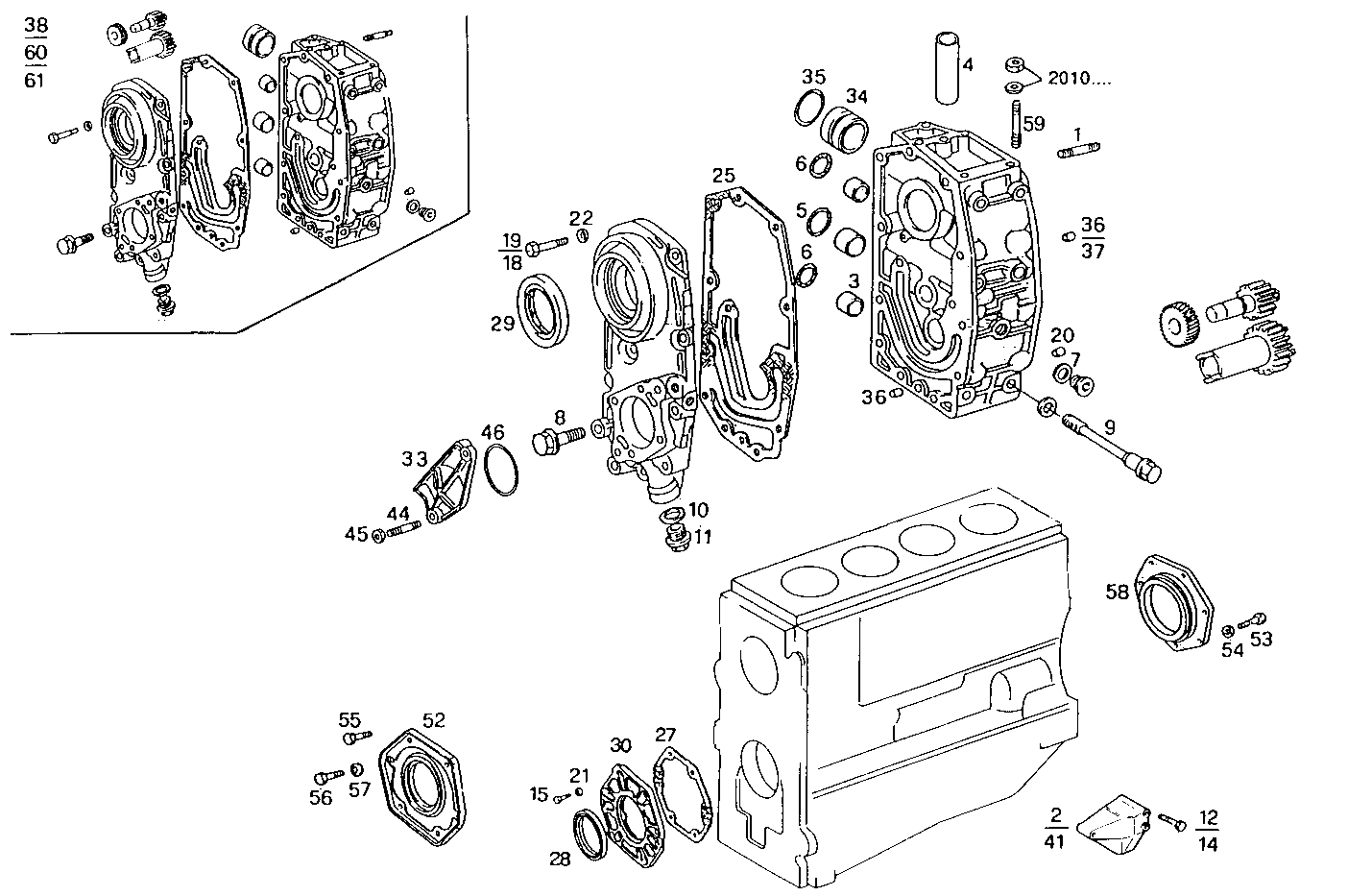

INSERTED BOX ASSEM.

Assembly ID: 0430.132

INSERTED BOX ASSEM.

Parts

# Part number Description Note Quantity
1 4600631 STUD 3
2 99452519 BRACKET 1
3 4710945 BUSH 1
4 4710958 GUIDE BUSH 1
5 4755220 O-RING 1
6 4755221 O-RING 2
7 4658608 GASKET 2
8 7300084 SCREW 1
9 99458260 SCREW 4
10 10263360 SEAL GASKET 1
11 10305071 LOCK PLUG 1
12 16289124 HEXAGON BOLT 2
14 16289624 HEXAGON BOLT 4
15 16603824 SCREW 3
18 16606024 SCREW 4
19 16605624 HEXAGON BOLT 6
20 4732685 DOWEL PIN 1
21 11197774 WASHER 6
22 17089474 SPRING WASHER 11
25 98421263 FLAT ENGINE GASKET 1
27 98421275 FLAT ENGINE GASKET 1
28 98454051 SHAFT SEAL 1
29 98454045 SHAFT SEAL 1
30 98453818 COVER 1
33 99448956 PTO COVER 1
34 98461177 BUSH 1
35 98461178 O-RING 1
36 98465476 DOWEL PIN 3
37 500325603 DOWEL PIN 1
38 99446913 BEARING HOUSING 1
41 99452520 BRACKET 1
44 13449521 STUD 2
45 14059411 HEXAGON NUT 2
46 17283880 O-RING 1
52 98461673 COVER 1
53 16690424 CYLIND-HEAD SCREW 7
54 17089574 WASHER 7
55 16585924 HEXAGON BOLT 3
56 16689134 SOCKET-HEAD SCREW 3
57 17088474 WASHER 3
58 99447458 COVER 1
59 13544121 STUD 1
60 500354822 BEARING HOUSING 1
61 500364647 BEARING HOUSING 1

Applies to engines

Engine Family
8140SC23.00 8140SC23 view
8140SC23.00A002 8140SC23 view
8140SRC20.10 8140SRC20 view
8140C00.00 8140C00 view
8140SC00.10 8140SC00 view
8140SC23.00A005 8140SC23 view
8140C00.00A005 8140C00 view
8140SC23.00A010 8140SC23 view
8141C67.03A005 8141C67 view
8140SRC20.30 8140SRC20 view
8140SC00.20 8140SC00 view
8140.43.3931 8140.43 view
