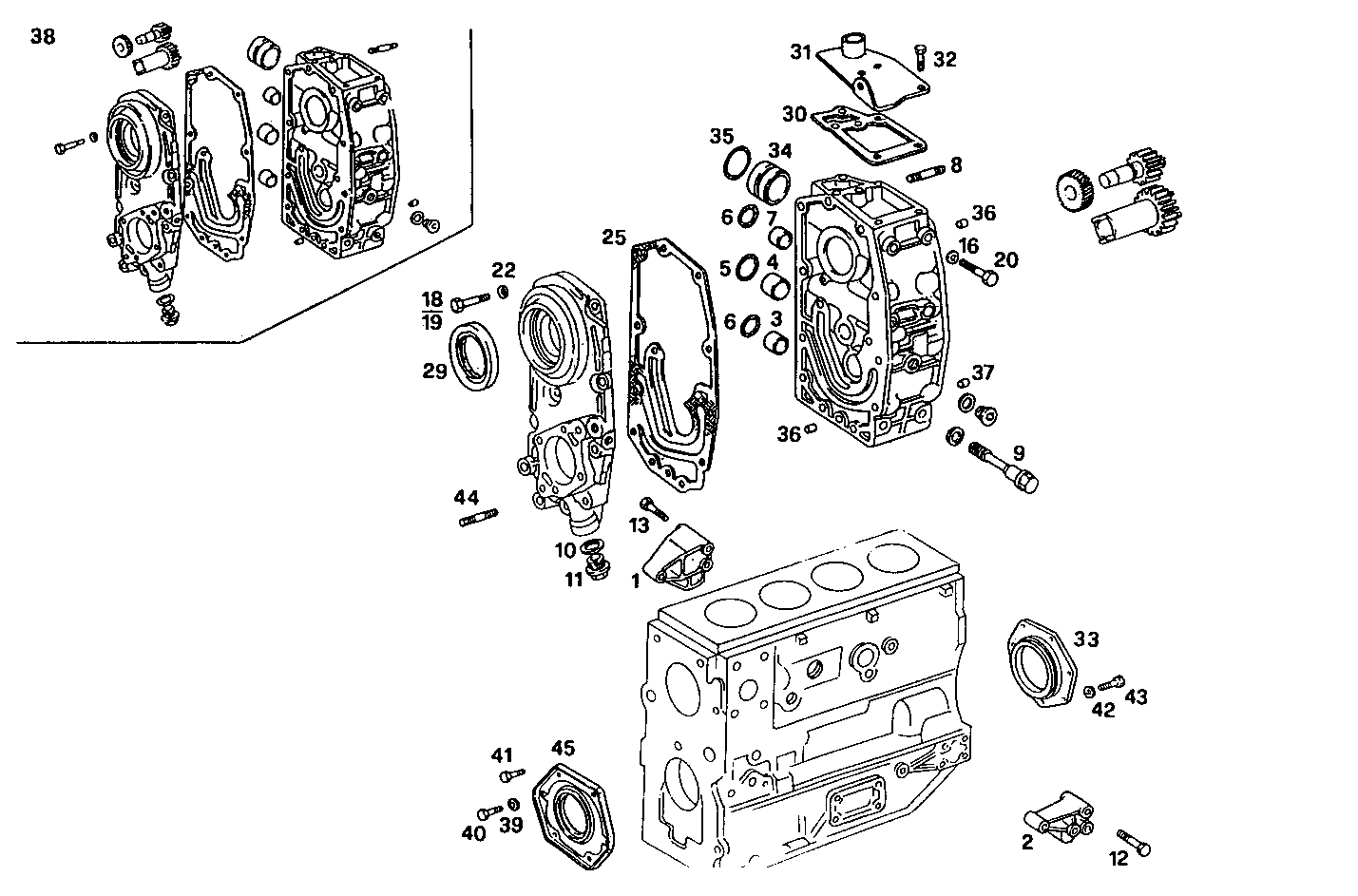

| 1 |
500344426
|
BRACKET
|
|
1
|
|
| 2 |
99452520
|
BRACKET
|
|
1
|
|
| 3 |
4710945
|
BUSH
|
|
1
|
|
| 4 |
4279406
|
BUSH
|
|
1
|
|
| 5 |
17282181
|
O-RING
|
|
1
|
|
| 6 |
500306196
|
O-RING
|
|
2
|
|
| 7 |
4279407
|
BUSH
|
|
1
|
|
| 8 |
16746824
|
STUD
|
|
3
|
|
| 9 |
99458260
|
SCREW
|
|
2
|
|
| 10 |
10263360
|
SEAL GASKET
|
|
1
|
|
| 11 |
4827588
|
PLUG
|
|
1
|
|
| 12 |
16289124
|
HEXAGON BOLT
|
|
2
|
|
|
16289134 |
HEXAGON BOLT |
|
2 |
|
| 13 |
16289624
|
HEXAGON BOLT
|
|
4
|
|
| 16 |
17094924
|
WASHER
|
|
2
|
|
| 18 |
16606024
|
SCREW
|
|
4
|
|
| 19 |
16605624
|
HEXAGON BOLT
|
|
6
|
|
|
16605635 |
HEXAGON BOLT |
|
6 |
|
| 20 |
98468138
|
HEXAGON BOLT
|
|
2
|
|
| 22 |
17089474
|
SPRING WASHER
|
|
11
|
|
| 25 |
98421263
|
FLAT ENGINE GASKET
|
|
1
|
|
|
504133583 |
FLAT ENGINE GASKET |
|
1 |
|
| 29 |
98454045
|
SHAFT SEAL
|
|
1
|
|
| 30 |
98421276
|
FLAT ENGINE GASKET
|
|
1
|
|
|
500349423 |
FLAT ENGINE GASKET |
|
1 |
|
| 31 |
500324894
|
HOUSING COVER
|
|
1
|
|
| 32 |
16586324
|
HEXAGON BOLT
|
|
4
|
|
|
16673635 |
HEXAGON BOLT |
|
4 |
|
| 33 |
99468744
|
SHAFT SEAL
|
|
1
|
|
|
504086314 |
SHAFT SEAL |
|
1 |
|
| 34 |
98461177
|
BUSH
|
|
1
|
|
| 35 |
98461178
|
O-RING
|
|
1
|
|
| 36 |
98465476
|
DOWEL PIN
|
|
3
|
|
| 37 |
500325603
|
DOWEL PIN
|
|
1
|
|
| 38 |
500365645
|
BEARING HOUSING
|
|
1
|
|
|
500368070 |
BEARING HOUSING |
|
1 |
|
|
504027985 |
BEARING HOUSING |
|
1 |
|
| 39 |
17088474
|
WASHER
|
|
3
|
|
| 40 |
16689134
|
SOCKET-HEAD SCREW
|
|
3
|
|
| 41 |
16585924
|
HEXAGON BOLT
|
|
3
|
|
| 42 |
17089574
|
WASHER
|
|
7
|
|
|
17089575 |
WASHER |
|
7 |
|
| 43 |
16690424
|
CYLIND-HEAD SCREW
|
|
7
|
|
| 44 |
13449524
|
STUD
|
|
2
|
|
| 45 |
500315684
|
SHAFT SEAL
|
|
1
|
|
