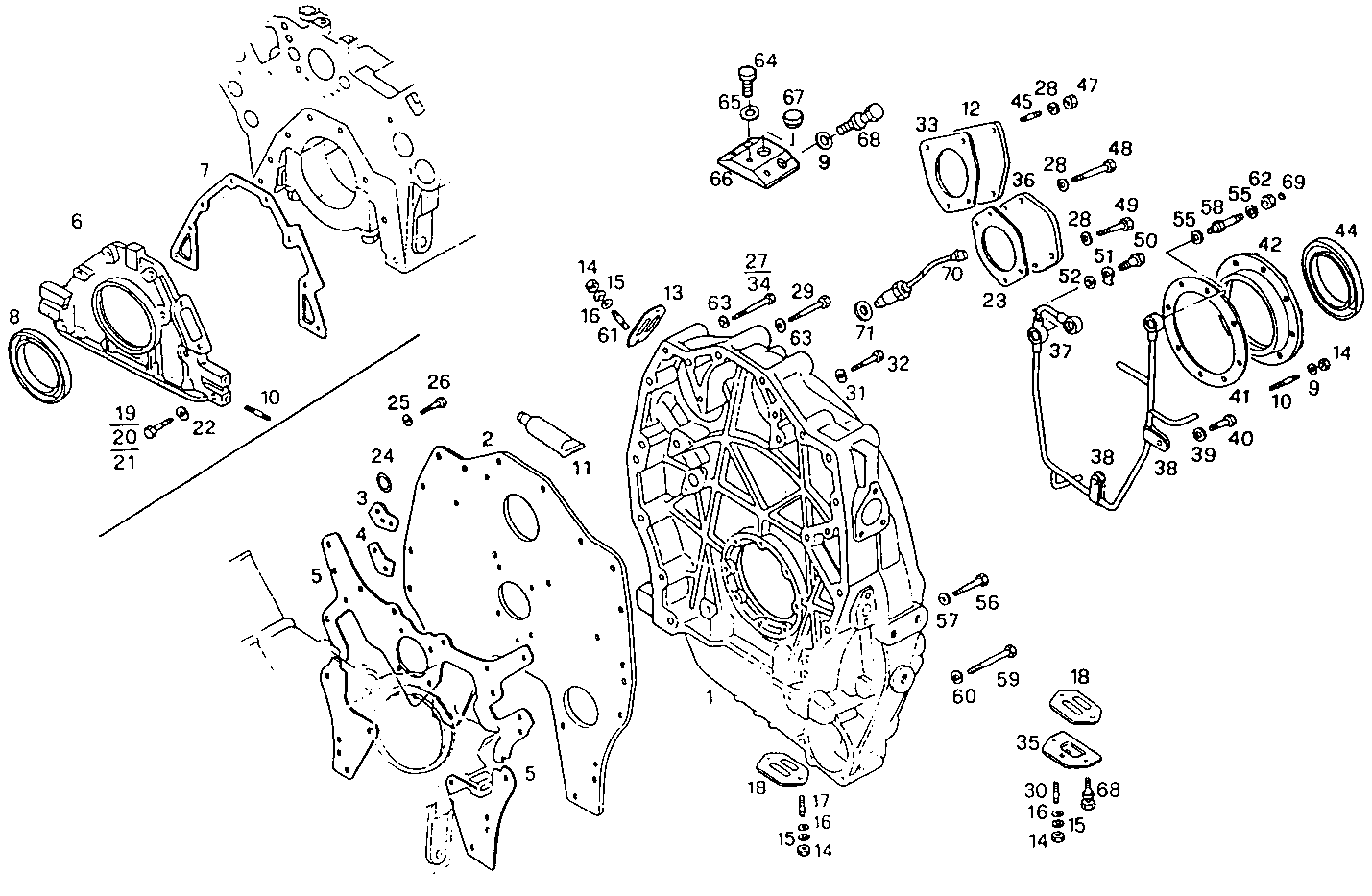

INSERTED BOX ASSEM.

Assembly ID: 0430.185

INSERTED BOX ASSEM.

Parts

# Part number Description Note Quantity
1 500313061 REAR C.CASE COVER 1
2 4831136 PLATE 1
3 4831139 PLATE 1
4 4831138 PLATE 1
5 4804903 FLAT ENGINE GASKET 1
6 99440758 FRONT C.CASE COVER 1
7 4863506 FLAT ENGINE GASKET 1
8 98499175 SHAFT SEAL 1
9 17094911 WASHER 3
10 13543121 STUD 8
11 1905685 ADHESIVE/STICKER 1
12 4695673 COVER 1
13 4695921 COVER 1
14 17037931 HEXAGON NUT 12
15 17089574 WASHER 4
16 17094914 WASHER 15
17 13516521 STUD 2
18 4706083 COVER 2
19 16606024 SCREW 1
20 16605924 SCREW 1
21 16605824 HEXAGON BOLT 6
22 17094914 WASHER 8
23 4863534 GASKET 1
24 14457181 O-RING 1
25 17090274 WASHER 7
26 15970730 HEXAGON BOLT 7
27 15972521 HEXAGON BOLT 1
28 17090274 WASHER 4
29 15972721 HEXAGON BOLT 3
30 13543221 STUD 2
31 17095314 WASHER 4
32 15541630 HEXAGON BOLT 4
33 4863515 FLAT ENGINE GASKET 1
34 15971821 SCREW 1
35 99447987 CONNECTING PLATE 1
36 4729849 COVER 1
37 4687527 OIL LINE 1
38 852410 FASTENING BRACKET 2
39 13550301 WASHER 2
40 16042921 SCREW 2
41 4863494 FLAT ENGINE GASKET 1
42 4729209 SUPPORT 1
44 98499177 SHAFT SEAL 1
45 13546721 STUD 2
47 17038221 HEXAGON NUT 2
48 15970021 HEXAGON BOLT 1
49 15972321 HEXAGON BOLT 3
50 4503811 SCREW CONNECTOR 1
51 852409 LOCKING PLATE 1
52 10260160 SEAL GASKET 2
55 10298360 SEAL GASKET 3
56 15543021 HEXAGON BOLT 1
57 12646921 WASHER 1
58 4677753 SCREW CONNECTOR 1
59 15978030 HEXAGON BOLT 10
60 4604279 SPRING WASHER 10
61 13517221 STUD 3
62 16979731 NUT 1
63 11198479 SPRING WASHER 5
64 16605624 HEXAGON BOLT 1
65 17089574 WASHER 2
66 4862376 COVER 1
67 17883387 RUBBER PLUG 1
68 61315661 HEXAGON BOLT 3
69 17277681 O-RING 1
70 4861291 TRANSMITTER 2
71 4860432 RING 2
