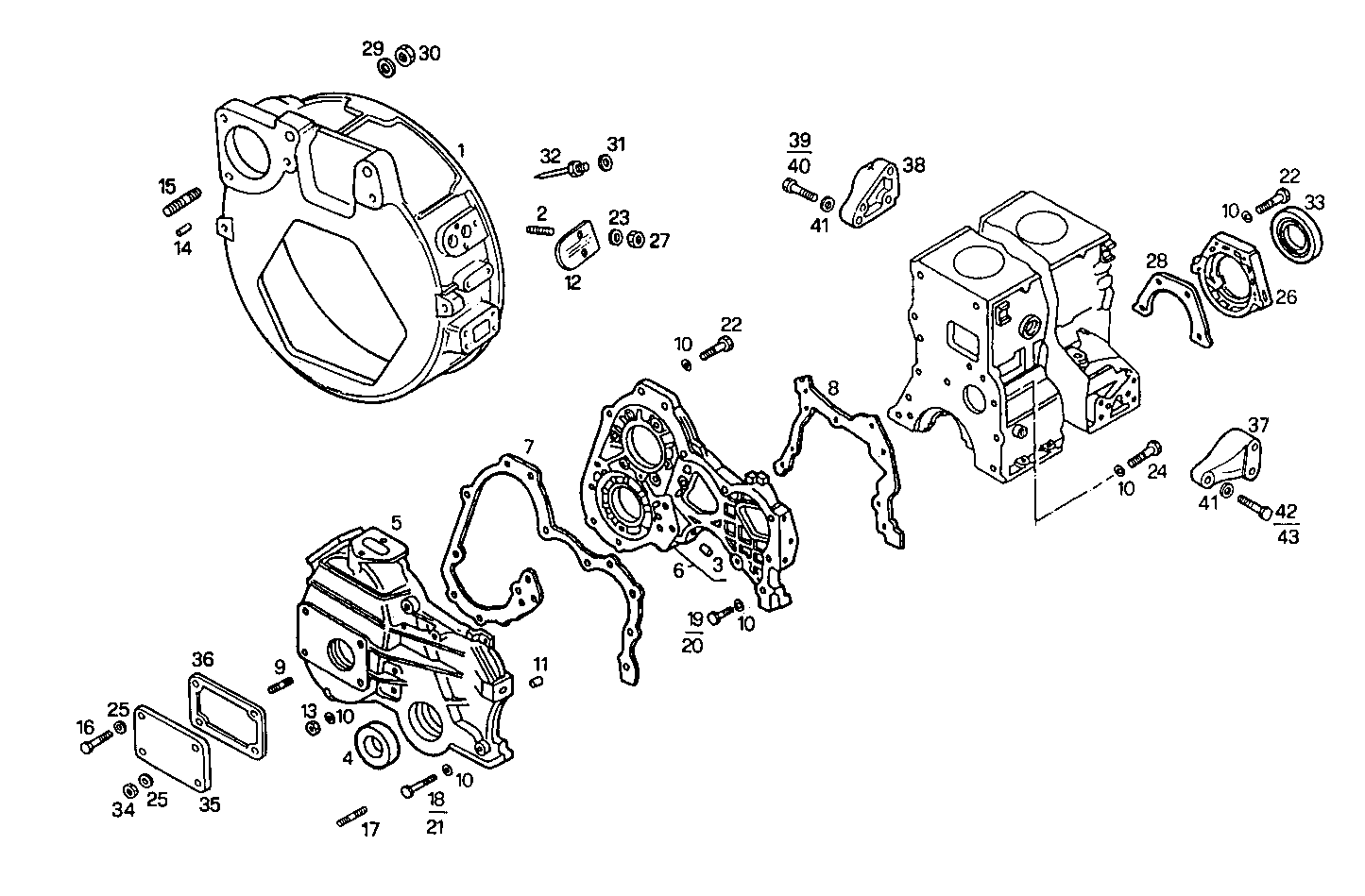

| 1 |
8111654
|
FLYWHEEL HOUSING
|
|
1
|
|
| 2 |
16743424
|
STUD
|
|
2
|
|
| 3 |
4605220
|
OIL NOZZLE
|
|
1
|
|
| 4 |
8020323
|
OIL RETAINER
|
|
1
|
|
| 5 |
98413853
|
FRONT C.CASE COVER
|
|
1
|
|
| 6 |
500321670
|
TIMINGGEAR HOUSIN
|
|
1
|
|
| 7 |
98424045
|
FLAT ENGINE GASKET
|
|
1
|
|
| 8 |
98424046
|
FLAT ENGINE GASKET
|
|
1
|
|
| 9 |
4615276
|
STUD
|
|
1
|
|
| 10 |
17094914
|
WASHER
|
|
20
|
|
| 11 |
17275410
|
DOWEL PIN
|
|
2
|
|
| 12 |
4540660
|
COVER
|
|
1
|
|
| 13 |
17037931
|
HEXAGON NUT
|
|
1
|
|
| 14 |
10839710
|
DOWEL PIN
|
|
2
|
|
| 15 |
16736024
|
STUD
|
|
2
|
|
| 16 |
16603734
|
HEXAGON BOLT
|
|
3
|
|
| 17 |
16729324
|
STUD
|
|
2
|
|
| 18 |
16044924
|
SCREW
|
|
3
|
|
| 19 |
16605734
|
HEXAGON BOLT
|
|
1
|
|
| 20 |
16043524
|
SCREW
|
|
2
|
|
| 21 |
16606124
|
HEXAGON BOLT
|
|
1
|
|
| 22 |
16605824
|
HEXAGON BOLT
|
|
10
|
|
| 23 |
17494634
|
SPRING WASHER
|
|
2
|
|
| 24 |
16606524
|
HEXAGON BOLT
|
|
1
|
|
| 25 |
17798174
|
SPRING WASHER
|
|
4
|
|
| 26 |
98489586
|
REAR C.CASE COVER
|
|
1
|
|
| 27 |
17037770
|
NUT
|
|
2
|
|
| 28 |
4849994
|
FLAT ENGINE GASKET
|
|
1
|
|
| 29 |
17091974
|
SPRING WASHER
|
|
4
|
|
| 30 |
17038721
|
NUT
|
|
4
|
|
|
17038725 |
NUT |
|
4 |
|
| 31 |
17094724
|
WASHER
|
|
1
|
|
| 32 |
4851847
|
SCREW
|
|
1
|
|
| 33 |
99457401
|
SHAFT SEAL
|
|
1
|
|
| 34 |
17037821
|
HEXAGON NUT
|
|
1
|
|
| 35 |
564530
|
COVER
|
|
1
|
|
| 36 |
4850986
|
FLAT ENGINE GASKET
|
|
1
|
|
| 37 |
4852643
|
BRACKET
|
|
1
|
|
| 38 |
4853971
|
BRACKET
|
|
1
|
|
| 39 |
16611224
|
HEXAGON BOLT
|
|
1
|
|
| 40 |
16610724
|
SCREW
|
|
2
|
|
| 41 |
17095304
|
WASHER
|
|
6
|
|
| 42 |
16610924
|
HEXAGON BOLT
|
|
2
|
|
| 43 |
15540834
|
SCREW
|
|
1
|
|
