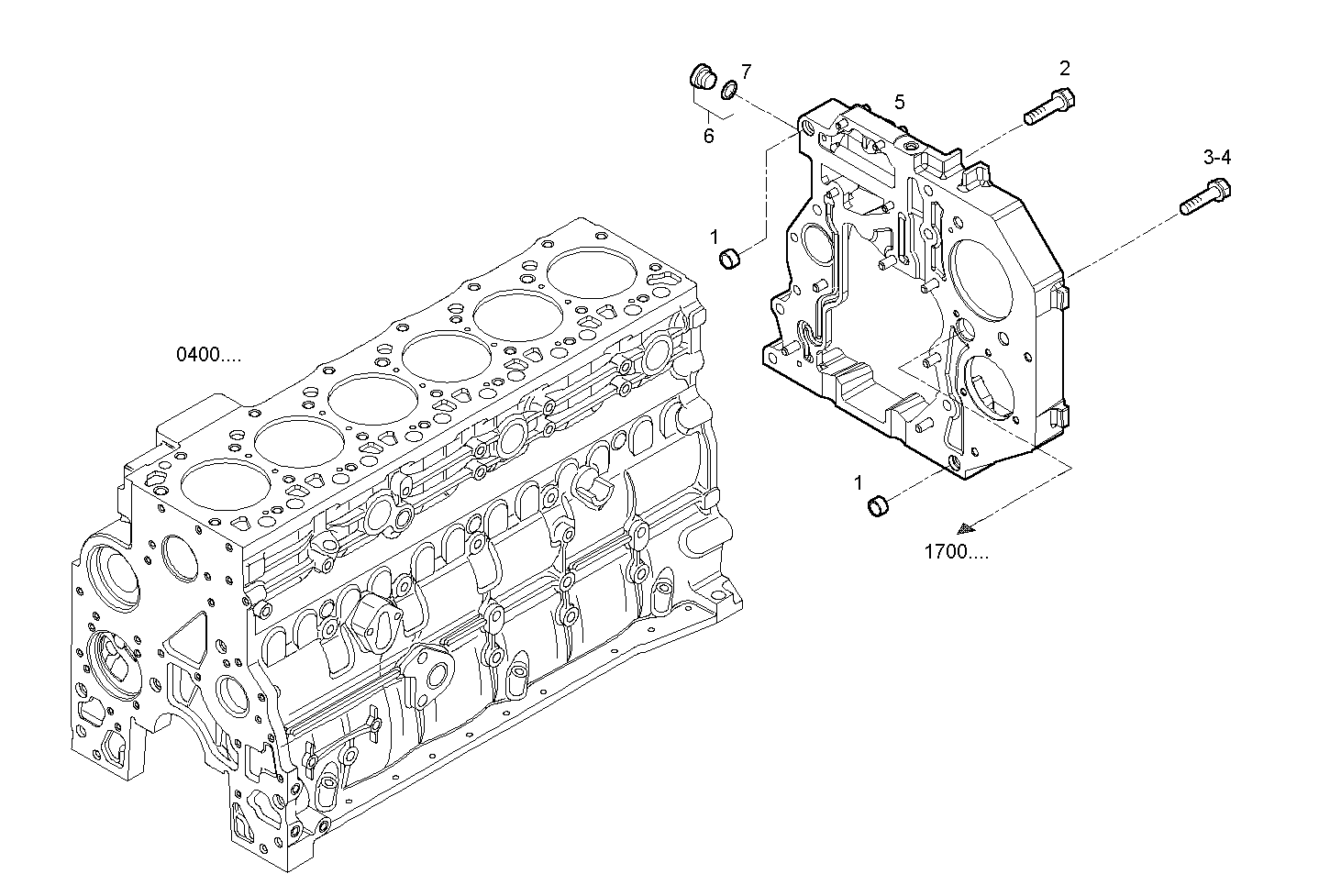

INSERTED BOX ASSEM.
Assembly ID: 0430.216
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4899026 | DOWEL PIN | 2 | ||
| 2 | 4899091 | HEXAGON BOLT | 4 | ||
| 3 | 4899093 | HEXAGON BOLT | 5 | ||
| 4 | 4899073 | HEXAGON BOLT | 1 | ||
| 5 | 4899384 | TIMINGGEAR HOUSIN | 1 | ||
| 6 | 4899009 | THREADED PLUG | 1 | ||
| 7 | 4899072 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4AE0684F*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0684J*D | NEF 6 electron. - TIER 2 | view |
