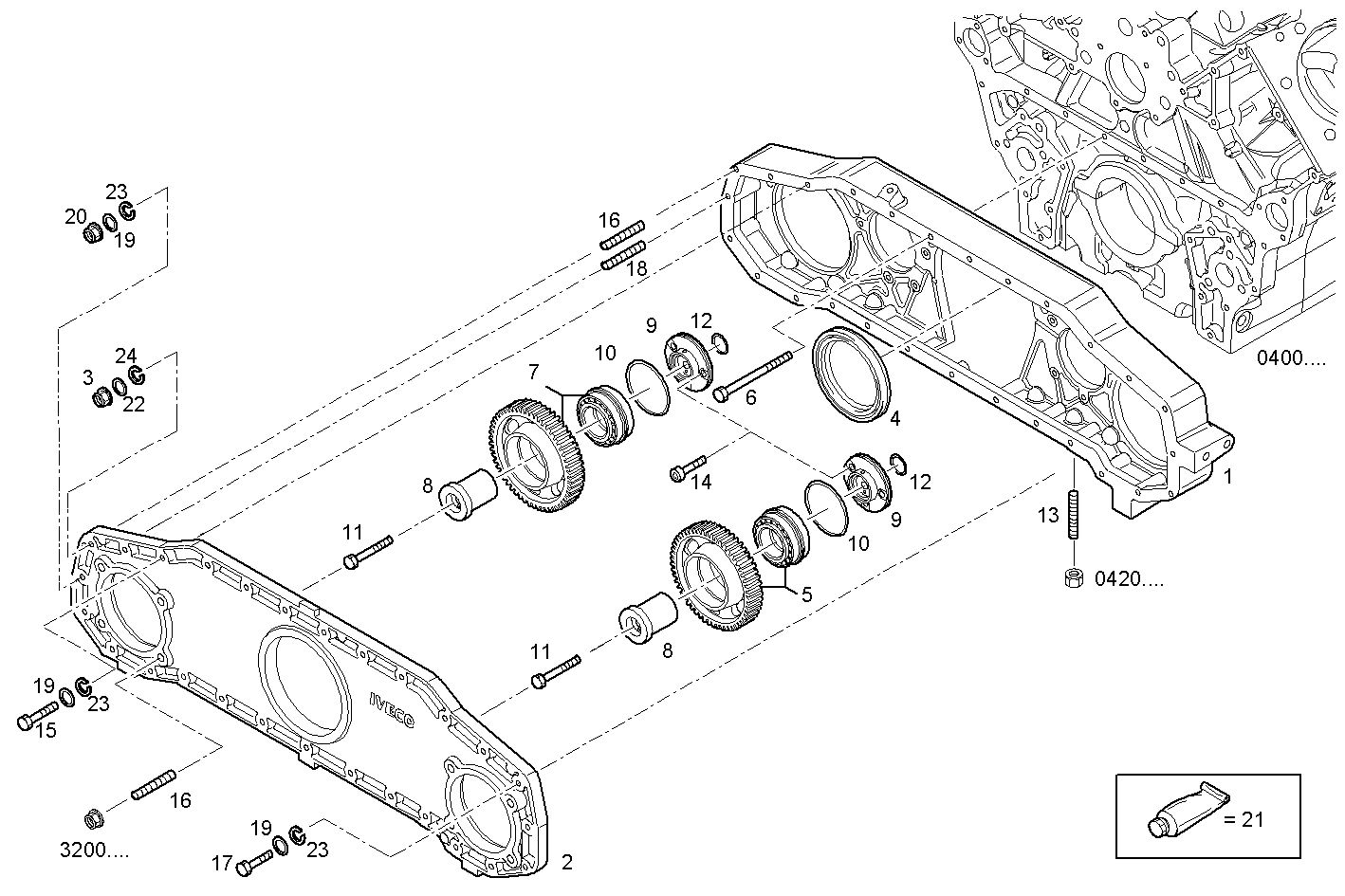

| 1 |
504112486
|
TIMINGGEAR HOUSIN
|
|
1
|
|
| 2 |
504310549
|
FRONT C.CASE COVER
|
|
1
|
|
| 3 |
17042635
|
HEXAGON NUT
|
|
6
|
|
| 4 |
504036096
|
SHAFT SEAL
|
|
1
|
|
| 5 |
504041130
|
GEAR
|
|
1
|
|
| 6 |
16626734
|
HEXAGON BOLT
|
|
10
|
|
| 7 |
504041129
|
GEAR
|
|
1
|
|
| 8 |
504042359
|
SHAFT
|
|
2
|
|
| 9 |
504042358
|
SPACING BAR
|
|
2
|
|
| 10 |
17291081
|
O-RING
|
|
2
|
|
| 11 |
16678934
|
HEXAGON BOLT
|
|
2
|
|
| 12 |
17282681
|
O-RING
|
|
2
|
|
| 13 |
16731324
|
STUD
|
|
6
|
|
| 14 |
16692134
|
CYLIND-HEAD SCREW
|
|
6
|
|
| 15 |
16625734
|
HEXAGON BOLT
|
|
3
|
|
| 16 |
16748734
|
STUD
|
|
14
|
|
| 17 |
16673735
|
HEXAGON BOLT
|
|
10
|
|
| 18 |
16746835
|
STUD
|
|
8
|
|
| 19 |
16665514
|
WASHER
|
|
21
|
|
| 20 |
17042531
|
HEXAGON NUT
|
|
8
|
|
| 21 |
2992504
|
ADHESIVE/STICKER
|
|
1
|
|
| 22 |
16665614
|
WASHER
|
|
6
|
|
| 23 |
17089474
|
SPRING WASHER
|
|
11
|
|
| 24 |
17090074
|
SPRING WASHER
|
|
6
|
|
