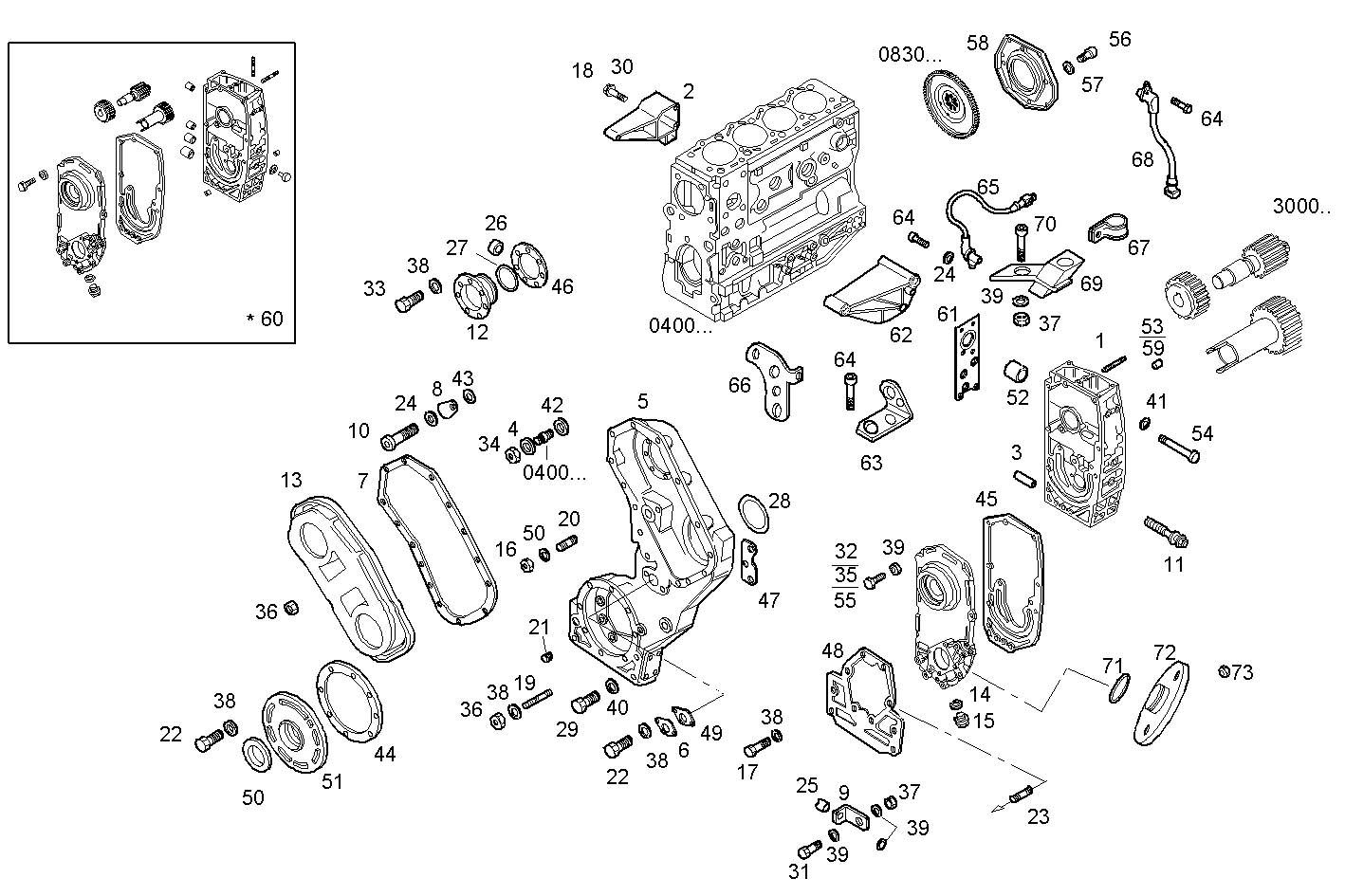

INSERTED BOX ASSEM.

Assembly ID: 0430.233-01

INSERTED BOX ASSEM.

Parts

# Part number Description Note Quantity
1 500346886 STUD 3
2 500346555 BRACKET 1
3 4710945 BUSH 1
4 4858607 WASHER 1
5 500357112 TIMINGGEAR HOUSIN 1
6 7301015 COVER 1
7 500357916 FLAT ENGINE GASKET 1
8 99485700 PLASTIC PLUG 1
9 7301026 FASTENING BRACKET 1
10 16689124 CYLIND-HEAD SCREW 1
11 99458260 SCREW 4
12 99467535 FLANGE 1
13 500359433 COVER 1
14 10263360 SEAL GASKET 1
15 10305071 LOCK PLUG 1
16 16979731 NUT 1
17 16603924 HEXAGON BOLT 6
18 16289134 HEXAGON BOLT 2
19 11500021 STUD 15
20 11500821 STUD 2
21 17849770 THREADED INSERT 3
22 16603734 HEXAGON BOLT 10
23 13449524 STUD 2
24 17094724 WASHER 1
25 17816314 SPACING BAR 1
26 14328101 LOCK PLUG 2
27 17290281 O-RING 1
28 14466081 O-RING 1
29 15971321 HEXAGON BOLT 4
30 16289624 HEXAGON BOLT 2
31 16043324 HEXAGON BOLT 1
32 16605934 HEXAGON BOLT 1
33 10902124 SCREW 8
34 16980131 HEXAGON NUT 1
35 16605624 HEXAGON BOLT 6
36 17044625 HEXAGON NUT 14
37 17037925 HEXAGON NUT 4
38 17088474 WASHER 26
39 17089474 SPRING WASHER 16
40 17090274 WASHER 5
41 17094914 WASHER 1
42 17281581 O-RING 1
43 17282281 O-RING 1
44 98421262 FLAT ENGINE GASKET 1
45 504032241 FLAT ENGINE GASKET 1
45 98421263 FLAT ENGINE GASKET 1
46 98421270 FLAT ENGINE GASKET 1
47 98421271 FLAT ENGINE GASKET 1
48 98421284 FLAT ENGINE GASKET 1
49 98421292 FLAT ENGINE GASKET 1
50 98454039 SHAFT SEAL 1
51 99468007 COVER 1
52 98461177 BUSH 1
53 98465476 DOWEL PIN 3
54 98468138 HEXAGON BOLT 1
55 16606024 SCREW 4
56 16707034 CYLIND-HEAD SCREW 7
57 17089574 WASHER 7
58 504059361 SHAFT SEAL 1
59 500325603 DOWEL PIN 1
60 504092048 BEARING HOUSING 1
61 500368070 FLAT ENGINE GASKET 1
62 500344426 BRACKET 1
63 500344409 FASTENING BRACKET 1
64 18137825 HEXAGON BOLT 1
65 500343018 ELECTRON.TRANSMITT 1
66 98482778 FASTENING BRACKET 1
67 17314590 RETAINER 1
68 99450797 SENSOR 1
69 99485475 RETAINER 1
70 16689224 SOCKET-HEAD SCREW 1
71 17283881 O-RING 1
72 4836806 PTO COVER 1
73 14059411 HEXAGON NUT 2

Applies to engines

Engine Family
8140.43F.3800 8140.43 view
8140SRC31.35 - 1C 8140SRC31 view
8140SRC31.35A001- 1D 8140SRC31 view
8140SRC31.35L002- 1D 8140SRC31 view
