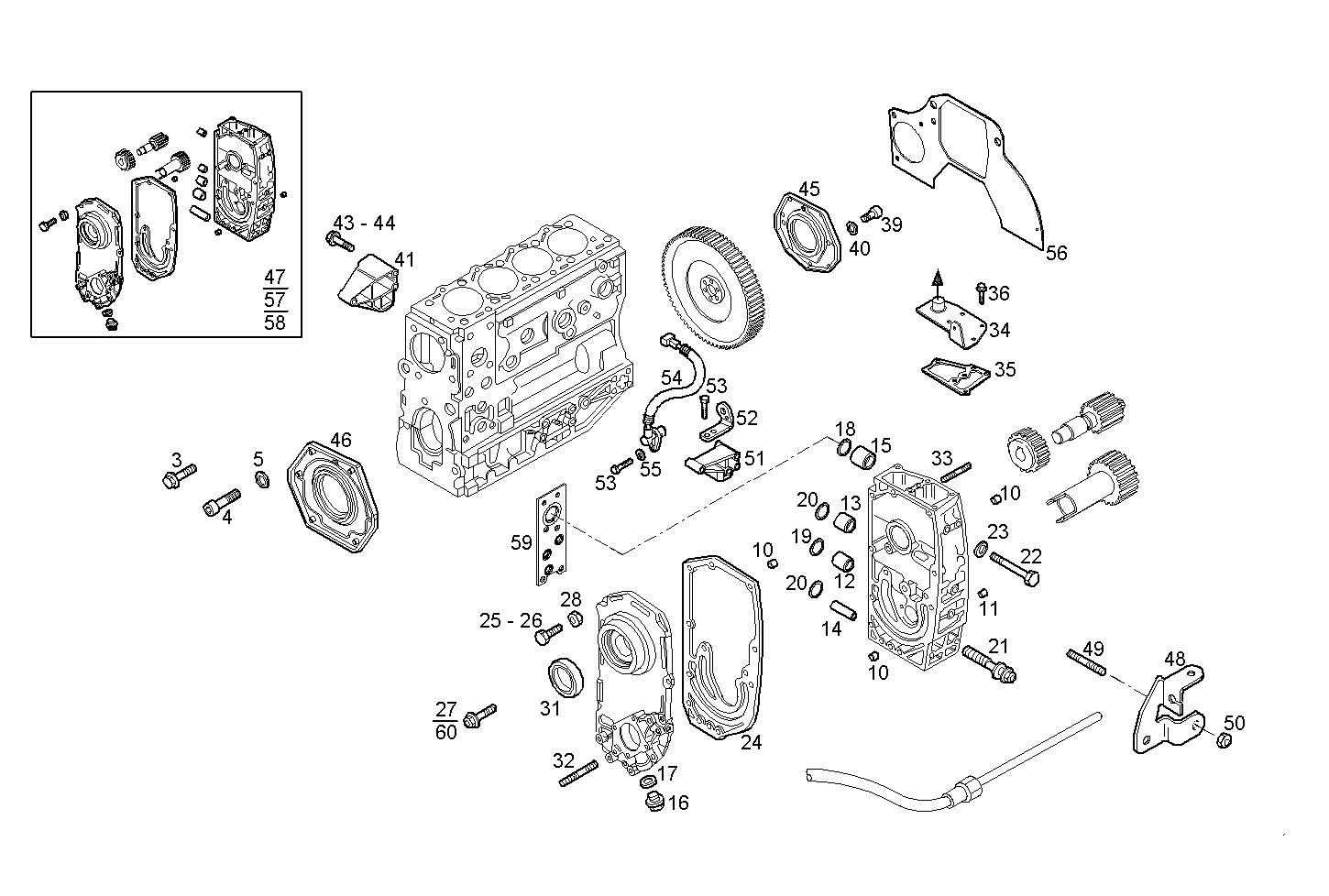

INSERTED BOX ASSEM.

Assembly ID: 0430.237

INSERTED BOX ASSEM.

Parts

# Part number Description Note Quantity
3 16585924 HEXAGON BOLT 3
4 16689134 SOCKET-HEAD SCREW 3
5 17088474 WASHER 3
10 98465476 DOWEL PIN 3
11 500325603 DOWEL PIN 1
12 4279406 BUSH 1
13 4279407 BUSH 1
14 4710945 BUSH 1
15 98461177 BUSH 1
16 4827588 PLUG 1
17 10263360 SEAL GASKET 1
18 98461178 O-RING 1
19 17282181 O-RING 1
20 500306196 O-RING 2
21 99458260 SCREW 4
22 98468138 HEXAGON BOLT 2
23 17094924 WASHER 2
24 98421263 FLAT ENGINE GASKET 1
25 16605624 HEXAGON BOLT 6
26 16606034 HEXAGON BOLT 4
27 500324560 SCREW 1
28 17089474 SPRING WASHER 11
31 98454045 SHAFT SEAL 1
32 13449524 STUD 2
33 16746824 STUD 3
34 500324894 HOUSING COVER 1
35 98421276 FLAT ENGINE GASKET 1
36 16586324 HEXAGON BOLT 4
39 16690424 CYLIND-HEAD SCREW 7
40 17089574 WASHER 7
41 500346555 BRACKET 1
43 16289124 HEXAGON BOLT 2
44 16289624 HEXAGON BOLT 4
45 99468744 SHAFT SEAL 1
46 500315684 SHAFT SEAL 1
47 500365645 BEARING HOUSING 1
48 500332328 RETAINER 1
49 16729424 STUD 1
50 17044731 HEXAGON NUT 1
51 500344426 BRACKET 1
52 500344409 FASTENING BRACKET 1
53 16585724 HEXAGON BOLT 3
54 500343018 ELECTRON.TRANSMITT 1
55 17094714 WASHER 1
56 500371071 PROTECTION 1
57 500377026 BEARING HOUSING 1
58 504027985 BEARING HOUSING 1
59 500368070 FLAT ENGINE GASKET 1
60 504008971 SCREW 1

Applies to engines

Engine Family
8140.43S.4400 8140.43 view
8140SRC30.40A001 8140SRC30 view
