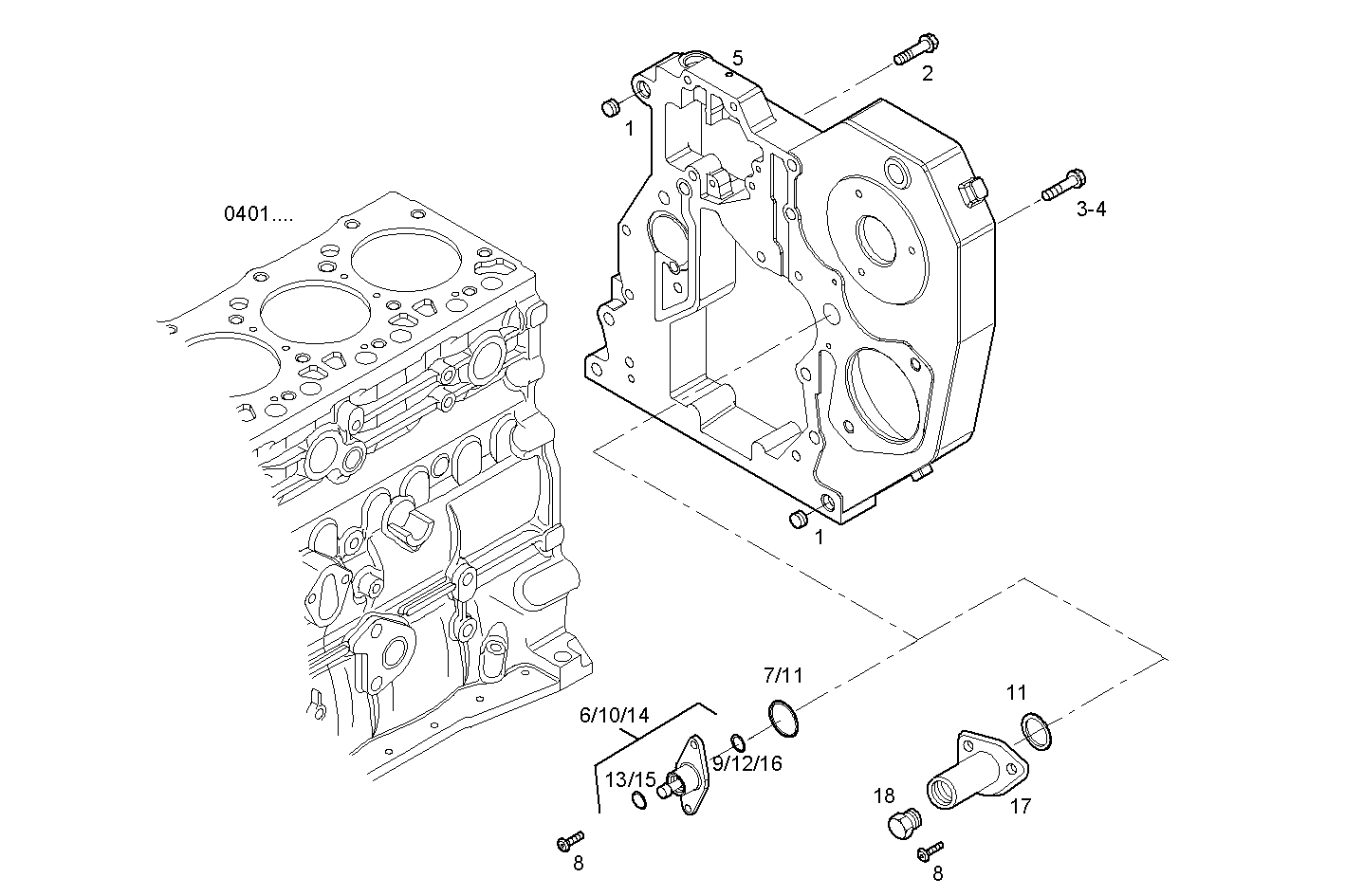

REAR C.CASE COVER
Assembly ID: 0432.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4899026 | DOWEL PIN | 2 | ||
| 2 | 4899091 | HEXAGON BOLT | 4 | ||
| 3 | 4899093 | HEXAGON BOLT | 5 | ||
| 4 | 4899073 | HEXAGON BOLT | 1 | ||
| 5 | 504035017 | TIMINGGEAR HOUSIN | 1 | ||
| 6 | 4895356 | CONNECTING PLATE | 1 | ||
| 7 | 4895357 | SEAL GASKET | 1 | ||
| 8 | 4895355 | SHEAR SCREW | 2 | ||
| 9 | 4895418 | O-RING | 1 | ||
| 10 | 504074001 | LOCKING PLATE | 1 | ||
| 11 | 17278780 | O-RING | 1 | ||
| 12 | 17278090 | O-RING | 1 | ||
| 13 | 504079852 | SPRING LOCKWASHER | 1 | ||
| 14 | 504074001 | LOCKING PLATE | 1 | ||
| 15 | 504079852 | SPRING LOCKWASHER | 1 | ||
| 16 | 17278090 | O-RING | 1 | ||
| 17 | 504170787 | LOCKING PLATE | 1 | ||
| 18 | 16882515 | PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE0604A*D602 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684C*D650 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684C*D651 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684G*D601 | NEF 6 mechanic. - TIER 2 | view |
| F4BE0684C*D | NEF 6 mechanic. - TIER 2 | view |
| F4BE0484F*D601 | NEF 4 mechanic. - TIER 2 | view |
| F4BE0484F*D600 | NEF 4 mechanic. - TIER 2 | view |
| F4BE0454G*D600 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTE20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNSE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTE20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTU20.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNAU00.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTU20.00 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0454A*D606 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0404A*D600 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0404A*D655 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0454A*D660 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0484C*D650 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0684C*D600 | NEF 6 mechanic. - TIER 2 | view |
| F4BE0454A*D601 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTE21.00A001 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTE21.00A002 | NEF 6 mechanic. - TIER 2 | view |
| N45MNAD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0404A*D656 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0454A*D661 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0484C*D651 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0604A*D601 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTD22.00 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0484G*D604 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00A001 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSE00.00A001 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00A002 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTE21.00L002 | NEF 6 electron. - TIER 2 | view |
| N67MNTD20.00A001 | NEF 6 mechanic. - TIER 2 | view |
| N45MNSI00.00A002 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTX20.00A011 | NEF 4 mechanic. - TIER 3 | view |
| N67MNTX20.00A009 | NEF 6 mechanic. - TIER 3 | view |
| F4GE0684C*D608 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTE20.00A003 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684E*D601 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0484C*D602 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTE20.00A001 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00A003 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSE00.00A002 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTE20.00A001 | NEF 6 mechanic. - TIER 2 | view |
| N40MNTE21.00A001 | NEF 4 mechanic. - TIER 2 | view |
| F4BE0484F*D606 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0684G*D602 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0687A*B600 | NEF 6 mechanic. | view |
| N67MNTF41.00 | NEF 6 mechanic. | view |
| N67MNTF42.00 | NEF 6 mechanic. | view |
| N67MNTD20.00A006 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTD20.00A002 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTD20.00A005 | NEF 6 mechanic. - TIER 2 | view |
| N45MNAD00.00A001 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0457A*B600 | NEF 4 mechanic. | view |
| N45MNSF40.00 | NEF 4 mechanic. | view |
| F4GE0487B*B600 | NEF 4 mechanic. | view |
| N45MNTF41.00 | NEF 4 mechanic. | view |
| N67MNTF41.10 | NEF 6 mechanic. | view |
| N67MNTF42.10 | NEF 6 mechanic. | view |
| F4GE0684C*D601 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684G*D603 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTD21.00A001 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTD20.00A007 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0454A*D601 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00A002 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0404A*D653 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00A002 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTE20.00-OM | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00-OM | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00A004 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00A004 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTF41.10 | NEF 4 mechanic. | view |
| N45MNSF40.10 | NEF 4 mechanic. | view |
| F4GE0687A*B601 | NEF 6 mechanic. | view |
| N67MNTF40.01 | NEF 6 mechanic. | view |
| F4GE9684A*J602 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTX20.00 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTX20.00A001 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTX20.00A800 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTX20.00A801 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTX20.00A810 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTF40.01A001 | NEF 6 mechanic. - TIER 2 | view |
| F4GE9484D*J602 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9684D*J601 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTX21.00A001 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684D*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684F*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684E*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684B*J603 | NEF 6 mechanic. - TIER 3 | view |
| F4GE0404A*D607 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0454A*D608 | NEF 4 mechanic. - TIER 2 | view |
| PUN67MNTX20.00A100 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9454J*J601 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX02.00 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9484F*J604 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTF41.01 | NEF 4 mechanic. | view |
| N45MNTX20.00A004 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9484J*J602 | NEF 4 mechanic. - TIER 3 | view |
| F4GE0455N*D600 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00A005 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTA20.00A800 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTA20.00A810 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9454J*J603 | NEF 4 mechanic. - TIER 3 | view |
| N67MNTF40.10 | NEF 6 mechanic. | view |
| N67MNTF41.00A001 | NEF 6 mechanic. | view |
| N67MNTF42.00A001 | NEF 6 mechanic. | view |
| N45MNSX02.00A001 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX26.00A001 | NEF 4 mechanic. - TIER 3 | view |
| N67MNTX20.00A010 | NEF 6 mechanic. - TIER 3 | view |
