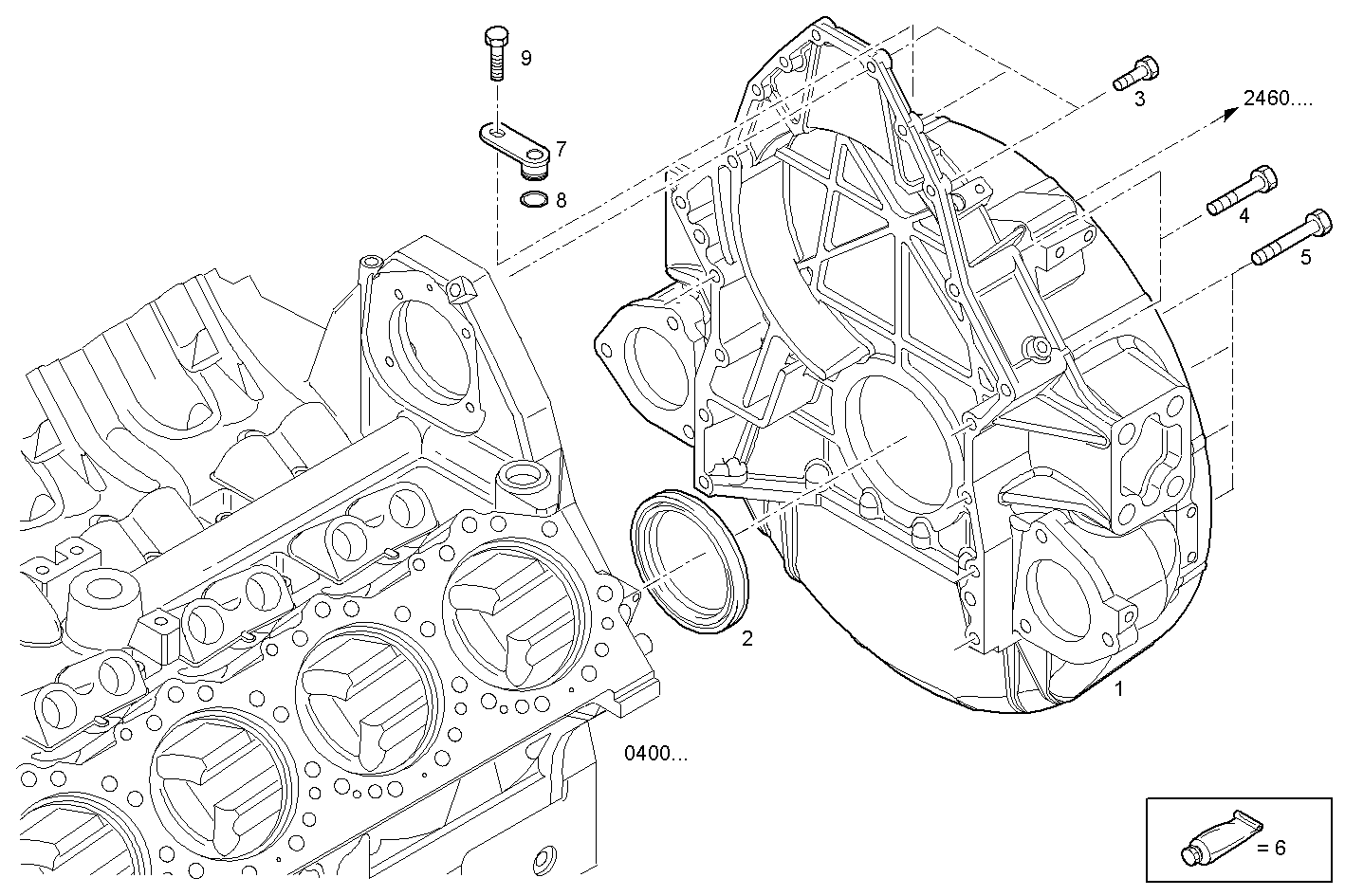

FLYWHEEL HOUSING
Assembly ID: 0435.040
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504279843 | REAR C.CASE COVER | 1 | ||
| 2 | 504036095 | SHAFT SEAL | 1 | ||
| 3 | 16677935 | HEXAGON BOLT | 6 | ||
| 4 | 16681335 | HEXAGON BOLT | 8 | ||
| 5 | 16681534 | HEXAGON BOLT | 4 | ||
| 6 | 2992504 | ADHESIVE/STICKER | 1 | ||
| 7 | 504090317 | COVER | 1 | ||
| 8 | 17281681 | O-RING | 1 | ||
| 9 | 16597925 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVQE2883Z*C200 | VECTOR 8 | view |
