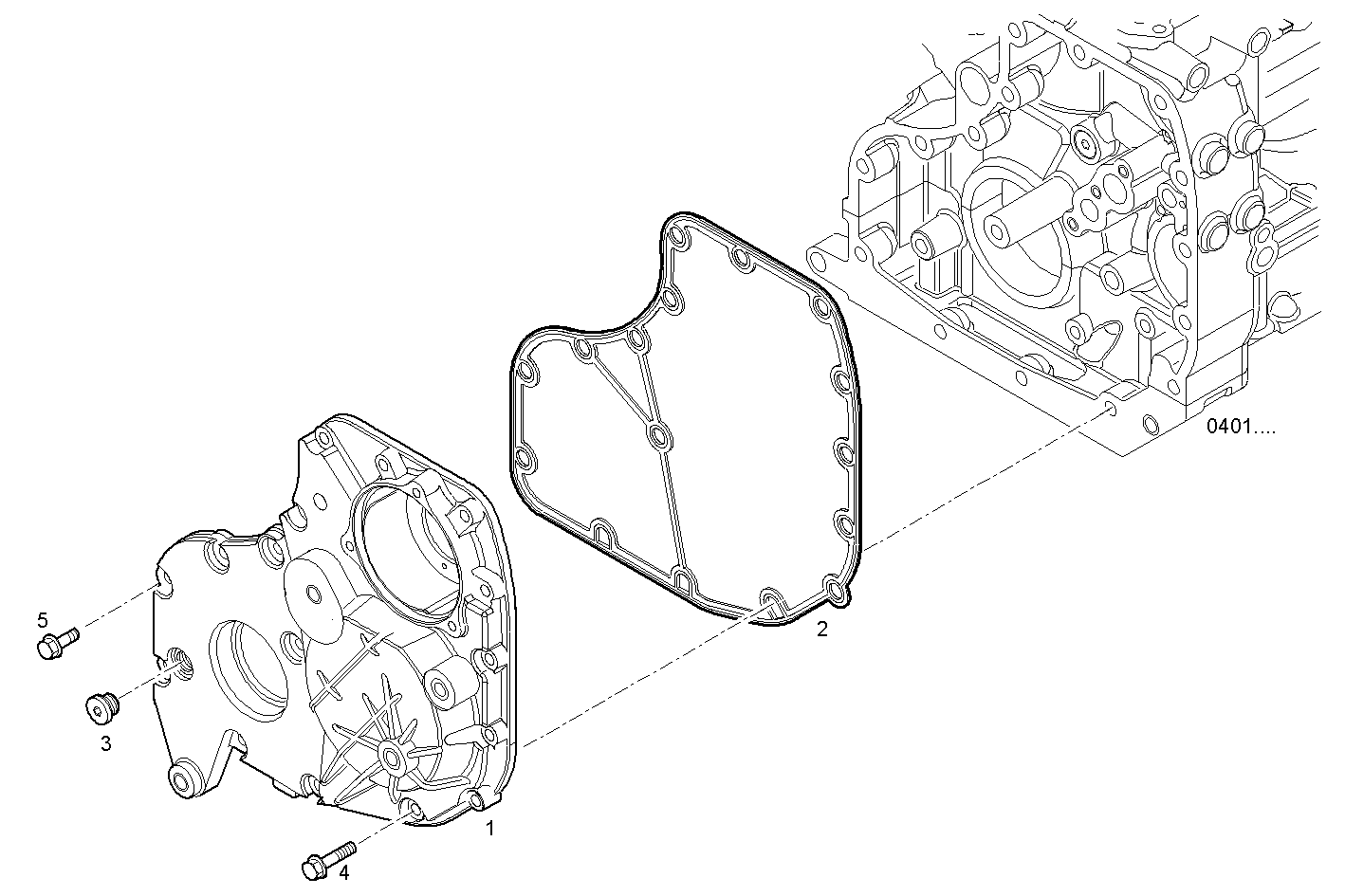

TIMING COVER
Assembly ID: 0436.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504371272 | FRONT C.CASE COVER | 1 | ||
| 2 | 504082437 | GASKET | 1 | ||
| 3 | 16586225 | HEXAGON BOLT | 7 | ||
| 4 | 16673835 | HEXAGON BOLT | 9 | ||
| 5 | 504016052 | LOCK PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE3481F*D003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D013 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D012 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D011 | SOFIM HPI 3.0L - EURO 5 | view |
