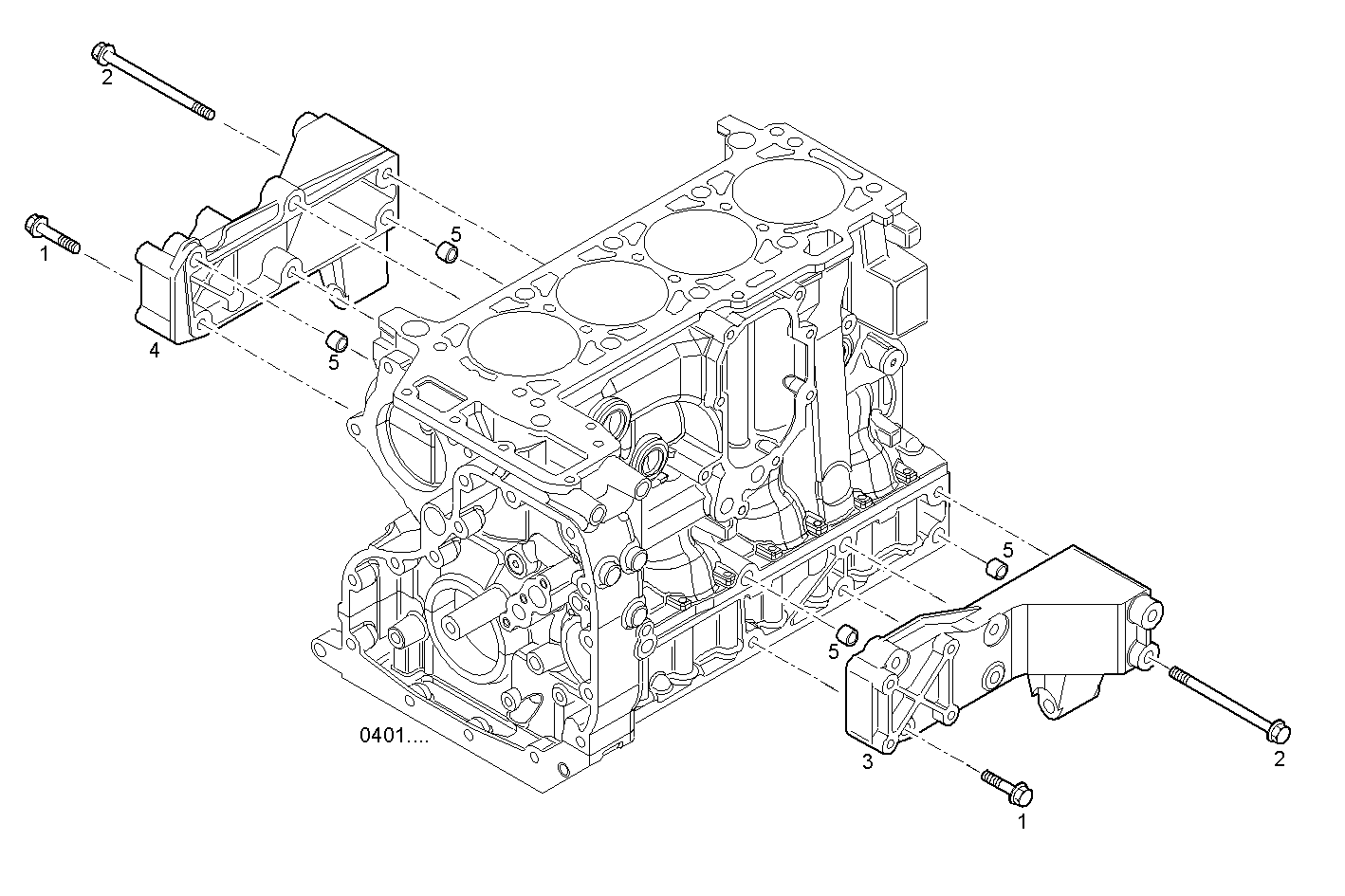

ENGINE SUSPENSION
Assembly ID: 0442.011
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16288934 | HEXAGON BOLT | 8 | ||
| 2 | 504001047 | HEXAGON BOLT | 4 | ||
| 3 | 504218833 | FRONT ENG. MOUNT | 1 | ||
| 4 | 504218835 | FRONT ENG. MOUNT | 1 | ||
| 5 | 500371139 | DOWEL PIN | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0487K*C502 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENTG20.00A002 | SOFIM HPI 3.0L CNG | view |
| F1CE0481F*C504 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.70A002 | SOFIM HPI 3.0L - EURO 4 | view |
