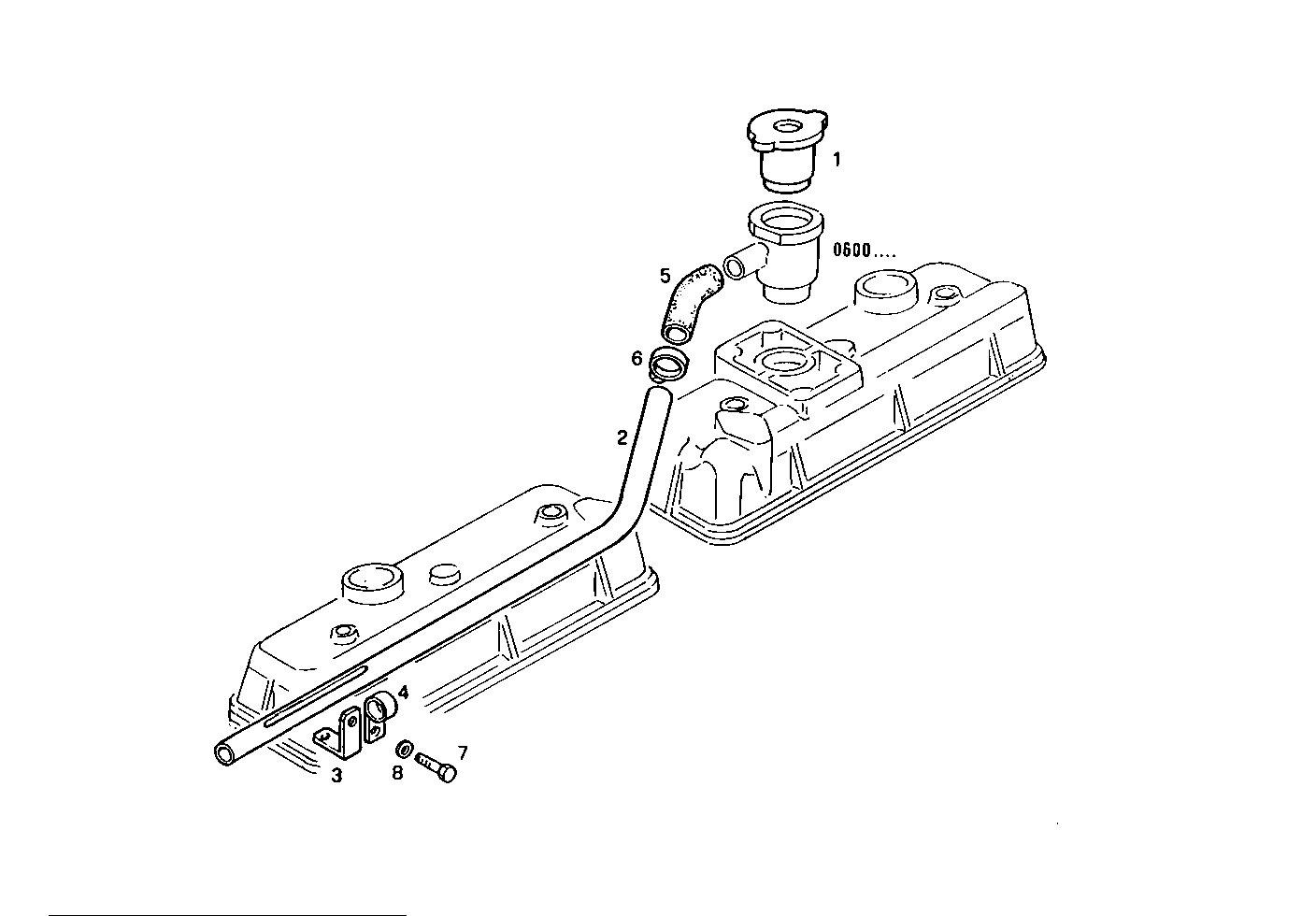

ENGINE BREATHERS
Assembly ID: 0450.015
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8823136 | LOCK PLUG | 1 | ||
| 2 | 8111077 | FLAT ENGINE GASKET | 1 | ||
| 3 | 8110294 | RETAINER | 1 | ||
| 4 | 4763804 | FASTENING BRACKET | 1 | ||
| 5 | 10129087 | RUBBER SLEEVE | 1 | ||
| 6 | 12176990 | CLIP | 2 | ||
| 7 | 16605524 | HEXAGON BOLT | 1 | ||
| 8 | 17089474 | SPRING WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRM32.00 | 8361SRM32 | view |
| 8361SRM32.40 | 8361SRM32 | view |
| 8361SRM32.01 | 8361SRM32 | view |
| 8361SRM32.41 | 8361SRM32 | view |
| 8361SRM32.01A550 | 8361SRM32 | view |
