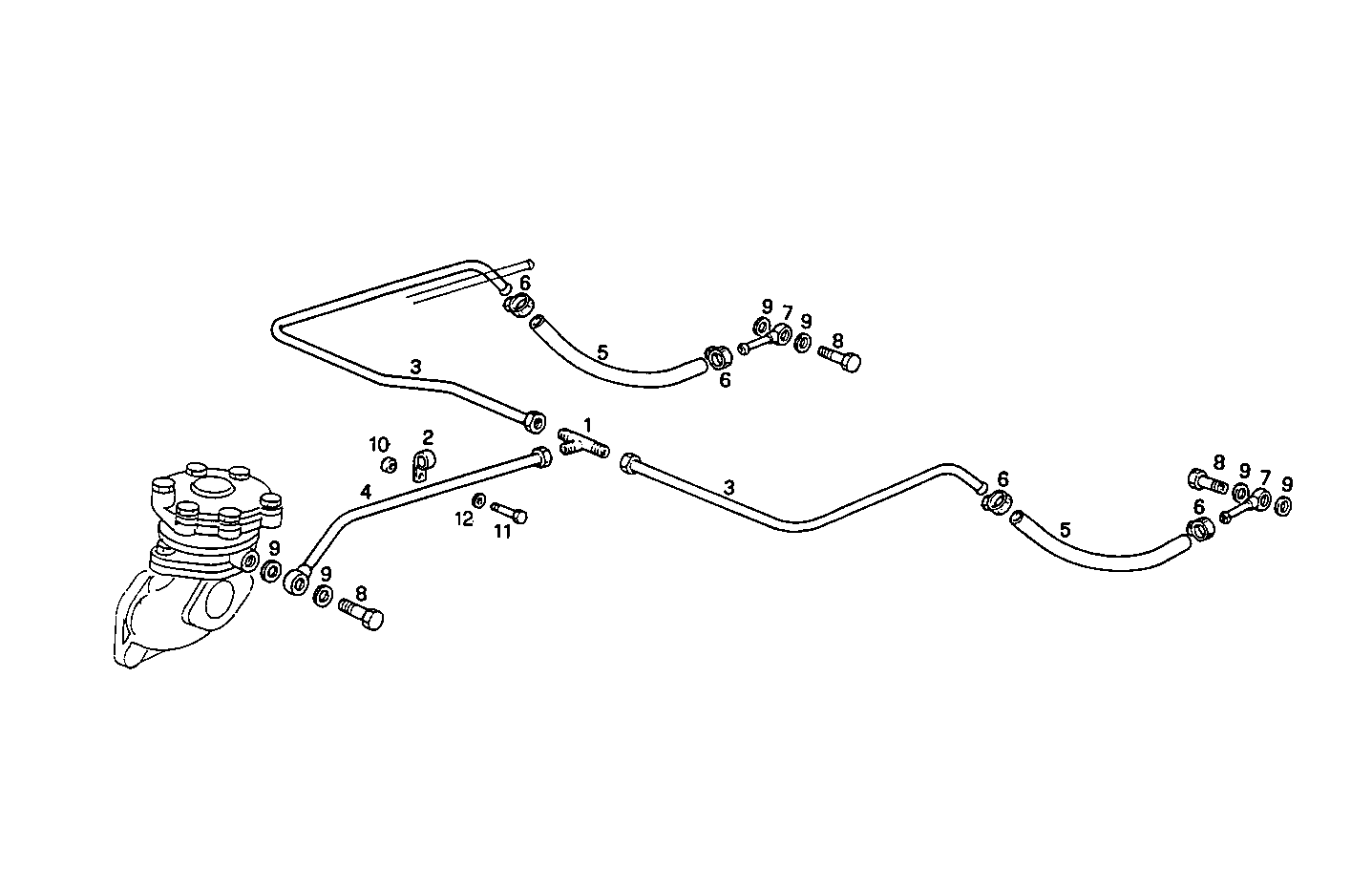

| 1 |
4677909
|
T-COUPLING
|
|
1
|
|
| 2 |
4656139
|
FASTENING BRACKET
|
|
1
|
|
| 3 |
8108689
|
BREATHER PIPE
|
|
2
|
|
| 4 |
8014189
|
AIR PIPE/DUCT
|
|
1
|
|
| 5 |
17724487
|
RUBBER HOSE
|
|
2
|
|
| 6 |
18087991
|
CLIP
|
|
4
|
|
|
18087993 |
CLIP |
|
4 |
|
| 7 |
8005622
|
PIPE SOCKET
|
|
2
|
|
| 8 |
4864080
|
SCREW CONNECTOR
|
|
3
|
|
| 9 |
4858606
|
GASKET
|
|
6
|
|
| 10 |
4930712
|
SPACING BAR
|
|
1
|
|
| 11 |
11306921
|
SCREW
|
|
1
|
|
| 12 |
17090174
|
SPRING WASHER
|
|
1
|
|
