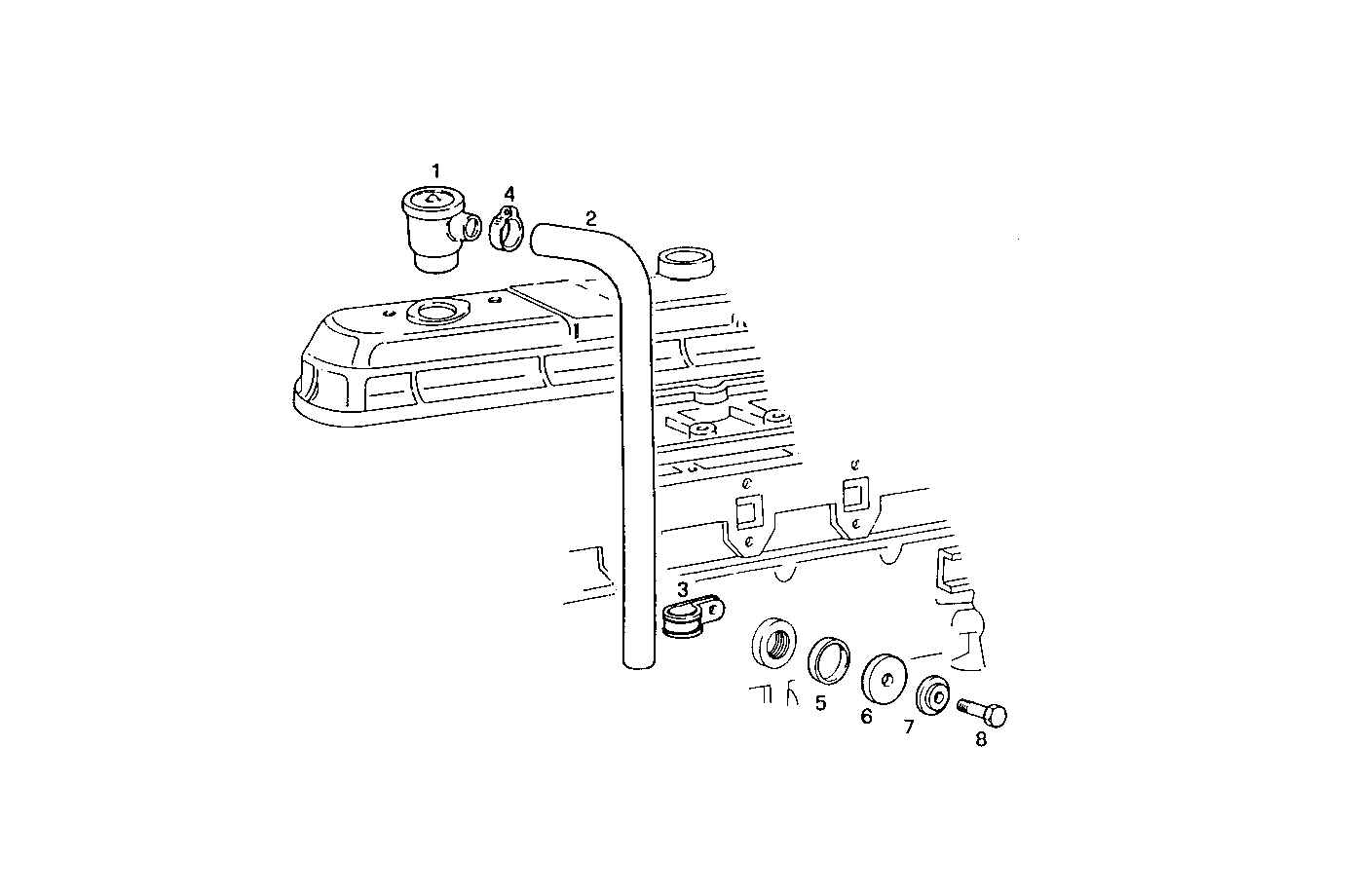

ENGINE BREATHERS
Assembly ID: 0450.078
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4812047 | BREATHER | 1 | ||
| 2 | 4817952 | RUBBER SLEEVE | 1 | ||
| 3 | 10450890 | PIPE CLIP | 2 | ||
| 4 | 17764691 | CLIP | 1 | ||
| 5 | 4600893 | GASKET | 1 | ||
| 6 | 4811892 | COVER | 1 | ||
| 7 | 4716734 | WASHER | 1 | ||
| 8 | 16044024 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061M12.00 | 8061M12 | view |
| 8061M12.01 | 8061M12 | view |
| 8061M12.11 | 8061M12 | view |
| 8061M12.21 | 8061M12 | view |
| 8061M12.31 | 8061M12 | view |
| 8061M12.40 | 8061M12 | view |
