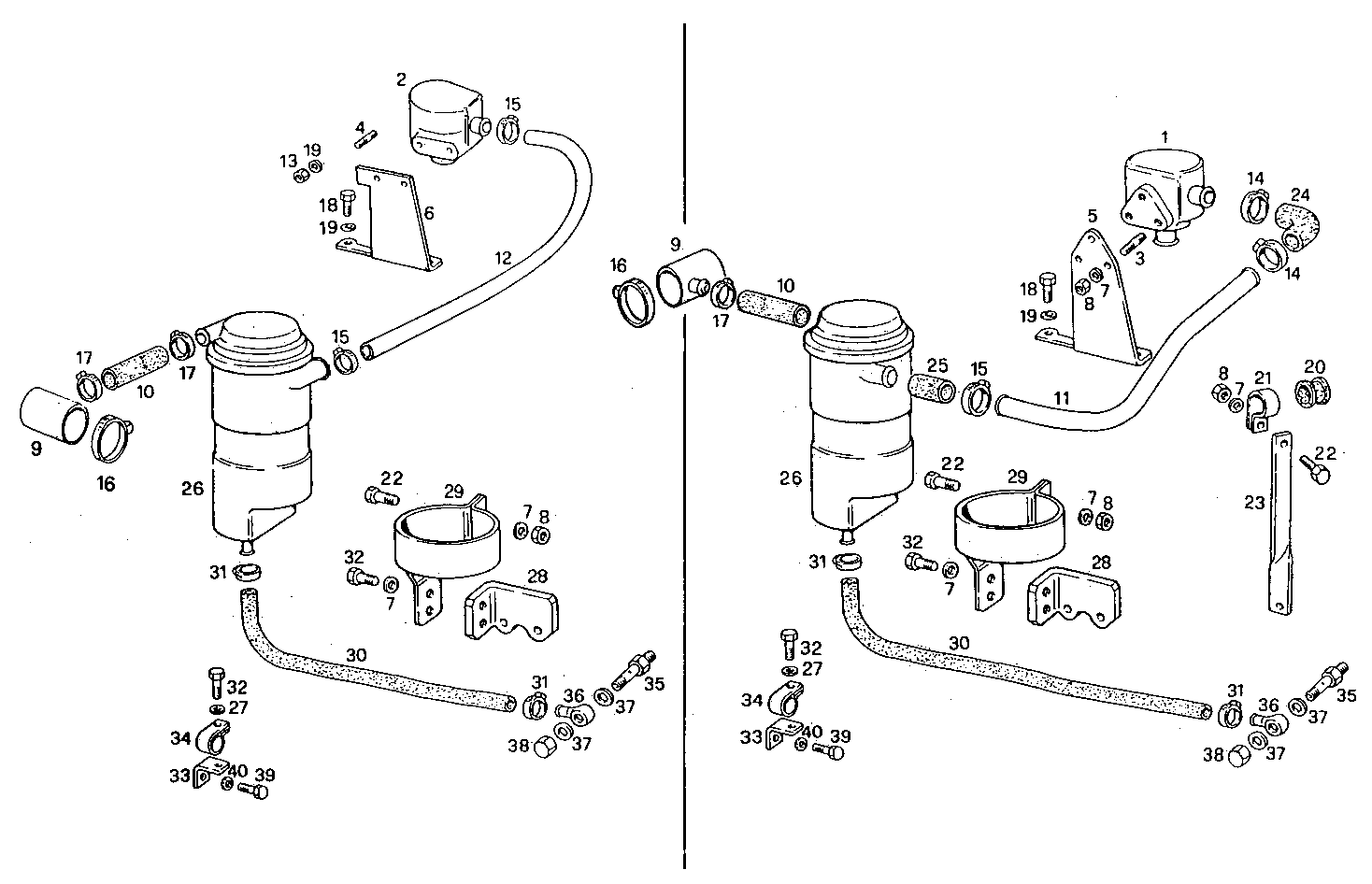

| 1 |
8014172
|
BREATHER
|
|
1
|
|
| 2 |
8016815
|
BREATHER
|
|
1
|
|
| 3 |
16279224
|
STUD
|
|
3
|
|
| 4 |
16731124
|
STUD
|
|
2
|
|
| 5 |
8014173
|
RETAINER
|
|
1
|
|
| 6 |
8016833
|
RETAINER
|
|
1
|
|
| 7 |
17089474
|
SPRING WASHER
|
|
7
|
|
| 8 |
17037931
|
HEXAGON NUT
|
|
4
|
|
| 9 |
8015202
|
RUBBER SLEEVE
|
|
1
|
|
| 10 |
8014770
|
OIL HOSE
|
|
1
|
|
| 11 |
8015273
|
AIR PIPE/DUCT
|
|
1
|
|
| 12 |
8016935
|
AIR HOSE
|
|
1
|
|
| 13 |
17038121
|
HEXAGON NUT
|
|
2
|
|
|
17038131 |
HEXAGON NUT |
|
2 |
|
| 14 |
17764791
|
CLIP
|
|
2
|
|
|
17764792 |
CLIP |
|
2 |
|
| 15 |
17764691
|
CLIP
|
|
2
|
|
| 16 |
17765091
|
CLIP
|
|
1
|
|
| 17 |
17764592
|
CLIP
|
|
2
|
|
| 18 |
8015185
|
SCREW
|
|
2
|
|
| 19 |
17090174
|
SPRING WASHER
|
|
4
|
|
| 20 |
4747140
|
RUBBER PAD
|
|
1
|
|
| 21 |
4810595
|
FASTENING BRACKET
|
|
1
|
|
| 22 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
| 23 |
8015183
|
RETAINER
|
|
1
|
|
| 24 |
61319112
|
RUBBER SLEEVE
|
|
1
|
|
|
61321189 |
RUBBER SLEEVE |
|
1 |
|
| 25 |
8009117
|
RUBBER SLEEVE
|
|
1
|
|
| 26 |
7303441
|
BREATHER
|
|
1
|
|
| 27 |
17089774
|
SPRING WASHER
|
|
1
|
|
| 28 |
8015130
|
RETAINER
|
|
1
|
|
| 29 |
4860370
|
SUPPORT
|
|
1
|
|
| 30 |
8016936
|
OIL HOSE
|
|
1
|
|
| 31 |
17764491
|
CLIP
|
|
2
|
|
|
18088392 |
CLIP |
|
2 |
|
| 32 |
16605424
|
SCREW
|
|
3
|
|
| 33 |
8110294
|
RETAINER
|
|
1
|
|
| 34 |
17316990
|
LOCK/YOKE
|
|
1
|
|
| 35 |
8015162
|
PIPE SOCKET
|
|
1
|
|
| 36 |
98405552
|
PIPE SOCKET
|
|
1
|
|
| 37 |
98474308
|
SEAL GASKET
|
|
2
|
|
|
5801696011 |
SEAL GASKET |
|
2 |
|
| 38 |
10182817
|
LOCK PLUG
|
|
1
|
|
| 39 |
16603724
|
HEXAGON BOLT
|
|
1
|
|
| 40 |
17088974
|
SPRING WASHER
|
|
1
|
|
