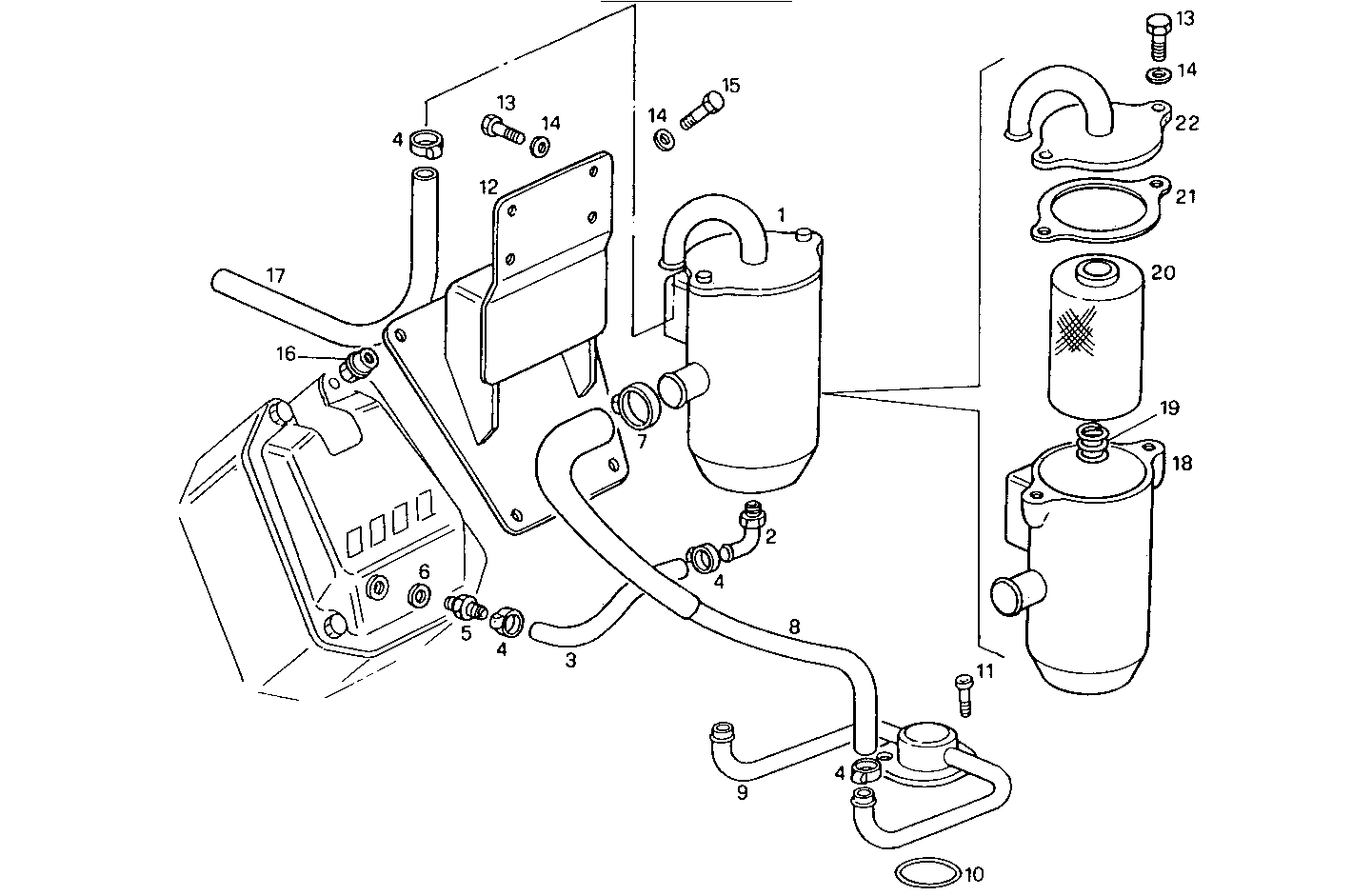

| 1 |
8028086
|
BREATHER
|
|
2
|
|
|
17089474 |
BREATHER |
|
2 |
|
| 2 |
8111261
|
PIPE SOCKET
|
|
2
|
|
| 3 |
8021856
|
HOSE
|
|
2
|
|
| 4 |
17764691
|
CLIP
|
|
4
|
|
| 5 |
16500011
|
PIPE SOCKET
|
|
2
|
|
|
41905549 |
PIPE SOCKET |
|
2 |
|
| 6 |
16550760
|
GASKET
|
|
2
|
|
| 7 |
17764891
|
CLIP
|
|
2
|
|
|
17764892 |
CLIP |
|
2 |
|
| 8 |
8027192
|
HOSE
|
|
2
|
|
| 9 |
8027984
|
BREATHER PIPE
|
|
1
|
|
| 10 |
17283581
|
O-RING
|
|
1
|
|
| 11 |
16690424
|
CYLIND-HEAD SCREW
|
|
2
|
|
| 12 |
8027967
|
SUPPORT
|
|
2
|
|
| 13 |
16605524
|
HEXAGON BOLT
|
|
8
|
|
| 14 |
17089474
|
SPRING WASHER
|
|
16
|
|
| 15 |
16605424
|
SCREW
|
|
8
|
|
| 16 |
8026366
|
PIPE SOCKET
|
|
8
|
|
| 17 |
8028037
|
HOSE
|
|
2
|
|
| 18 |
8027983
|
BREATHER
|
|
2
|
|
| 19 |
4965120
|
SPRING
|
|
2
|
|
| 20 |
4788504
|
FUEL FILTER ELEM.
|
|
2
|
|
|
1902096 |
FUEL FILTER ELEM. |
|
2 |
|
| 21 |
8023819
|
GASKET
|
|
2
|
|
| 22 |
8025345
|
COVER
|
|
2
|
|
