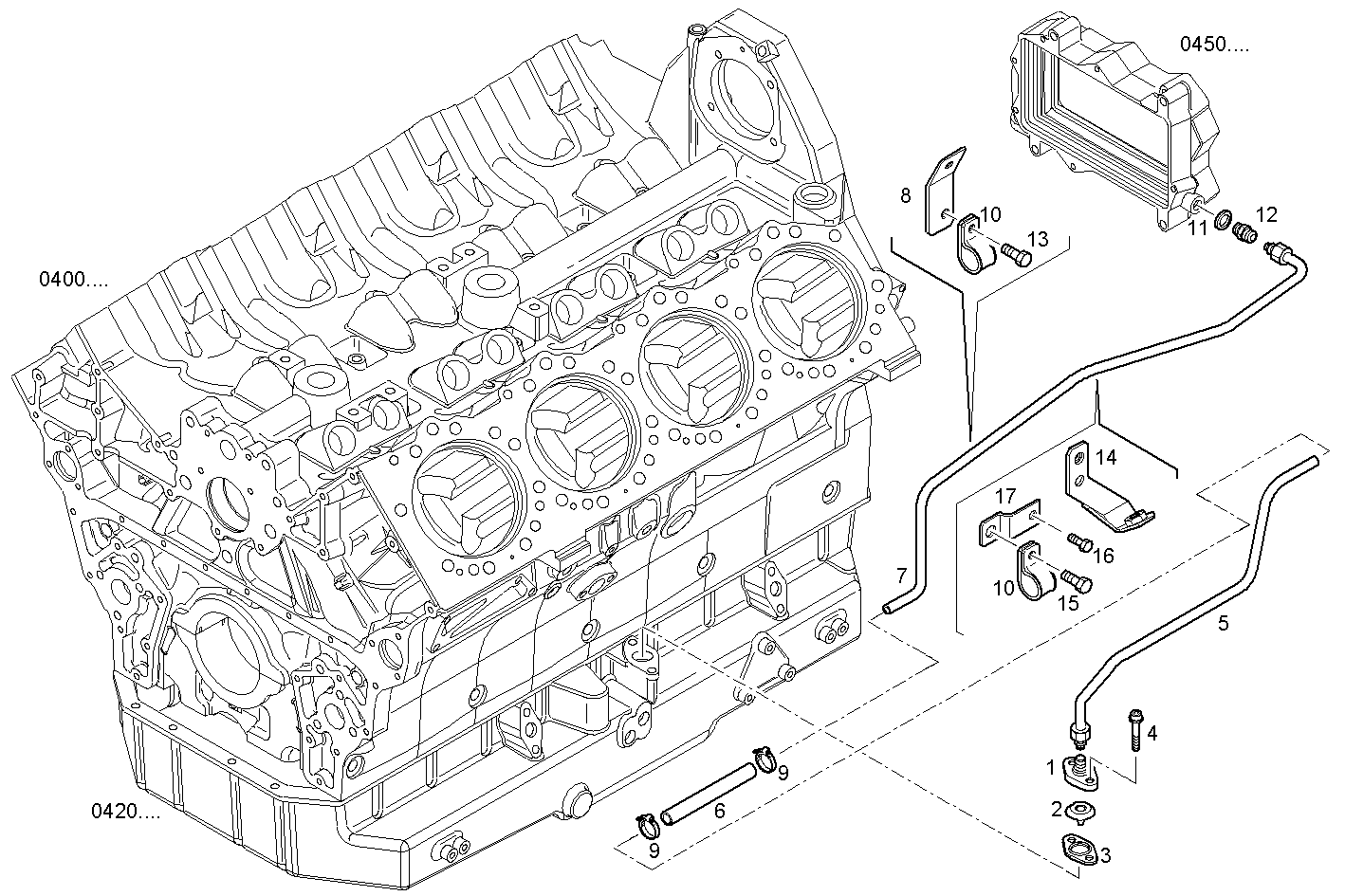

ENGINE BREATHERS
Assembly ID: 0450.179-03
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504075263 | PIPE SOCKET | 1 | ||
| 2 | 504036532 | VALVE | 1 | ||
| 3 | 504075235 | FLAT ENGINE GASKET | 1 | ||
| 4 | 16673735 | HEXAGON BOLT | 2 | ||
| 5 | 504090876 | PIPE | 1 | ||
| 6 | 504085915 | RUBBER SLEEVE | 1 | ||
| 7 | 504090877 | PIPE | 1 | ||
| 8 | 504090878 | RETAINER | 1 | ||
| 9 | 18088392 | CLIP | 2 | ||
| 10 | 17316592 | PIPE CLIP | 4 | ||
| 11 | 98474309 | WASHER | 1 | ||
| 12 | 504081274 | THREADED UNION | 1 | ||
| 13 | 18138325 | HEXAGON BOLT | 4 | ||
| 14 | 504093757 | SUPPORT | 1 | ||
| 15 | 16586225 | HEXAGON BOLT | 1 | ||
| 16 | 16597925 | HEXAGON BOLT | 1 | ||
| 17 | 99481827 | FASTENING BRACKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVQE2883X*A200 | VECTOR 8 | view |
| PPVZ2883X*Q400 | POWER PACK | view |
| PPVZ2883X*Q440 | POWER PACK | view |
