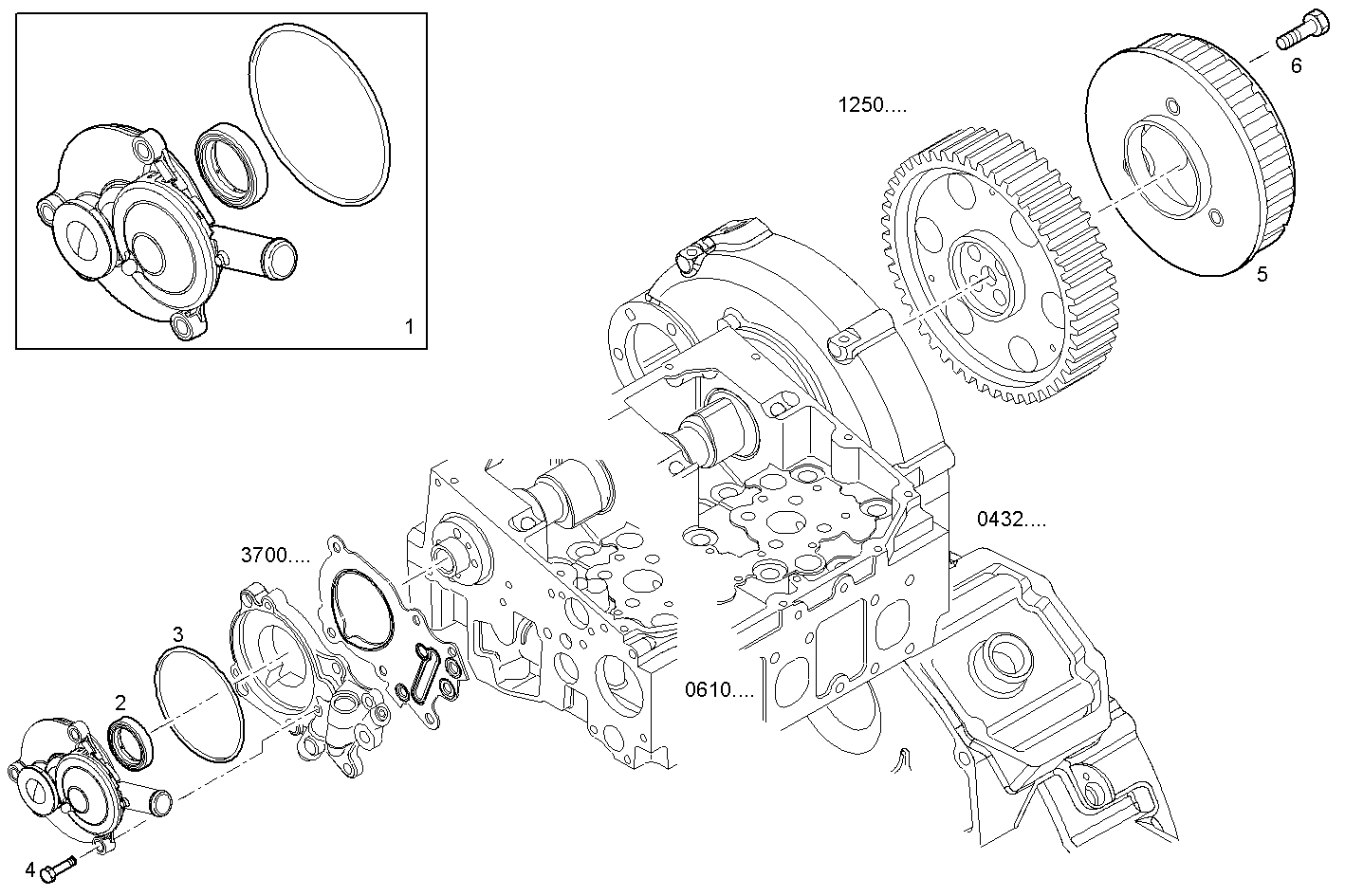

ENGINE BREATHERS

Assembly ID: 0450.224

ENGINE BREATHERS

Parts

# Part number Description Note Quantity
1 504089127 BREATHER 1
2 504050244 SHAFT SEAL 1
3 17291281 O-RING 1
4 16585825 HEXAGON BOLT 3
5 504127720 FILTER 1
6 18137825 HEXAGON BOLT 3

Applies to engines

Engine Family
C87ENTX20.00A002 CURSOR 9 - TIER 3 view
F2CE9684A*E004 CURSOR 9 - TIER 3 view
F2CE9684B*E001 CURSOR 9 - TIER 3 view
F2CE9684C*E001 CURSOR 9 - TIER 3 view
F2CE9684D*E001 CURSOR 9 - TIER 3 view
F2CE9684C*E002 CURSOR 9 - TIER 3 view
F2CE9684E*E002 CURSOR 9 - TIER 3 view
F2CE9687A*E001 CURSOR 9 - TIER 3 view
F2CE9687B*E001 CURSOR 9 - TIER 3 view
F2CE9687C*E001 CURSOR 9 - TIER 3 view
C87ENTX20.00 CURSOR 9 - TIER 3 view
C87ENTX20.00A800 CURSOR 9 - TIER 3 view
C87ENTX20.00A801 CURSOR 9 - TIER 3 view
C87ENTX20.00A802 CURSOR 9 - TIER 3 view
F2CE9684H*E003 CURSOR 9 - TIER 3 view
F2CE9685A*E001 CURSOR 9 - 2002/88/CE - TIER 3 view
C87ENTX60.00 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.R991 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A001 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A002 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR270ED.R990 GECURSOR 9 - 2002/88/CE TIER 3 view
C87ENTX20.00A803 CURSOR 9 - TIER 3 view
F2CE9684M*E008 CURSOR 9 - TIER 3 view
F2CE9684A*E009 CURSOR 9 - TIER 3 view
F2CE9684H*E010 CURSOR 9 - TIER 3 view
F2CE9684M*E006 CURSOR 9 - TIER 3 view
F2CE9684M*E007 CURSOR 9 - TIER 3 view
F2CE9684N*E005 CURSOR 9 - TIER 3 view
F2CE9684P*E006 CURSOR 9 - TIER 3 view
F2CE9684P*E007 CURSOR 9 - TIER 3 view
CURSOR87TE1D.S550 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A559 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR250ED.R990 GECURSOR 9 - TIER 3 view
GECURSOR250ED.A71M GECURSOR 9 - TIER 3 view
GECURSOR250ED.A551 GECURSOR 9 - TIER 3 view
F2CE9684P*E008 CURSOR 9 - TIER 3 view
C87ENTX20.00A003 CURSOR 9 - TIER 3 view
CURSOR87TE1D.A008 CURSOR 9 - 2002/88/CE - TIER 3 view
F2CE9684A*E014 CURSOR 9 - TIER 3 view
F2CE9684B*E013 CURSOR 9 - TIER 3 view
F2CE9684C*E013 CURSOR 9 - TIER 3 view
F2CE9684C*E015 CURSOR 9 - TIER 3 view
F2CE9684D*E013 CURSOR 9 - TIER 3 view
F2CE9684E*E015 CURSOR 9 - TIER 3 view
F2CE0681B*B200 CURSOR 9 - EURO 3 view
F2CE0681B*B201 CURSOR 9 - EURO 3 view
