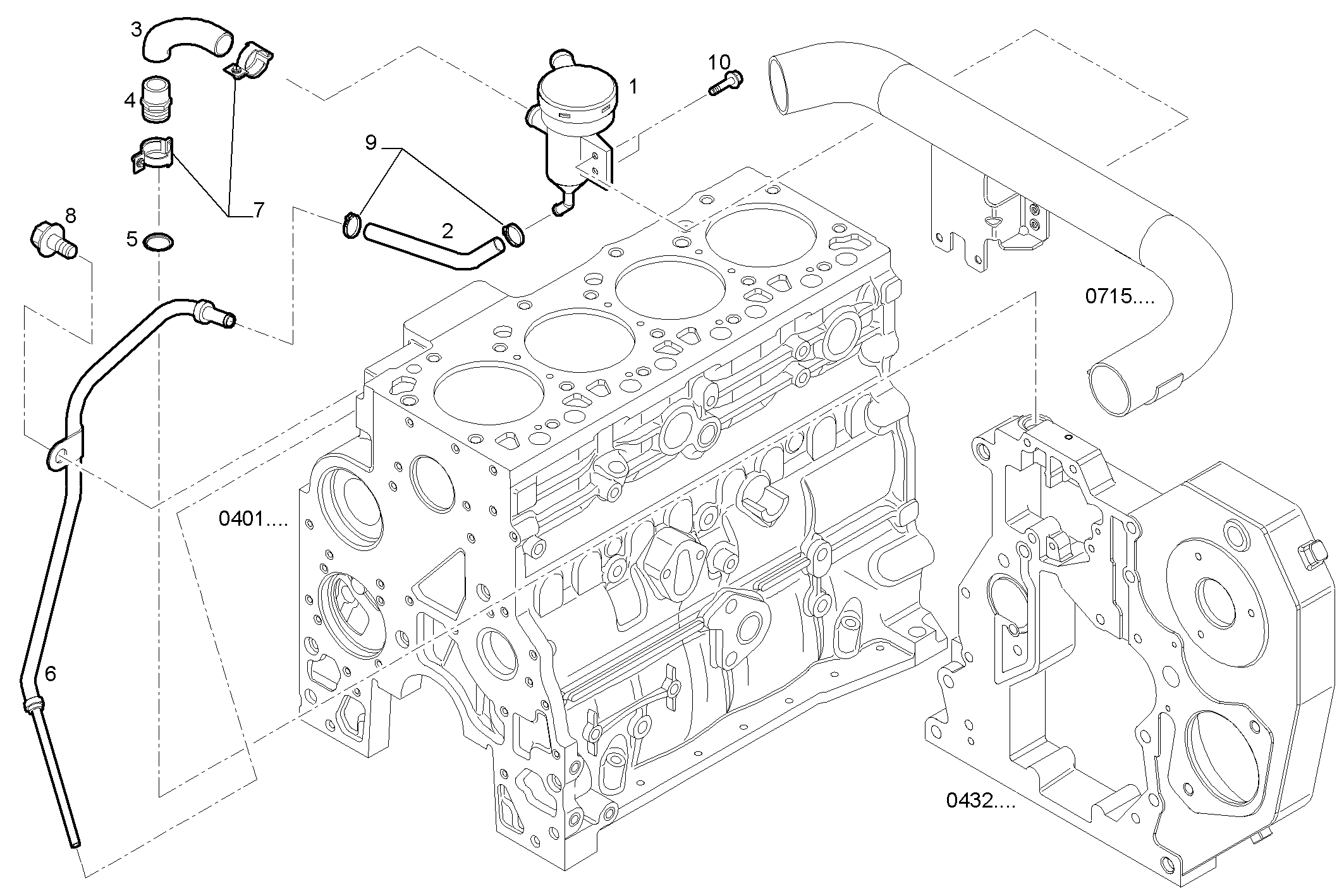

ENGINE BREATHERS
Assembly ID: 0450.237
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504168184 | VALVE | 1 | ||
| 2 | 504170767 | RUBBER SLEEVE | 1 | ||
| 3 | 504170633 | RUBBER SLEEVE | 1 | ||
| 4 | 504170635 | SCREW CONNECTOR | 1 | ||
| 5 | 99489021 | WASHER | 1 | ||
| 6 | 504170637 | BREATHER PIPE | 1 | ||
| 7 | 4893234 | CLIP | 2 | ||
| 8 | 16597425 | HEXAGON BOLT | 1 | ||
| 9 | 18088192 | CLIP | 1 | ||
| 10 | 4899092 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE9454K*J600 | NEF 4 mechanic. - TIER 3 | view |
| F4GE0457A*D600 | NEF 4 mechanic. - TIER 2 | view |
| F4GE9454C*J604 | NEF 4 mechanic. - TIER 3 | view |
