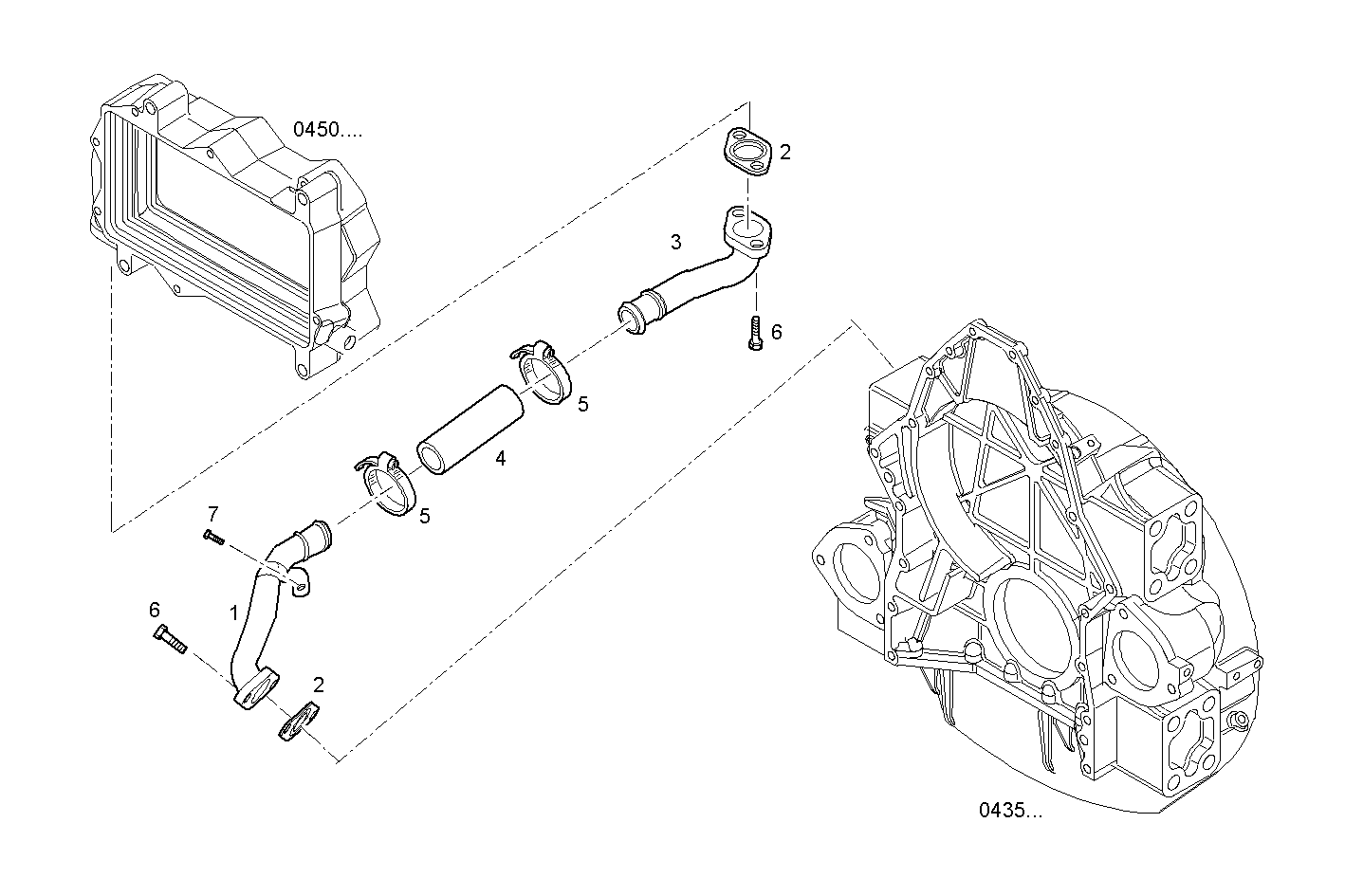

COALESCE. FILTER GROUP
Assembly ID: 0473.003-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504347763 | BREATHER PIPE | 1 | ||
| 2 | 504072992 | FLAT ENGINE GASKET | 2 | ||
| 3 | 504132252 | BREATHER PIPE | 1 | ||
| 4 | 504072530 | RUBBER SLEEVE | 1 | ||
| 5 | 18088692 | HOSE CLIP | 2 | ||
| 6 | 16673735 | HEXAGON BOLT | 4 | ||
| 7 | 16597925 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVQE2883Z*C200 | VECTOR 8 | view |
