CYLINDER HEAD

Assembly ID: 0600.025

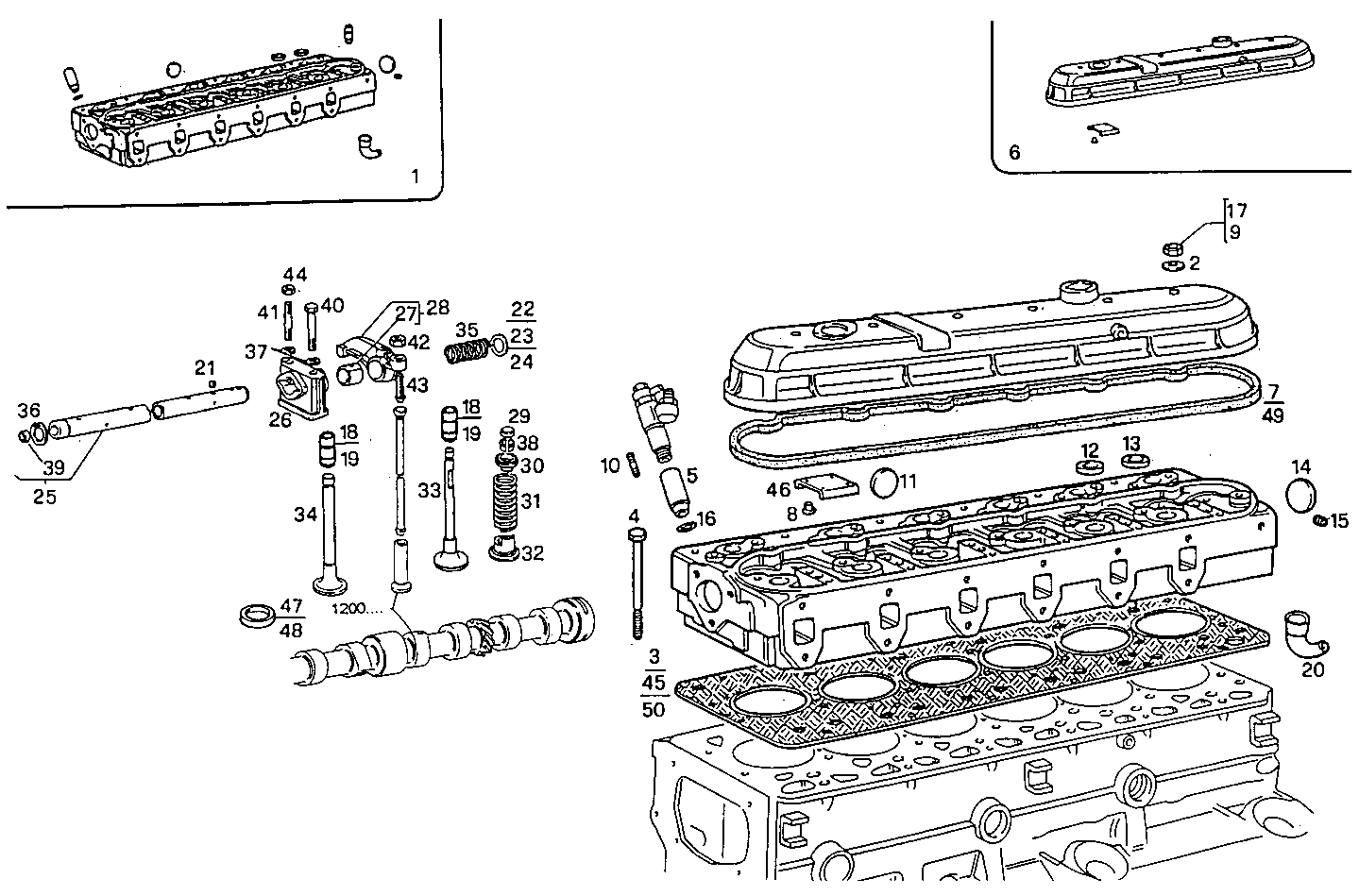

CYLINDER HEAD

Parts

# Part number Description Note Quantity
1 4832023 CYLINDER HEAD 1
2 98416134 WASHER 6
3 1907832 CYL.HEAD GASKET 1
4 4796457 CYL.HEAD STUD 26
5 4770859 NOZZLE HOLDER SEAT 6
6 8010011 CYL. HEAD COVER 1
7 4845138 HEAD COVER GASKET 1
8 13683901 RIVET 2
9 98417659 NUT 5
10 13517530 STUD 12
11 16991170 LOCK PLUG 1
12 16990870 LOCK PLUG 12
13 14282170 LOCK PLUG 1
14 16991370 LOCK PLUG 1
15 14323911 LOCK PLUG 1
16 14453981 O-RING 12
17 8009967 NUT 1
18 4802126 VALVE GUIDE 12
19 4802127 VALVE GUIDE +0,2 12
20 4818862 WATER CONVEYOR 6
21 4846851 SPIGOT SCREW 1
22 4639661 SUPPORT RING 10
23 4570798 SUPPORT RING 4
24 4570799 SUPPORT RING 4
25 4838844 ROCKER SHAFT 1
26 4601295 ROCKER BRACKET 6
27 4682937 BUSH 12
28 4848973 ROCKER ARM 12
29 4838680 VALVE CAP 12
30 4780558 SPRING CAP 12
31 4812347 ENGINE VALV.SPRING 12
32 4817424 SPRING CAP 12
33 8014593 INLET VALVE 6
34 1904654 EXHAUST VALVE 6
35 4601296 ROCKER ARM SPRING 5
36 11066676 CIRCLIP 2
37 17094901 WASHER 12
38 14196670 VALVE CONE 24
39 14328301 LOCK PLUG 2
40 16606424 HEXAGON BOLT 6
41 98458149 STUD 6
42 4338920 ADJUSTING NUT 12
43 4699783 ROCKER ARM SCREW 12
44 17037931 HEXAGON NUT 6
45 1907838 CYL.HEAD GASKET 1
46 8111618 PLATE 1
47 98495493 VALVE SEAT STD. 6
48 4803956 VALVE SEAT +0.05 6
49 98427866 HEAD COVER GASKET 1
50 504006208 CYL.HEAD GASKET 1

Applies to engines

Engine Family
8061SRM25.10 8061SRM25 view
8061SRM30.10 8061SRM30 view
