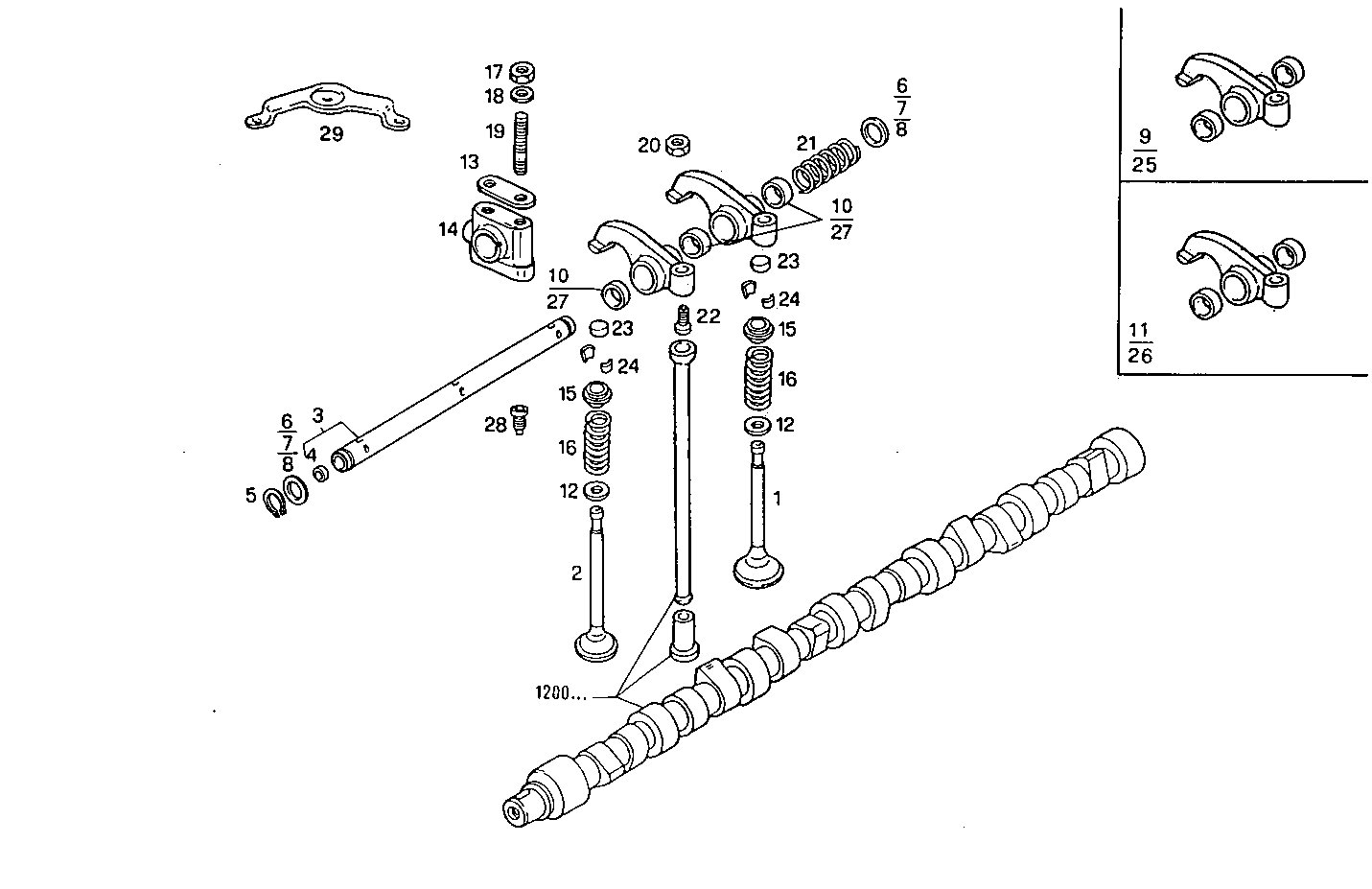

| 1 |
98478407
|
INLET VALVE
|
|
6
|
|
| 2 |
98474604
|
EXHAUST VALVE
|
|
6
|
|
| 3 |
99432169
|
ROCKER SHAFT
|
|
2
|
|
| 4 |
14328501
|
LOCK PLUG
|
|
2
|
|
|
16988101 |
LOCK PLUG |
|
2 |
|
| 5 |
16866476
|
CIRCLIP
|
|
2
|
|
| 6 |
4544152
|
SHIM
|
|
4
|
|
| 7 |
4544153
|
SHIM
|
|
4
|
|
| 8 |
4544154
|
SHIM
|
|
4
|
|
| 9 |
99431535
|
ROCKER ARM
|
|
6
|
|
| 10 |
99434732
|
BUSH
|
|
24
|
|
| 11 |
99431534
|
ROCKER ARM
|
|
6
|
|
| 12 |
98474128
|
WASHER
|
|
12
|
|
| 13 |
4546228
|
STOP PLATE
|
|
6
|
|
| 14 |
99431835
|
ROCKER BRACKET
|
|
6
|
|
| 15 |
98474126
|
SPRING CAP
|
|
12
|
|
| 16 |
98474605
|
ENGINE VALV.SPRING
|
|
12
|
|
| 17 |
17038221
|
HEXAGON NUT
|
|
12
|
|
|
17038225 |
HEXAGON NUT |
|
12 |
|
| 18 |
11198374
|
SPRING WASHER
|
|
12
|
|
|
17090274 |
SPRING WASHER |
|
12 |
|
| 19 |
13450530
|
STUD
|
|
12
|
|
| 20 |
61584377
|
NUT
|
|
12
|
|
| 21 |
604369
|
SPRING
|
|
4
|
|
| 22 |
98474606
|
ROCKER ARM SCREW
|
|
12
|
|
| 23 |
98474127
|
VALVE CAP
|
|
12
|
|
| 24 |
14196470
|
VALVE CONE
|
|
24
|
|
| 25 |
98474612
|
ROCKER ARM
|
|
6
|
|
|
99431534 |
ROCKER ARM |
|
6 |
|
| 26 |
98474613
|
ROCKER ARM
|
|
6
|
|
| 27 |
4544093
|
BUSH
|
|
24
|
|
| 28 |
4526961
|
CYLIND-HEAD SCREW
|
|
2
|
|
| 29 |
4786119
|
PROTECTION
|
|
2
|
|
