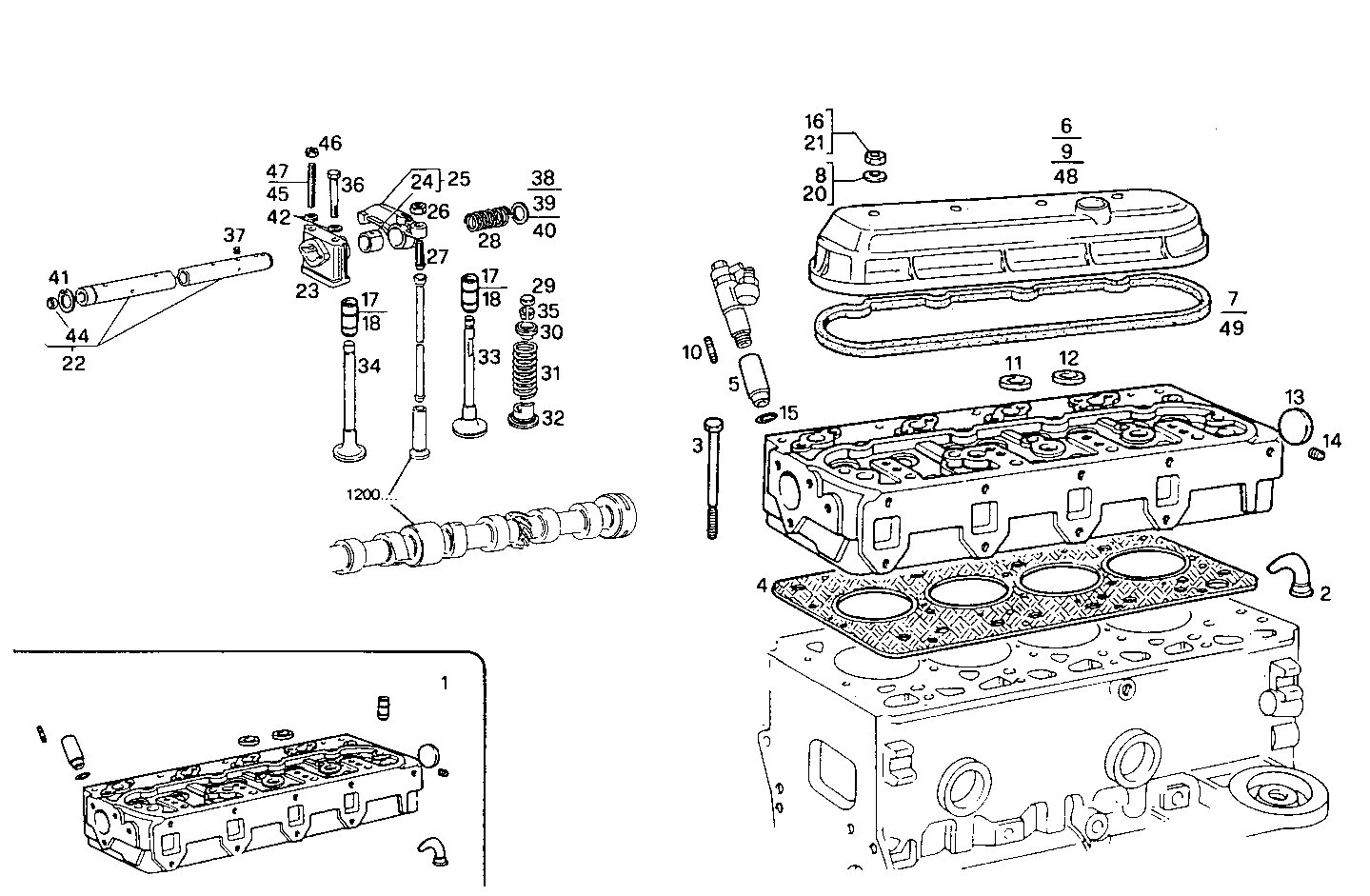

CYLINDER HEAD

Parts

#	Part number	Description	Quantity
1	99452262	CYLINDER HEAD	1
2	4818862	WATER CONVEYOR	4
3	4796457	CYL.HEAD STUD	18
4	1907835	CYL.HEAD GASKET	1
5	4770859	NOZZLE HOLDER SEAT	4
6	4683627	CYL. HEAD COVER	1
	98417659	CYL. HEAD COVER	1
7	4845136	HEAD COVER GASKET	1
8	98416134	WASHER	4
9	98418859	CYL. HEAD COVER	1
10	500380521	STUD	8
11	14282470	LOCK PLUG	8
	16990870	LOCK PLUG	8
12	14282170	LOCK PLUG	1
13	14282970	LOCK PLUG	1
	16991370	LOCK PLUG	1
14	14323911	LOCK PLUG	1
15	14453981	O-RING	8
16	98417659	NUT	4
17	4802126	VALVE GUIDE	8
18	4802127	VALVE GUIDE +0,2	8
20	17094970	WASHER	4
21	16104111	HEXAGON NUT	4
	17152821	HEXAGON NUT	4
22	4842403	ROCKER SHAFT	1
23	4601295	ROCKER BRACKET	4
24	4682937	BUSH	8
25	4848973	ROCKER ARM	8
26	4338920	ADJUSTING NUT	8
27	4699783	ROCKER ARM SCREW	8
28	4601296	ROCKER ARM SPRING	3
29	4838680	VALVE CAP	8
30	4780558	SPRING CAP	8
31	4812347	ENGINE VALV.SPRING	8
32	4817424	SPRING CAP	8
33	1908408	INLET VALVE	4
	500042643	INLET VALVE	4
34	1908410	EXHAUST VALVE	4
	500042644	EXHAUST VALVE	4
35	14196670	VALVE CONE	16
36	16606424	HEXAGON BOLT	4
37	4846851	SPIGOT SCREW	1
38	4639661	SUPPORT RING	6
39	4570798	SUPPORT RING	4
40	4570799	SUPPORT RING	4
41	11066676	CIRCLIP	2
42	17094914	WASHER	8
44	14328301	LOCK PLUG	2
	16987801	LOCK PLUG	2
45	98458149	STUD	4
46	17037931	HEXAGON NUT	4
47	13516221	STUD	4
48	99452322	CYL. HEAD COVER	1
49	500301351	HEAD COVER GASKET	1
