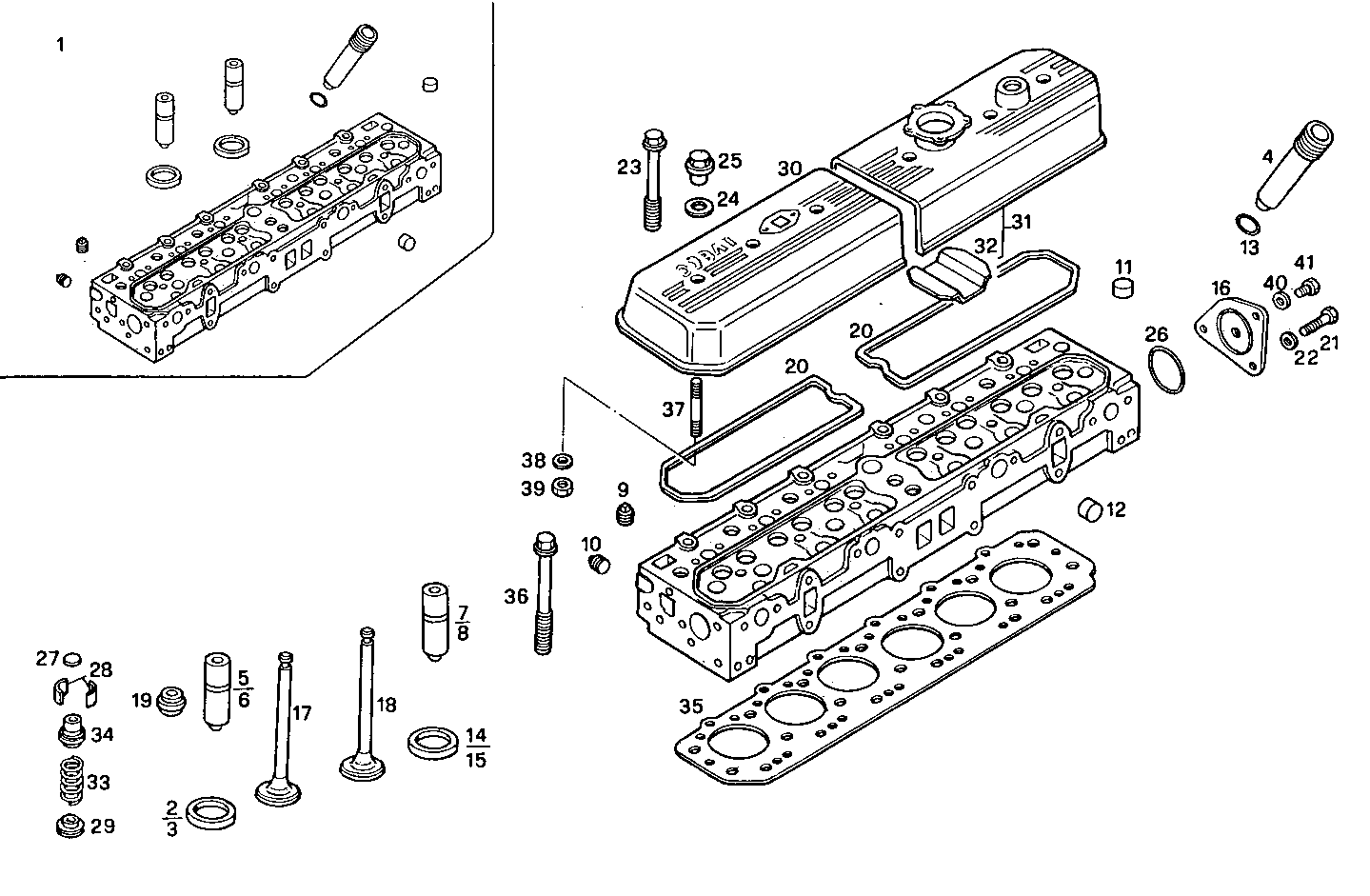

| 1 |
98443489
|
CYLINDER HEAD
|
|
1
|
|
| 2 |
1908356
|
VALVE SEAT STD.
|
|
6
|
|
| 3 |
4851893
|
GAS EX.VALVE SEAT +0.2
|
|
6
|
|
| 4 |
4857426
|
NOZZLE HOLDER SEAT
|
|
6
|
|
| 5 |
4861811
|
VALVE GUIDE
|
|
6
|
|
| 6 |
4861813
|
VALVE GUIDE +0,2
|
|
6
|
|
| 7 |
4861816
|
VALVE GUIDE
|
|
6
|
|
| 8 |
4861818
|
VALVE GUIDE +0,2
|
|
6
|
|
| 9 |
14326001
|
THREADED PLUG
|
|
2
|
|
| 10 |
14326101
|
THREADED PLUG
|
|
2
|
|
| 11 |
16990670
|
LOCK PLUG
|
|
1
|
|
| 12 |
16990870
|
LOCK PLUG
|
|
19
|
|
| 13 |
17278981
|
O-RING
|
|
12
|
|
| 14 |
98435184
|
VALVE SEAT STD.
|
|
6
|
|
| 15 |
98435186
|
VALVE SEAT +0.20
|
|
6
|
|
| 16 |
98474666
|
COVER
|
|
1
|
|
| 17 |
4860107
|
EXHAUST VALVE
|
|
6
|
|
|
1908427 |
EXHAUST VALVE |
|
6 |
|
| 18 |
98448462
|
INLET VALVE
|
|
6
|
|
|
98497241 |
INLET VALVE |
|
6 |
|
| 19 |
40102063
|
SHAFT SEAL
|
|
6
|
|
| 20 |
98449318
|
HEAD COVER GASKET
|
|
2
|
|
| 21 |
16605524
|
HEXAGON BOLT
|
|
3
|
|
| 22 |
17089474
|
SPRING WASHER
|
|
3
|
|
| 23 |
4851870
|
HEXAGON BOLT
|
|
12
|
|
| 24 |
98418749
|
WASHER
|
|
6
|
|
| 25 |
98418750
|
NUT
|
|
6
|
|
| 26 |
98465109
|
O-RING
|
|
1
|
|
| 27 |
61316052
|
CAP
|
|
12
|
|
| 28 |
61577211
|
VALVE CONE
|
|
24
|
|
|
61320851 |
VALVE CONE |
|
24 |
|
| 29 |
61577212
|
WASHER
|
|
12
|
|
| 30 |
99444868
|
CYL. HEAD COVER
|
|
1
|
|
| 31 |
99444877
|
CYL. HEAD COVER
|
|
1
|
|
| 32 |
98466591
|
DEFLECTOR PLATE
|
|
1
|
|
| 33 |
4851880
|
ENGINE VALV.SPRING
|
|
12
|
|
| 34 |
61316198
|
SPRING CAP
|
|
12
|
|
| 35 |
98497505
|
CYL.HEAD GASKET
|
|
1
|
|
|
98435149 |
CYL.HEAD GASKET |
|
1 |
|
| 36 |
98415216
|
CYL.HEAD STUD
|
|
14
|
|
| 37 |
98417097
|
STUD
|
|
6
|
|
| 38 |
17095314
|
WASHER
|
|
6
|
|
|
17097324 |
WASHER |
|
6 |
|
| 39 |
17042931
|
NUT
|
|
6
|
|
| 40 |
4858609
|
WASHER
|
|
1
|
|
| 41 |
16992411
|
THREADED PLUG
|
|
1
|
|
|
16992415 |
THREADED PLUG |
|
1 |
|
