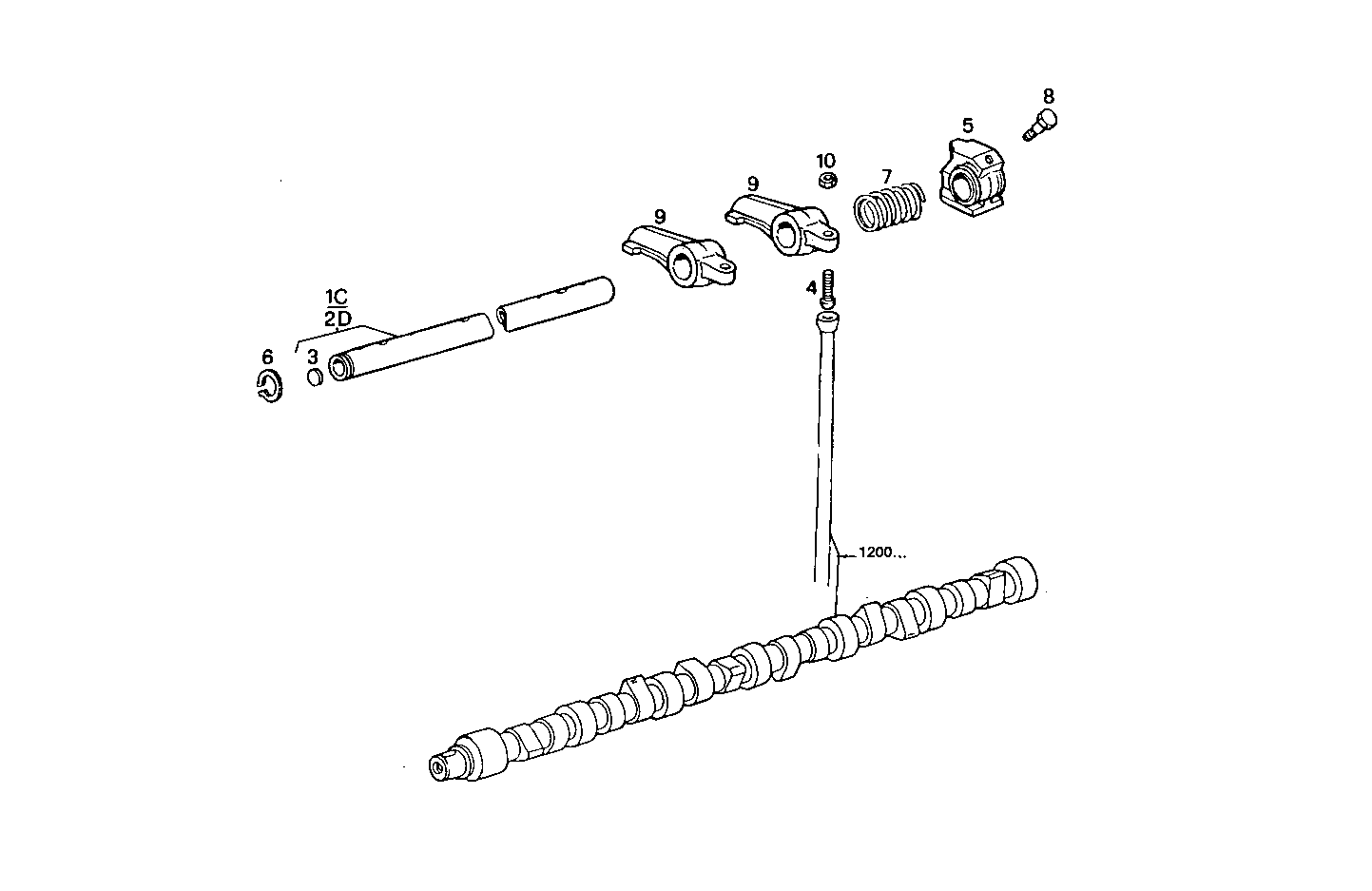

CYLINDER HEAD
Assembly ID: 0600.059-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98480252 | ROCKER SHAFT | 2 | ||
| 2 | 61584377 | NUT | 12 | ||
| 3 | 16988101 | LOCK PLUG | 2 | ||
| 4 | 4786841 | ROCKER ARM SCREW | 12 | ||
| 5 | 4851896 | ROCKER BRACKET | 6 | ||
| 6 | 16866376 | CIRCLIP | 2 | ||
| 7 | 61577214 | SPRING | 4 | ||
| 8 | 61577283 | HEXAGON BOLT | 4 | ||
| 9 | 98479642 | ROCKER ARM | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi12.00 | 8361SRi12 | view |
| 8361SRE11.00 | 8361SRE11 | view |
| 8361SRE11.00A001 | 8361SRE11 | view |
| 8361SRI12.00A800 | 8361SRi12 | view |
