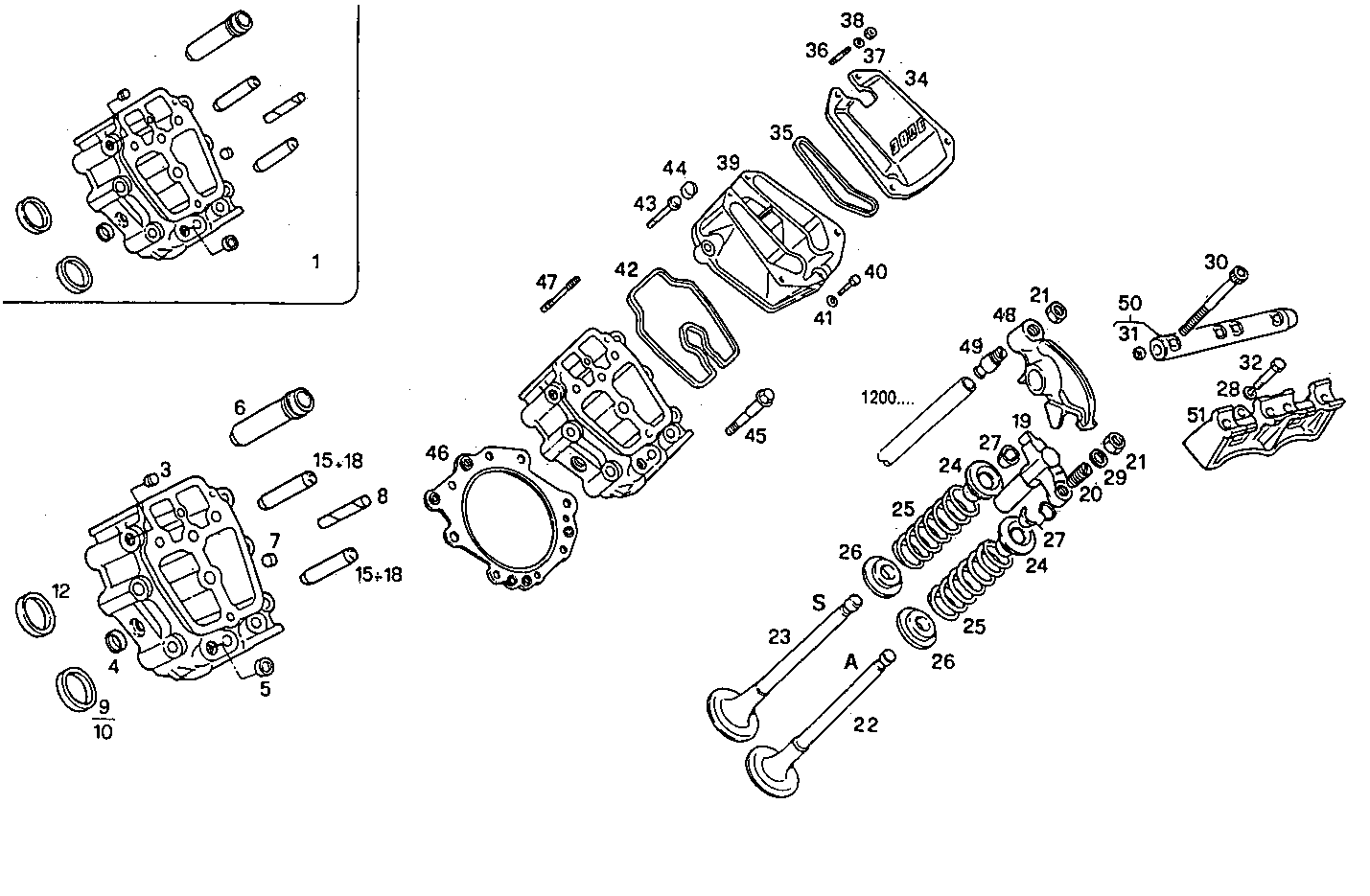

CYLINDER HEAD

Parts

#	Part number	Description	Quantity
1	98446332	CYLINDER HEAD	8
3	14326101	THREADED PLUG	16
4	14282370	LOCK PLUG	32
	504344694	LOCK PLUG	32
5	14282170	LOCK PLUG	8
6	98436424	NOZZLE HOLDER SEAT	8
7	14281970	LOCK PLUG	24
8	4680389	GUIDE ROD	16
9	98443967	VALVE SEAT STD.	16
10	99441885	VALVE SEAT STD.	16
12	4818203	VALVE SEAT STD.	16
15	4672515	VALVE GUIDE	32
16	4694449	VALVE GUIDE +0.04	32
17	4694450	VALVE GUIDE +0,2	32
18	4694451	VALVE GUIDE +0.24	32
19	4717389	SUPPORT	16
20	98470657	ROCKER ARM SCREW	16
21	98470656	ADJUSTING NUT	32
22	99485232	INLET VALVE	16
23	99444132	EXHAUST VALVE	16
24	4675983	SPRING CAP	32
25	4752607	ENGINE VALV.SPRING	32
26	98458427	SPRING CAP	32
27	14196370	VALVE CONE	64
28	17089574	WASHER	8
	17089575	WASHER	8
29	13397376	CIRCLIP	16
30	14308430	CYLIND-HEAD SCREW	32
31	14328101	LOCK PLUG	8
32	16605734	HEXAGON BOLT	8
34	98481107	COVER	8
35	98481106	HEAD COVER GASKET	16
36	13543321	STUD	32
37	13550301	WASHER	32
38	17037931	HEXAGON NUT	32
39	98481108	CYL. HEAD COVER	8
40	16606224	HEXAGON BOLT	16
41	12647101	WASHER	16
42	98481105	HEAD COVER GASKET	8
43	4696012	HEXAGON BOLT	8
44	4696013	CAP	8
45	4802718	CYL.HEAD STUD	64
46	1905795	CYL.HEAD GASKET	8
47	4825411	STUD	8
48	4727425	ROCKER ARM	16
49	98470655	ROCKER ARM SCREW	16
50	4705317	ROCKER SHAFT	8
51	4710783	ROCKER BRACKET	8
