| 1 |
99466903
|

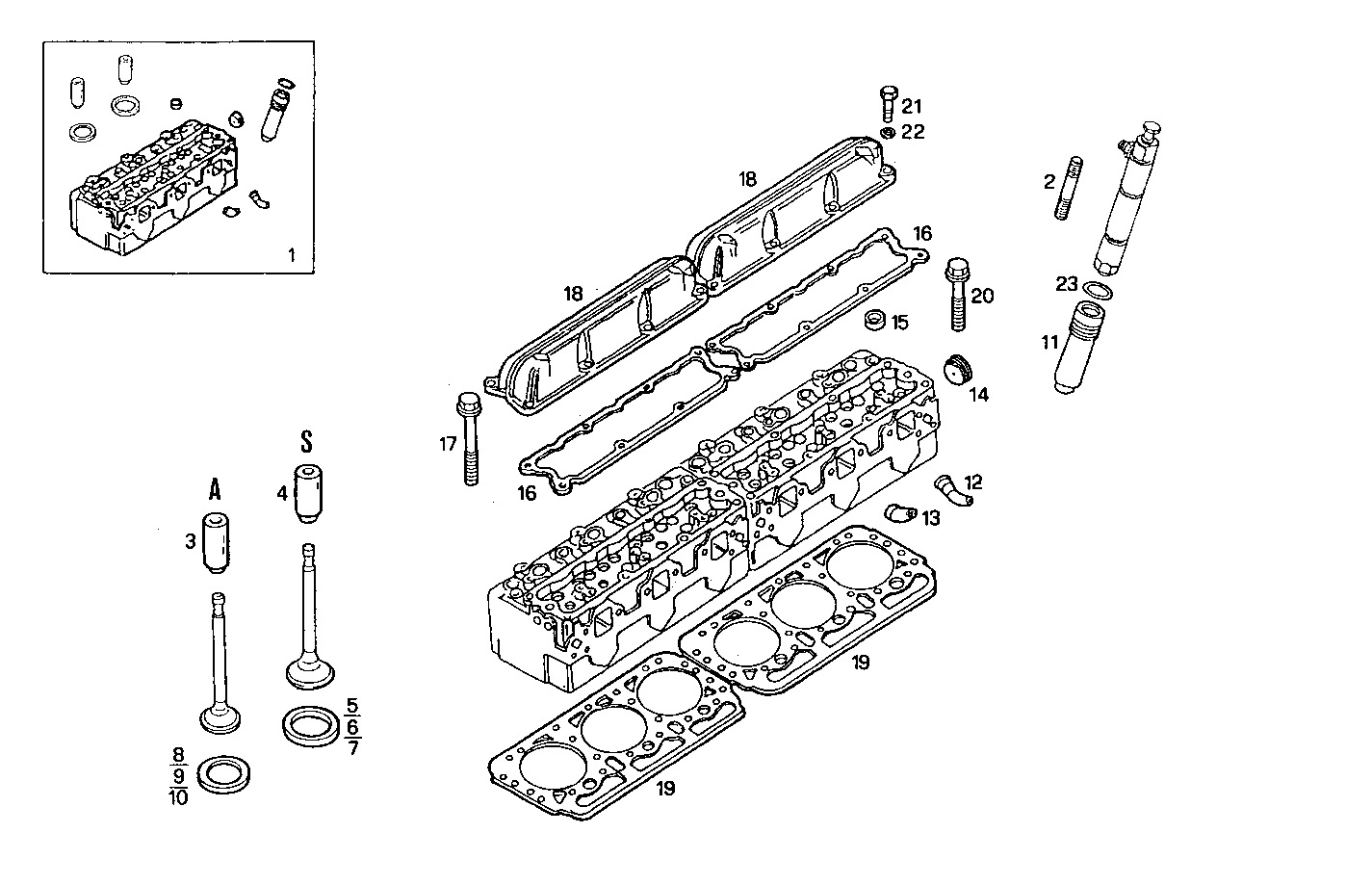

CYLINDER HEAD
|
|
2
|
|
| 2 |
13449930
|
STUD
|
|
12
|
|
| 3 |
4648237
|
VALVE GUIDE
|
|
6
|
|
| 4 |
4630923
|
VALVE GUIDE
|
|
6
|
|
| 5 |
98444350
|
VALVE SEAT STD.
|
|
6
|
|
|
4849707 |
VALVE SEAT STD. |
|
6 |
|
| 6 |
98444352
|
VALVE SEAT +0.20
|
|
6
|
|
| 7 |
98444351
|
VALVE SEAT +0.05
|
|
6
|
|
| 8 |
4673864
|
VALVE SEAT STD.
|
|
6
|
|
| 9 |
4673868
|
VALVE SEAT +0.20
|
|
6
|
|
| 10 |
4673869
|
VALVE SEAT +0.05
|
|
6
|
|
| 11 |
4817147
|
NOZZLE HOLDER SEAT
|
|
6
|
|
| 12 |
4638192
|
PIPE
|
|
6
|
|
| 13 |
4623879
|
PIPE
|
|
6
|
|
|
IVE4623879 |
PIPE |
|
6 |
|
| 14 |
61584412
|
LOCK PLUG
|
|
4
|
|
|
500376561 |
LOCK PLUG |
|
4 |
|
| 15 |
16991070
|
LOCK PLUG
|
|
16
|
|
| 16 |
98480127
|
HEAD COVER GASKET
|
|
2
|
|
| 17 |
4769616
|
CYL.HEAD STUD
|
|
4
|
|
| 18 |
98474544
|
CYL. HEAD COVER
|
|
2
|
|
| 19 |
99465715
|
CYL.HEAD GASKET
|
|
2
|
|
| 20 |
4769615
|
SCREW
|
|
30
|
|
| 21 |
16606424
|
HEXAGON BOLT
|
|
16
|
|
| 22 |
17094914
|
WASHER
|
|
16
|
|
| 23 |
17278981
|
O-RING
|
|
6
|
|
