| 1 |
99482728
|

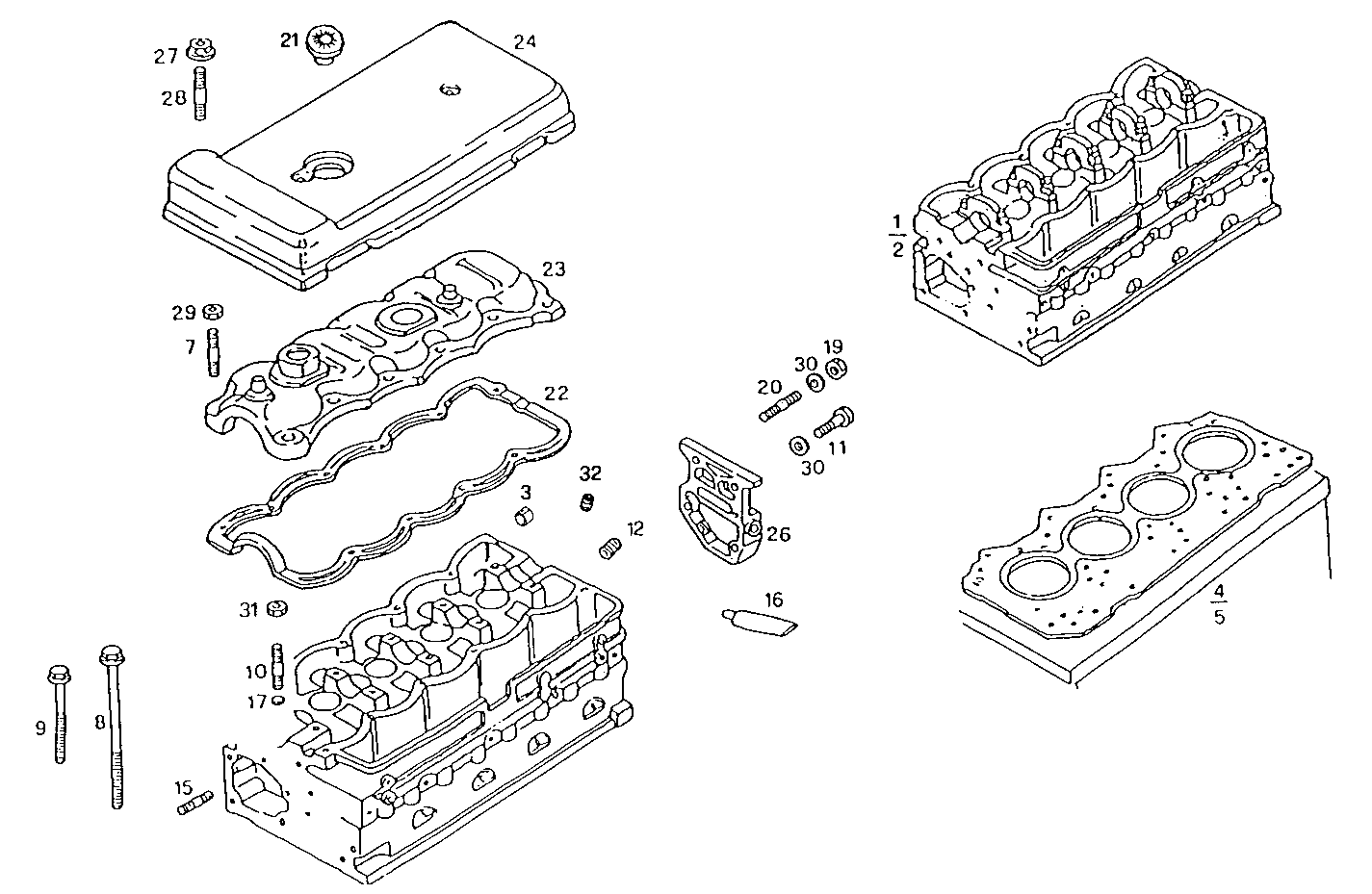

CYLINDER HEAD
|
|
1
|
|
|
2992256 |
CYLINDER HEAD |
|
1 |
|
| 2 |
99482729
|
CYLINDER HEAD
|
|
1
|
|
|
2992256 |
CYLINDER HEAD |
|
1 |
|
| 3 |
4279430
|
THREADED BUSH
|
|
4
|
|
| 4 |
98473478
|
CYL.HEAD GASKET
|
|
1
|
|
| 5 |
98474776
|
CYL.HEAD GASKET
|
|
1
|
|
| 7 |
17364824
|
STUD
|
|
12
|
|
| 8 |
4854648
|
CYL.HEAD STUD
|
|
10
|
|
| 9 |
4828150
|
CYL.HEAD STUD
|
|
12
|
|
| 10 |
13543924
|
STUD
|
|
10
|
|
| 11 |
16605624
|
HEXAGON BOLT
|
|
2
|
|
|
16605635 |
HEXAGON BOLT |
|
2 |
|
| 12 |
14326001
|
THREADED PLUG
|
|
1
|
|
| 15 |
16745124
|
STUD
|
|
4
|
|
| 16 |
1905685
|
ADHESIVE/STICKER
|
|
1
|
|
|
2992504 |
ADHESIVE/STICKER |
|
1 |
|
| 17 |
98466492
|
DOWEL PIN
|
|
10
|
|
| 19 |
17037931
|
HEXAGON NUT
|
|
3
|
|
| 20 |
16729724
|
STUD
|
|
3
|
|
| 21 |
98442027
|
OIL FILLER PLUG
|
|
1
|
|
|
504262827 |
OIL FILLER PLUG |
|
1 |
|
| 22 |
500317403
|
HEAD COVER GASKET
|
|
1
|
|
|
500388382 |
HEAD COVER GASKET |
|
1 |
|
| 23 |
98472290
|
CYL. HEAD COVER
|
|
1
|
|
| 24 |
98472302
|
CYL. HEAD COVER
|
|
1
|
|
| 26 |
500302236
|
COVER
|
|
1
|
|
| 27 |
98439382
|
NUT
|
|
2
|
|
| 28 |
16727624
|
STUD
|
|
2
|
|
| 29 |
17152721
|
NUT
|
|
12
|
|
| 30 |
17089474
|
SPRING WASHER
|
|
5
|
|
| 31 |
99486342
|
HEXAGON NUT
|
|
10
|
|
| 32 |
4279663
|
DOWEL PIN
|
|
4
|
|
