CYLINDER HEAD

Parts

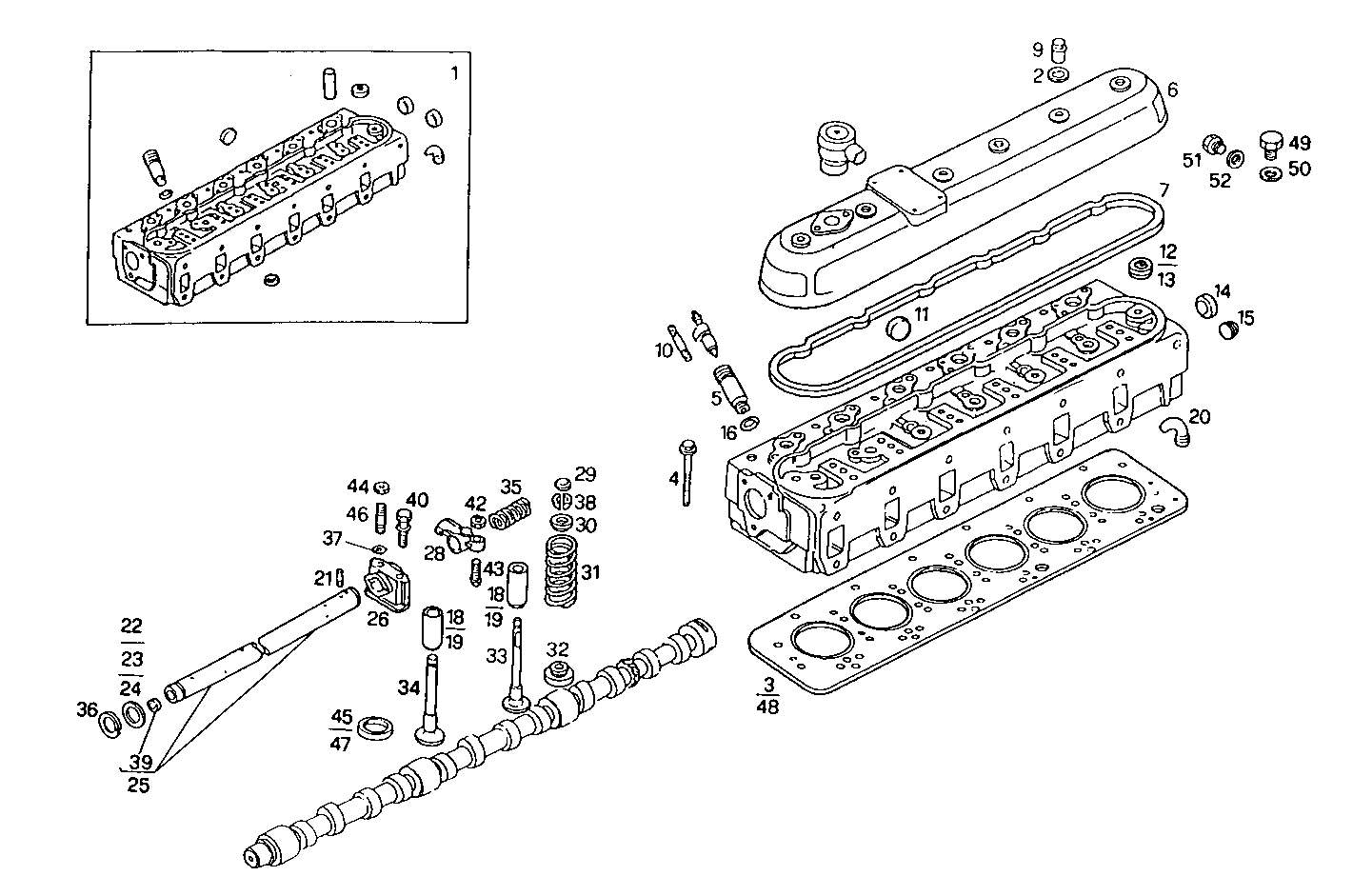

#	Part number	Description	Quantity
1	99431695	CYLINDER HEAD	1
2	98416134	WASHER	6
3	1907832	CYL.HEAD GASKET	1
4	4796457	CYL.HEAD STUD	26
5	4770859	NOZZLE HOLDER SEAT	6
6	99486569	CYL. HEAD COVER	1
7	98427866	HEAD COVER GASKET	1
9	98417659	NUT	6
10	500380521	STUD	12
11	14282770	LOCK PLUG	1
	16991170	LOCK PLUG	1
12	14282470	LOCK PLUG	12
	16990870	LOCK PLUG	12
13	14282170	LOCK PLUG	1
14	14282970	LOCK PLUG	1
	16991370	LOCK PLUG	1
15	14323911	LOCK PLUG	1
16	14453981	O-RING	12
18	4802126	VALVE GUIDE	12
19	4802127	VALVE GUIDE +0,2	12
20	4818862	WATER CONVEYOR	6
21	4846851	SPIGOT SCREW	1
22	4639661	SUPPORT RING	10
23	4570798	SUPPORT RING	4
24	4570799	SUPPORT RING	4
25	4838844	ROCKER SHAFT	1
26	4601295	ROCKER BRACKET	6
28	4848973	ROCKER ARM	12
29	4838680	VALVE CAP	12
30	4780558	SPRING CAP	12
31	4812347	ENGINE VALV.SPRING	12
32	4817424	SPRING CAP	12
33	1908408	INLET VALVE	6
	500042643	INLET VALVE	6
34	1908409	EXHAUST VALVE	6
	IVE1908409	EXHAUST VALVE	6
35	4601296	ROCKER ARM SPRING	5
36	11066676	CIRCLIP	2
37	17094904	WASHER	6
38	4819891	VALVE CONE	24
39	14328301	LOCK PLUG	2
	16987801	LOCK PLUG	2
40	98439855	HEXAGON BOLT	6
42	4338920	ADJUSTING NUT	12
43	4699783	ROCKER ARM SCREW	12
44	17037931	HEXAGON NUT	6
45	98495493	VALVE SEAT STD.	6
46	98458149	STUD	6
47	98495495	VALVE SEAT +0.05	6
48	1907838	CYL.HEAD GASKET	1
49	10300711	LOCK PLUG	1
	16992415	LOCK PLUG	1
50	4858609	WASHER	1
51	10300611	LOCK PLUG	1
	16992315	LOCK PLUG	1
52	4858608	SEAL GASKET	1
