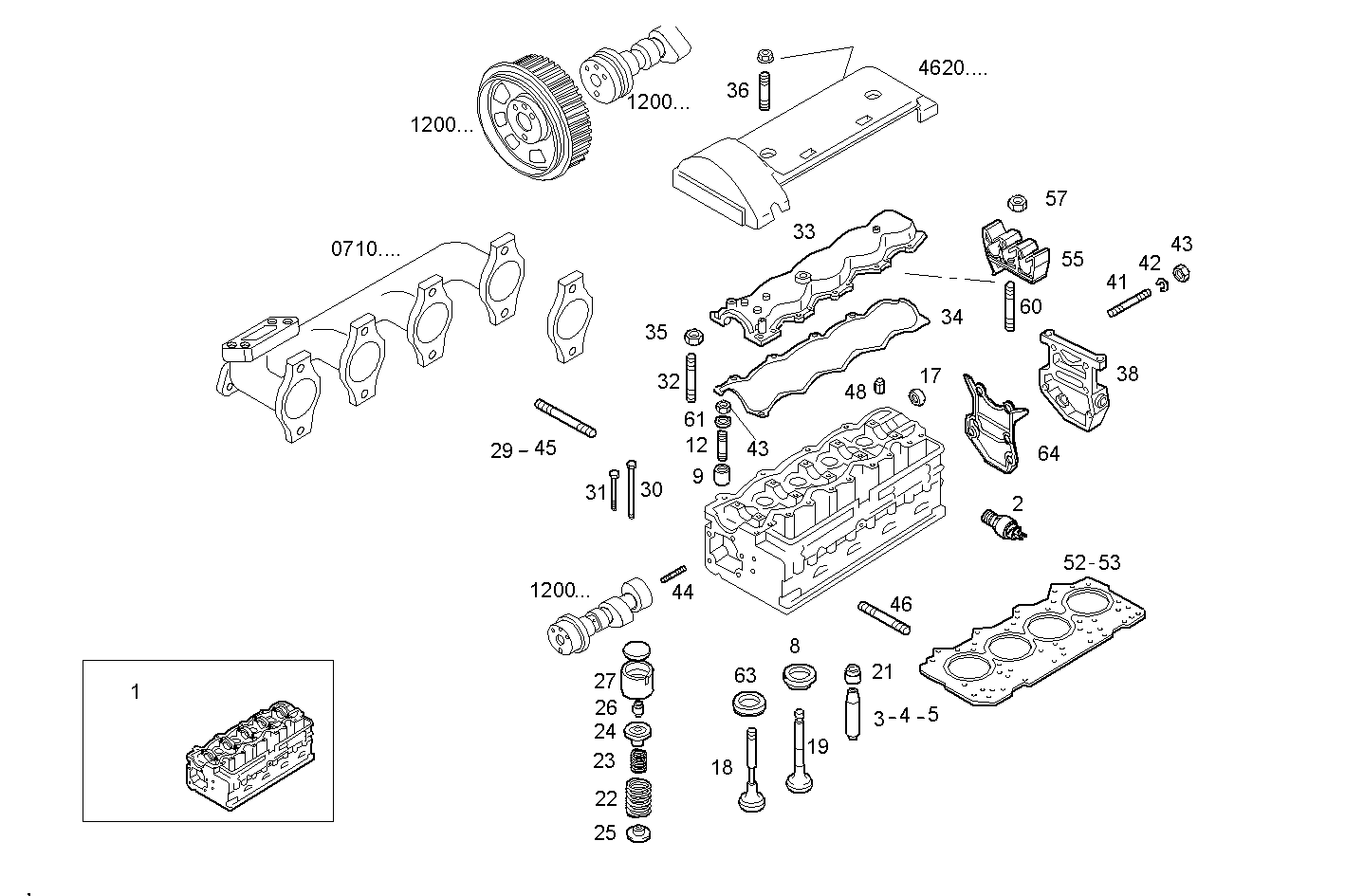

| 1 |
504007419
|
CYLINDER HEAD
|
|
1
|
|
| 2 |
99455420
|
TEMP. TRANSMITTER
|
|
1
|
|
| 3 |
4749397
|
VALVE GUIDE
|
|
8
|
|
| 4 |
4749398
|
VALVE GUIDE +0.10
|
|
8
|
|
| 5 |
4749399
|
VALVE GUIDE +0,2
|
|
8
|
|
| 8 |
500311085
|
VALVE SEAT STD.
|
|
4
|
|
| 9 |
98466492
|
DOWEL PIN
|
|
10
|
|
| 12 |
13543924
|
STUD
|
|
10
|
|
| 17 |
14326001
|
THREADED PLUG
|
|
1
|
|
| 18 |
7301820
|
INLET VALVE
|
|
4
|
|
|
2997868 |
INLET VALVE |
|
4 |
|
| 19 |
99432837
|
EXHAUST VALVE
|
|
4
|
|
| 21 |
40101573
|
CAP
|
|
8
|
|
| 22 |
4734533
|
ENGINE VALV.SPRING
|
|
8
|
|
| 23 |
4723186
|
ENGINE VALV.SPRING
|
|
8
|
|
| 24 |
4734531
|
SPRING CAP
|
|
8
|
|
| 25 |
4749396
|
SPRING CAP
|
|
8
|
|
|
42574262 |
SPRING CAP |
|
8 |
|
| 26 |
4733465
|
VALVE CONE
|
|
16
|
|
| 27 |
4733350
|
VALVE TAPPET
|
|
8
|
|
| 29 |
16746934
|
STUD
|
|
4
|
|
| 30 |
4854648
|
CYL.HEAD STUD
|
|
14
|
|
| 31 |
99442951
|
CYL.HEAD STUD
|
|
8
|
|
| 32 |
17364724
|
STUD
|
|
16
|
|
| 33 |
500316259
|
CYL. HEAD COVER
|
|
1
|
|
| 34 |
500388381
|
HEAD COVER GASKET
|
|
1
|
|
| 35 |
17152721
|
NUT
|
|
16
|
|
| 36 |
16727624
|
STUD
|
|
6
|
|
| 38 |
500359750
|
COVER
|
|
1
|
|
| 41 |
16729724
|
STUD
|
|
3
|
|
| 42 |
17089474
|
SPRING WASHER
|
|
5
|
|
| 43 |
17037931
|
HEXAGON NUT
|
|
13
|
|
| 44 |
16745124
|
STUD
|
|
4
|
|
| 45 |
16746734
|
STUD
|
|
12
|
|
| 46 |
13543224
|
STUD
|
|
6
|
|
| 48 |
4279430
|
THREADED BUSH
|
|
4
|
|
| 52 |
99432354
|
CYL.HEAD GASKET
|
|
1
|
|
| 53 |
99460983
|
CYL.HEAD GASKET
|
|
1
|
|
| 55 |
500375126
|
FASTENING BRACKET
|
|
3
|
|
| 57 |
17044621
|
HEXAGON NUT
|
|
5
|
|
|
17044625 |
HEXAGON NUT |
|
5 |
|
| 60 |
500309888
|
STUD
|
|
3
|
|
| 61 |
4727119
|
WASHER
|
|
10
|
|
| 63 |
500311083
|
VALVE SEAT STD.
|
|
4
|
|
| 64 |
500376326
|
FLAT ENGINE GASKET
|
|
1
|
|
