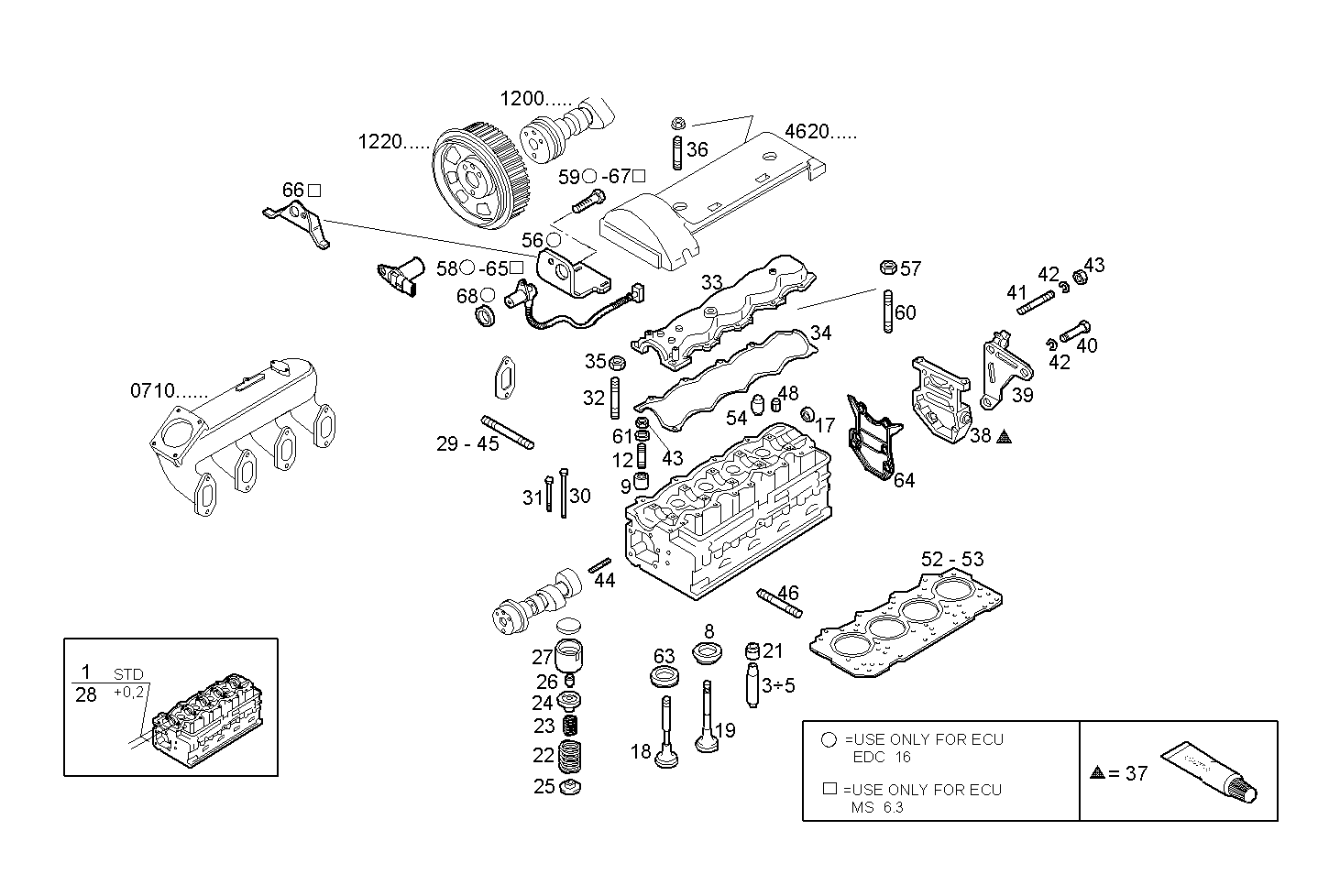

CYLINDER HEAD

Assembly ID: 0600.203

CYLINDER HEAD

Parts

# Part number Description Note Quantity
1 504007419 CYLINDER HEAD 1
3 4749397 VALVE GUIDE 8
4 4749398 VALVE GUIDE +0.10 8
5 4749399 VALVE GUIDE +0,2 8
8 500311085 VALVE SEAT STD. 4
9 98466492 DOWEL PIN 10
12 13543924 STUD 10
17 14326001 THREADED PLUG 1
18 7301820 INLET VALVE 4
19 99432837 EXHAUST VALVE 4
21 40101573 CAP 8
22 4734533 ENGINE VALV.SPRING 8
23 4723186 ENGINE VALV.SPRING 8
24 4734531 SPRING CAP 8
25 4749396 SPRING CAP 8
26 4733465 VALVE CONE 16
27 4733350 VALVE TAPPET 8
28 504007420 CYLINDER HEAD 1
29 16746934 STUD 4
30 4854648 CYL.HEAD STUD 14
31 99442951 CYL.HEAD STUD 8
32 17364724 STUD 1
33 99462587 CYL. HEAD COVER 1
34 500388381 HEAD COVER GASKET 1
35 17152721 NUT 16
36 16727624 STUD 6
37 93162432 ADHESIVE/STICKER 1
38 500319459 COVER 1
39 500334777 FASTENING BRACKET 1
40 16605624 HEXAGON BOLT 2
41 16729724 STUD 3
42 17089474 SPRING WASHER 5
43 17037931 HEXAGON NUT 13
44 16745124 STUD 4
45 16746734 STUD 12
46 13453221 STUD 6
48 4279430 THREADED BUSH 4
52 99432354 CYL.HEAD GASKET 1
53 99460983 CYL.HEAD GASKET 1
54 4279663 DOWEL PIN 4
56 504087758 RETAINER 1
57 17044621 HEXAGON NUT 5
58 504048261 SENSOR 1
59 16585724 HEXAGON BOLT 1
60 500309888 STUD 3
61 4727119 WASHER 10
63 500311083 VALVE SEAT STD. 4
64 500376326 FLAT ENGINE GASKET 1
65 500343018 ELECTRON.TRANSMITT 1
66 500375126 FASTENING BRACKET 1
67 16603624 HEXAGON BOLT 1
68 42546366 O-RING 1

Applies to engines

Engine Family
8140.43S.4400 8140.43 view
8140SRC30.40A001 8140SRC30 view
