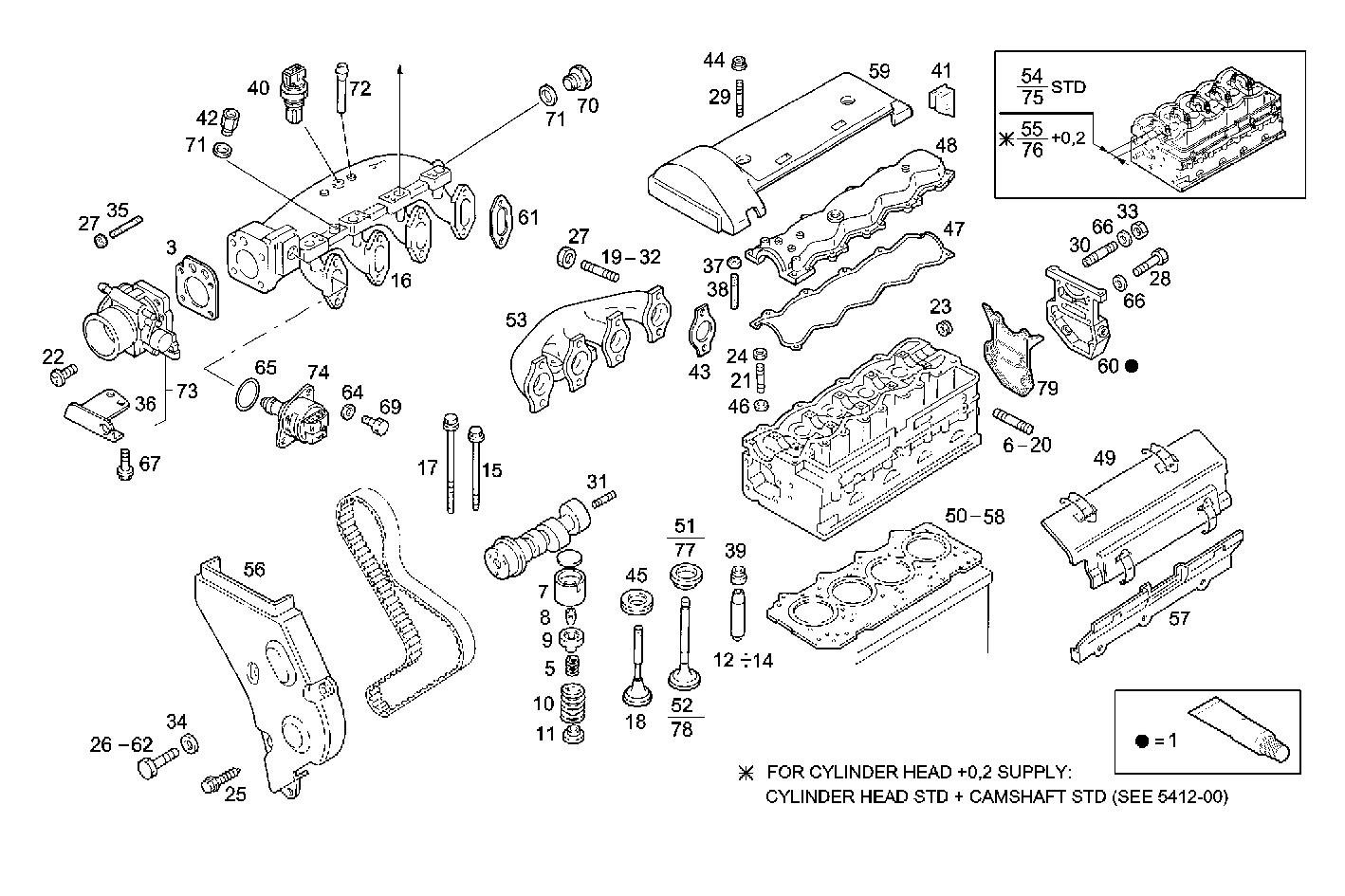

CYLINDER HEAD

Assembly ID: 0600.208

CYLINDER HEAD

Parts

# Part number Description Note Quantity
1 2992504 ADHESIVE/STICKER 1
3 500309791 INTAKE ELBOW GASK. 1
5 4723186 ENGINE VALV.SPRING 8
6 16729324 STUD 3
7 4733350 VALVE TAPPET 8
8 4733465 VALVE CONE 16
9 4734531 SPRING CAP 8
10 4734533 ENGINE VALV.SPRING 8
11 4749396 SPRING CAP 8
12 4749397 VALVE GUIDE 8
13 4749398 VALVE GUIDE +0.10 8
14 4749399 VALVE GUIDE +0,2 8
15 99442951 CYL.HEAD STUD 8
16 504086181 INTAKE ELBOW 1
17 4854648 CYL.HEAD STUD 14
18 98468338 INLET VALVE 4
19 16746624 STUD 8
20 13543224 STUD 6
21 13543924 STUD 10
22 500343060 HEXAGON BOLT 4
23 14326001 THREADED PLUG 1
24 99486342 HEXAGON NUT 10
25 16597225 HEXAGON BOLT 1
26 16585925 HEXAGON BOLT 1
27 99486343 HEXAGON NUT 16
28 16605624 HEXAGON BOLT 2
29 16727624 STUD 6
30 16729724 STUD 3
31 16745124 STUD 4
32 16746734 STUD 8
33 17037931 HEXAGON NUT 3
34 12647724 WASHER 2
35 4859827 STUD 4
36 500340518 RETAINER 1
37 17152725 NUT 16
38 17364724 STUD 16
39 40101573 CAP 8
40 500309797 TRANSMITTER 1
41 500326627 CHOCK 1
42 500340467 BULKHEAD STR.COUPL 1
43 98434020 EXH. MANIFOLD GKT 4
44 98439382 NUT 2
45 98487340 VALVE SEAT STD. 4
46 98466492 DOWEL PIN 10
47 500388381 HEAD COVER GASKET 1
48 99462587 CYL. HEAD COVER 1
49 99471006 SIDE COVER 1
50 99432354 CYL.HEAD GASKET 1
51 500309787 VALVE SEAT STD. 4
52 99432837 EXHAUST VALVE 4
53 500309750 EXHAUST MANIFOLD 1
54 500374383 CYLINDER HEAD 1
55 500330029 CYLINDER HEAD 1
56 504010963 COVER 1
57 500316894 SIDE COVER 1
58 99460983 CYL.HEAD GASKET 1
59 99471017 CYL. HEAD COVER 1
60 500326577 COVER 1
61 98425767 INTAKE ELBOW GASK. 4
62 99485223 HEXAGON BOLT 1
64 17094504 WASHER 2
65 17281980 O-RING 1
66 17089474 SPRING WASHER 5
67 16677735 HEXAGON BOLT 2
69 16602024 SCREW 2
70 16992511 THREADED PLUG 1
71 16508360 WASHER 2
72 500330891 CONNECTION PIPE 1
73 2991664 VALVE HOUSING 1
74 500309796 GAS ENGINE ACTUATOR 1
75 500374383 CYLINDER HEAD 1
76 500374385 CYLINDER HEAD 1
77 500359737 VALVE SEAT STD. 4
78 500327442 EXHAUST VALVE 4
79 500376326 FLAT ENGINE GASKET 1

Applies to engines

Engine Family
8149.03.3791 8149.03 CNG view
8149.03.3795 8149.03 CNG view
