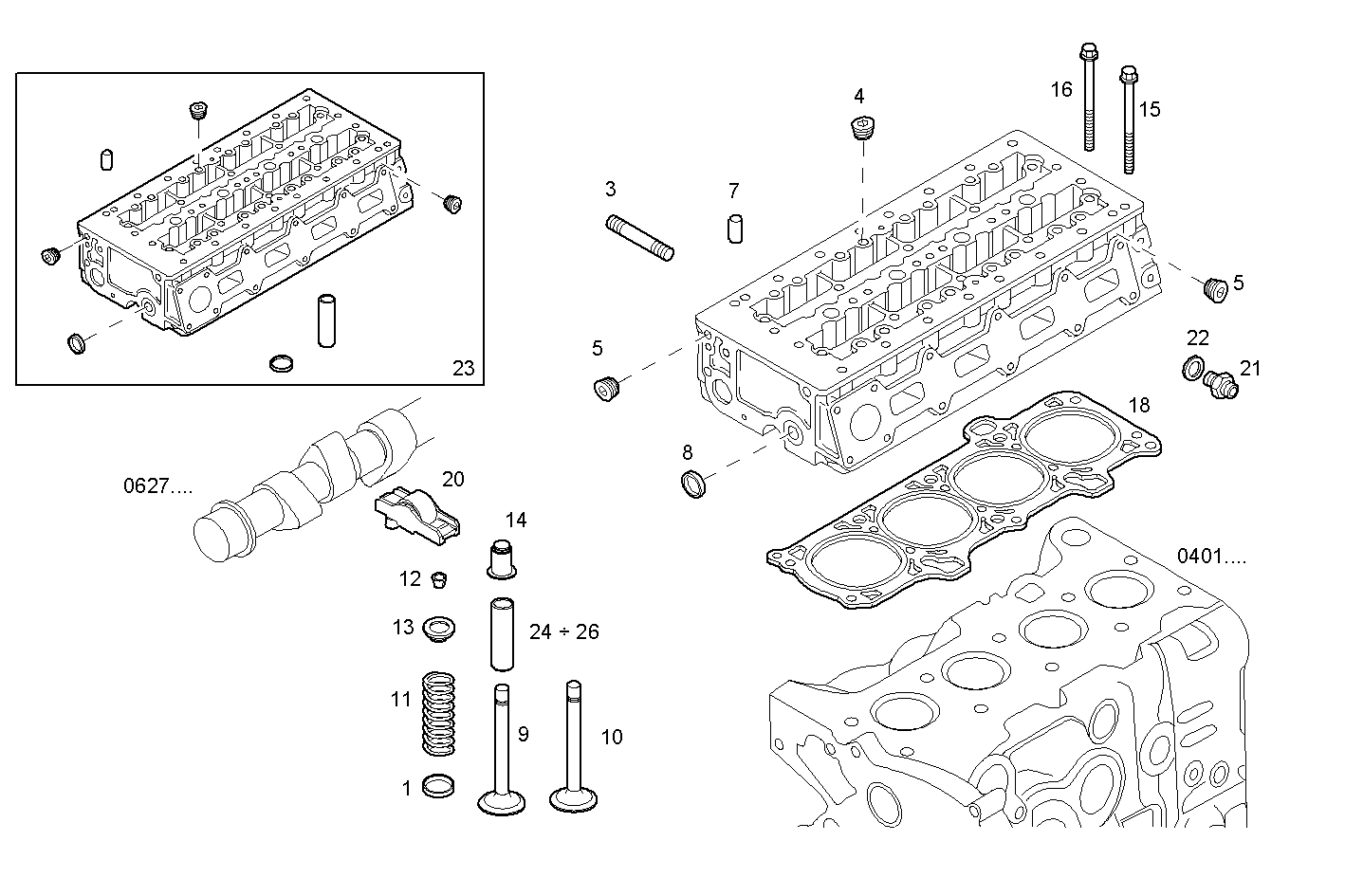

CYLINDER HEAD

Assembly ID: 0610.000

CYLINDER HEAD

Parts

# Part number Description Note Quantity
1 500387704 VALVE SEAT STD. 16
3 500348747 STUD 10
4 504051238 THREADED PLUG 6
5 504051236 THREADED PLUG 2
6 504051237 THREADED PLUG 3
7 500389777 DOWEL PIN 2
8 16988901 LOCK PLUG 2
9 500362855 INLET VALVE 8
10 500362856 EXHAUST VALVE 8
11 500348686 ENGINE VALV.SPRING 16
12 14194670 VALVE CONE 32
13 500348685 SPRING CAP 16
14 500395378 CAP 16
15 500347039 CYL.HEAD STUD 6
16 500347040 CYL.HEAD STUD 4
18 500387068 CYL.HEAD GASKET 1
20 504014269 ROCKER ARM 16
21 504033677 THREADED UNION 1
22 4858608 SEAL GASKET 1
23 504049268 CYLINDER HEAD 1
24 504053804 VALVE GUIDE 16
25 504053805 VALVE GUIDE +0.10 16
26 504053806 VALVE GUIDE +0.25 16

Applies to engines

Engine Family
F1AE0481B*A301 SOFIM HPI 2.3L - EURO 3 view
F1AE0481B*B301 SOFIM HPI 2.3L - EURO 3 view
F1AE0481A*A002 - C SOFIM HPI 2.3L - EURO 3 view
F1AE0481B*A002 - C SOFIM HPI 2.3L - EURO 3 view
S23ENSC20.10A004 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A006 - C SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A008 - C SOFIM HPI 2.3L - EURO 3 view
S23ENSC20.10A005 SOFIM HPI 2.3L - EURO 3 view
S23ENSC20.10A006 SOFIM HPI 2.3L - EURO 3 view
S23ENSC20.10A007 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A005 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A007 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A009 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A010 SOFIM HPI 2.3L - EURO 3 view
F1AE0481A*A002 - D SOFIM HPI 2.3L - EURO 3 view
F1AE0481B*A002 - D SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A006 - D SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A008 - D SOFIM HPI 2.3L - EURO 3 view
F1AE0481L*A001 SOFIM HPI 2.3L - TIER 2 view
S23ENSC24.20A001 SOFIM HPI 2.3L - TIER 2 view
F1AE0481G*A001 SOFIM HPI 2.3L - EURO 4 view
F1AE0481B*C001 SOFIM HPI 2.3L - EURO 3 view
F1AE0481G*A003 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.00A001 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.00A002 SOFIM HPI 2.3L - EURO 4 view
F1AE0481G*A009 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A001 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A002 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A003 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A004 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A008 SOFIM HPI 2.3L - EURO 4 view
F1AE0481G*A007 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.30A004 SOFIM HPI 2.3L - EURO 4 view
F1AE0481F*A101 SOFIM HPI 2.3L - EURO 4 view
