| 1 |
504254092
|

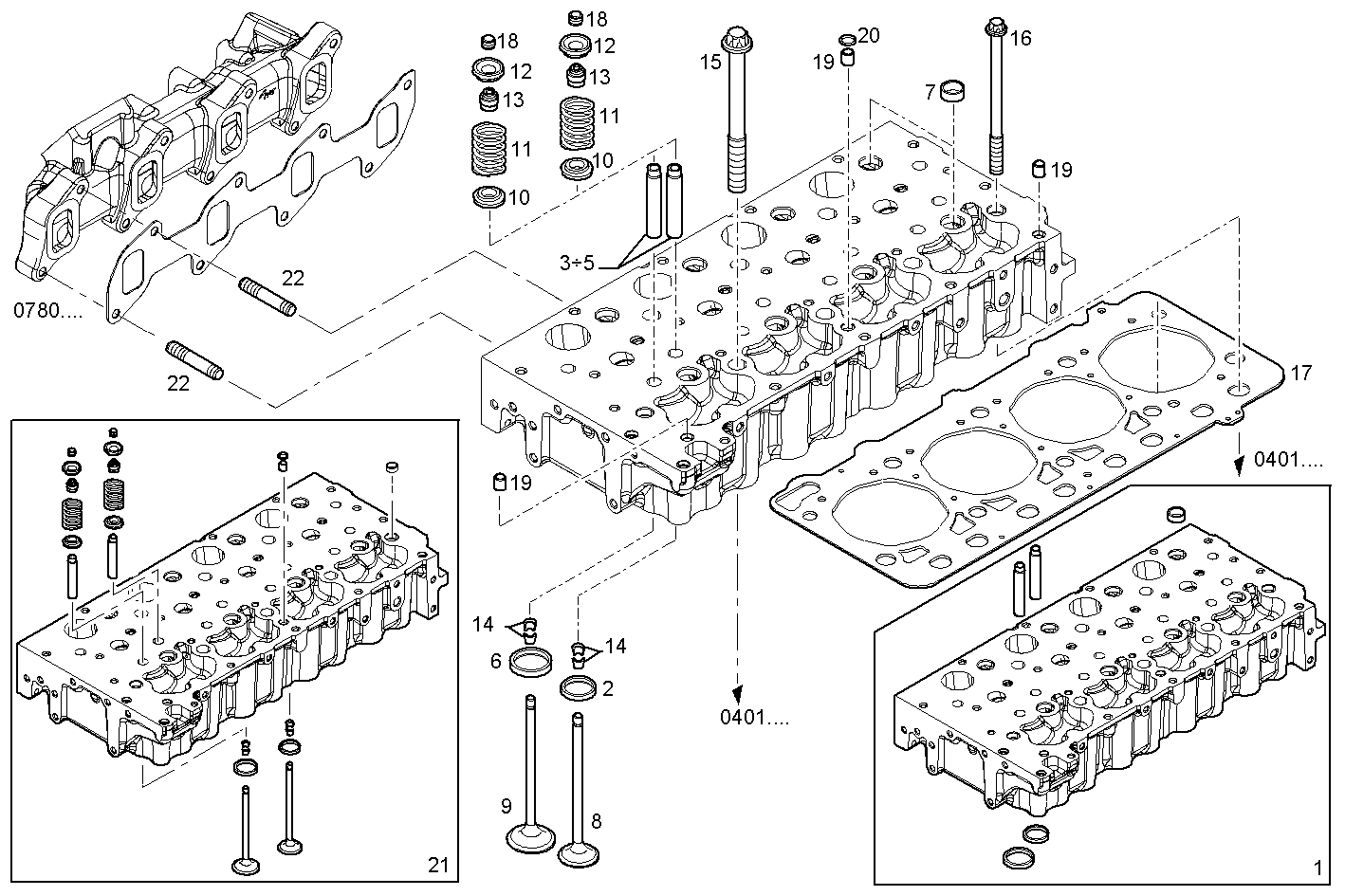

CYLINDER HEAD
|
|
1
|
|
| 2 |
504162949
|
VALVE SEAT STD.
|
|
4
|
|
| 3 |
4749397
|
VALVE GUIDE
|
|
8
|
|
| 4 |
4749398
|
VALVE GUIDE +0.10
|
|
8
|
|
| 5 |
4749399
|
VALVE GUIDE +0,2
|
|
8
|
|
| 6 |
504254094
|
VALVE SEAT STD.
|
|
4
|
|
| 7 |
16988301
|
LOCK PLUG
|
|
8
|
|
| 8 |
504162958
|
INLET VALVE
|
|
4
|
|
|
504387778 |
INLET VALVE |
|
4 |
|
| 9 |
504162959
|
EXHAUST VALVE
|
|
4
|
|
| 10 |
504178119
|
SPRING CAP
|
|
8
|
|
| 11 |
4812347
|
ENGINE VALV.SPRING
|
|
8
|
|
| 12 |
4780558
|
SPRING CAP
|
|
8
|
|
| 13 |
40101574
|
CAP
|
|
8
|
|
|
40101573 |
CAP |
|
8 |
|
| 14 |
14196670
|
VALVE CONE
|
|
16
|
|
| 15 |
504081521
|
HEXAGON BOLT
|
|
6
|
|
| 16 |
504081533
|
HEXAGON BOLT
|
|
4
|
|
| 17 |
504190831
|
CYL.HEAD GASKET
|
|
1
|
|
| 18 |
4838680
|
VALVE CAP
|
|
8
|
|
| 19 |
99435557
|
DOWEL PIN
|
|
3
|
|
| 20 |
17281481
|
O-RING
|
|
1
|
|
| 21 |
8099020
|
CYLINDER HEAD
|
|
1
|
|
| 22 |
500380521
|
STUD
|
|
8
|
|
