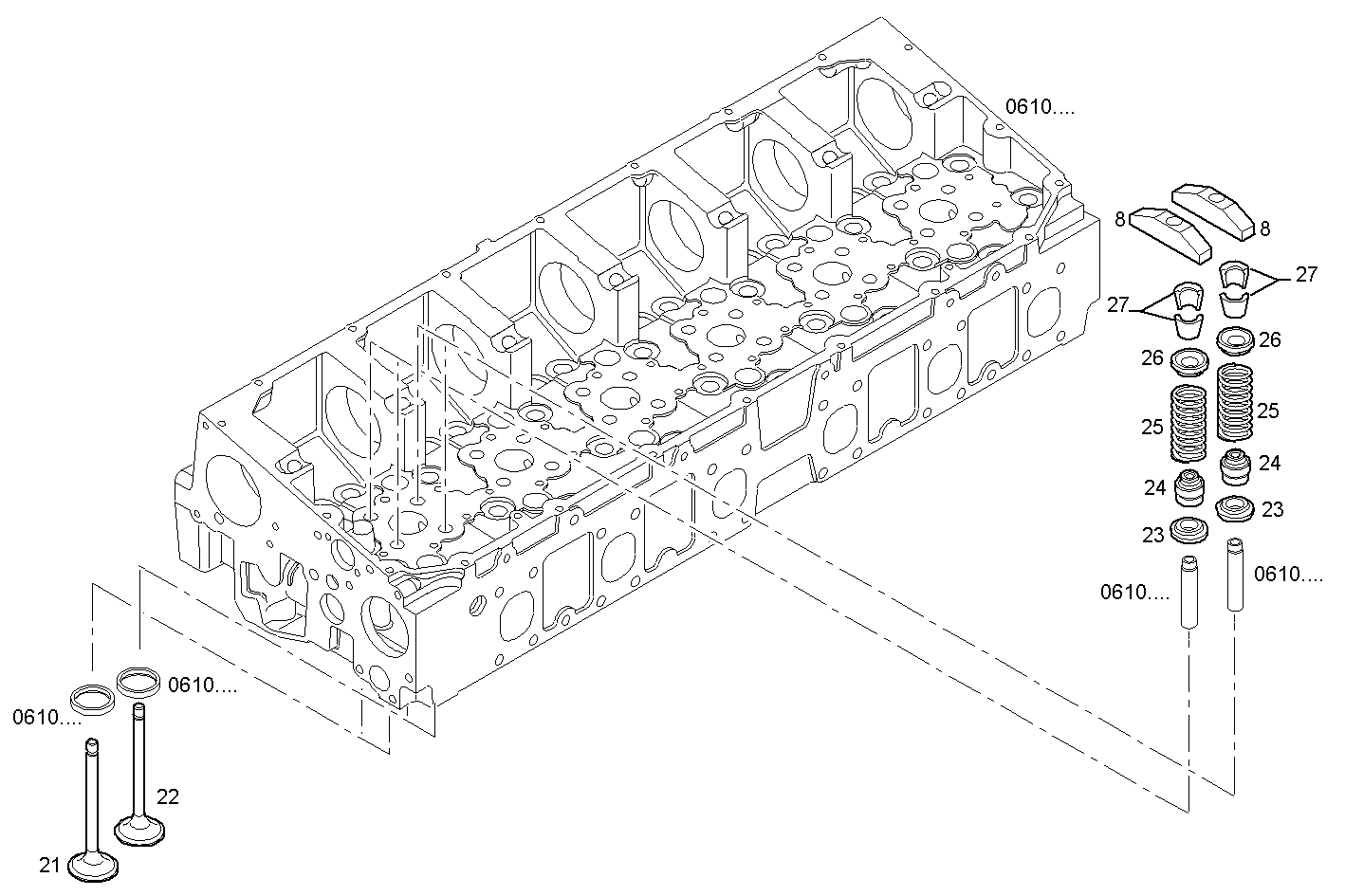

ASSEMBLY VALVE
Assembly ID: 0613.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 21 | 500354685 | INLET VALVE | 12 | ||
| 22 | 504078215 | EXHAUST VALVE | 12 | ||
| 23 | 504107800 | SPRING CAP | 24 | ||
| 24 | 40101573 | CAP | 24 | ||
| 25 | 504099998 | ENGINE VALV.SPRING | 24 | ||
| 26 | 98471361 | SPRING CAP | 24 | ||
| 27 | 98499819 | VALVE CONE | 48 | ||
| 34 | 500387999 | VALVE BRIDGE | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0684A*B002 | CURSOR 8 - TIER 2 | view |
| C78ENTD20.00 | CURSOR 8 - TIER 2 | view |
| F2BE0684A*B001 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00 | CURSOR 8 - TIER 2 | view |
| F2BE0687A*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0687B*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0687C*B301 | CURSOR 8 - TIER 2 | view |
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM50.11A001 | CURSOR 8 | view |
| F2BE0684A*B003 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00A001 | CURSOR 8 - TIER 2 | view |
| F2BE0685A*B301 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.00 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00A002 | CURSOR 8 - TIER 2 | view |
| C78ENTM30.10-D 01/04 | CURSOR 8 | view |
| F2BE0686C*B201 | CURSOR 8 | view |
| CURSOR78TE2.A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A850 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.R990 | GECURSOR 8 - TIER 2 | view |
| C78ENTM30.10A002 | CURSOR 8 | view |
| F2BE0686A*B111 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| F2BE0685A*B302 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.10 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1R990 | GECURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A002 | CURSOR 8 - TIER 2 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENTD20.00A800 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A559 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A551 | GECURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A71M | GECURSOR 8 - TIER 2 | view |
| F2BE0681A*BC13 | CURSOR 8 - EURO 3 | view |
| C78ENTC26.00A004 | CURSOR 8 - EURO 3 | view |
| C78ENSM20.10 | CURSOR 8 | view |
| C78ENAM12.00 | CURSOR 8 | view |
| F2BE0682F*B403 | CURSOR 8 - EURO 3 | view |
| PUC78ENTD20.00A100 | CURSOR 8 - TIER 2 | view |
| C78ENTC25.00A003 | CURSOR 8 - EURO 3 | view |
| C78ENSM20.30 | CURSOR 8 | view |
| GECURSOR250ES.R990 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A001 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A551 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A71M | GECURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A001 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A002 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A559 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.S550 | CURSOR 8 - 2002/88/CE | view |
| C78ENTF40.00 | CURSOR 8 - TIER 2 | view |
| C78ENTF41.00 | CURSOR 8 - TIER 2 | view |
| F2BE3681B*U056 | CURSOR 8 - EURO 5 | view |
| C78ENTM55.12 | CURSOR 8 | view |
| F2BE4683A*E001 | CURSOR 8 CE 04/26 STAGE III B | view |
| F2BE0687A*B302 | CURSOR 8 - TIER 2 | view |
| C78ENTD20.20 | CURSOR 8 - TIER 2 | view |
| PUC78ENTD20.20A100 | CURSOR 8 - TIER 2 | view |
