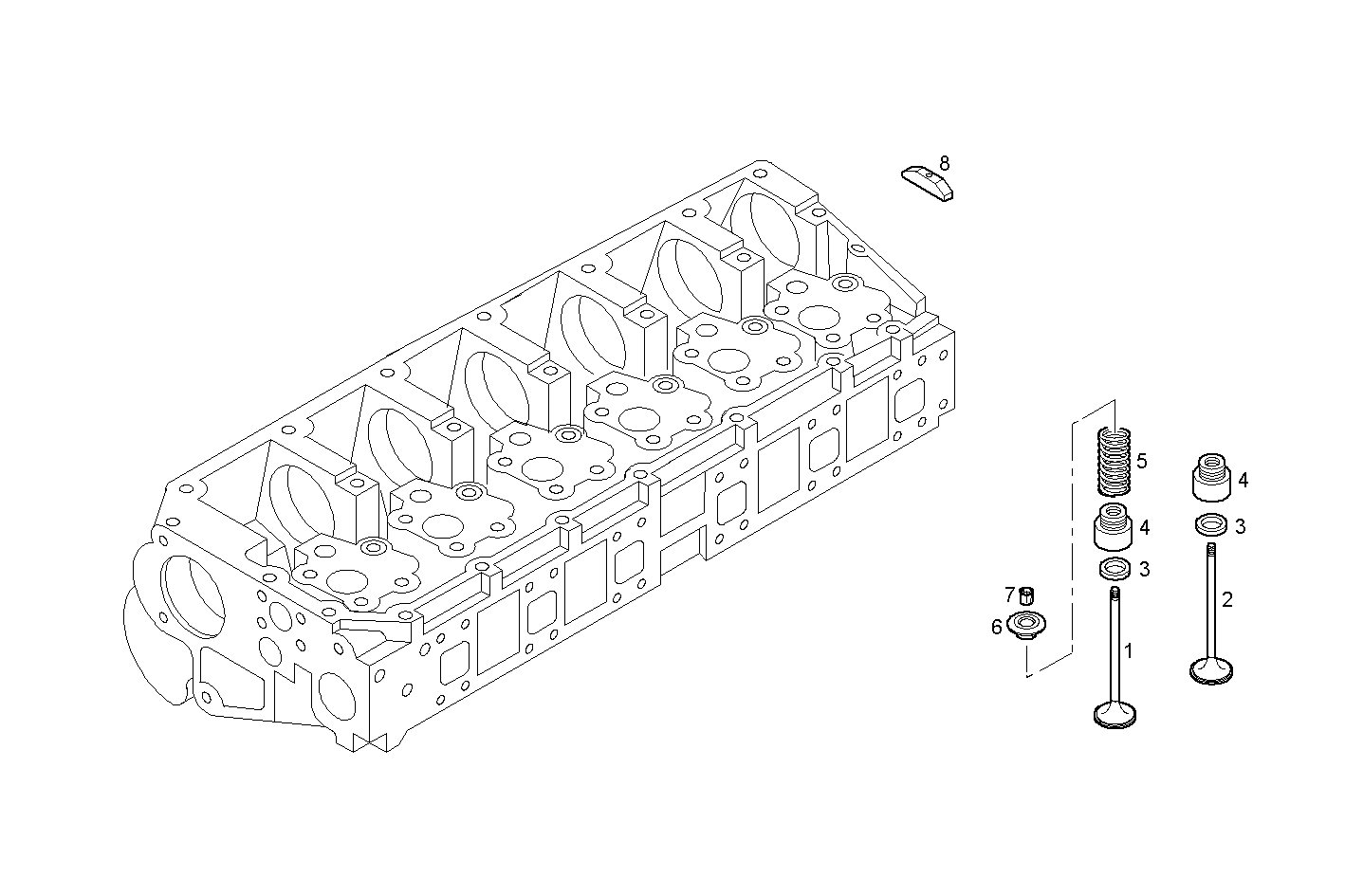

ASSEMBLY VALVE
Assembly ID: 0613.002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500354685 | INLET VALVE | 12 | ||
| 2 | 504027630 | EXHAUST VALVE | 12 | ||
| 3 | 504107800 | SPRING CAP | 24 | ||
| 4 | 40101573 | CAP | 24 | ||
| 5 | 504099998 | ENGINE VALV.SPRING | 24 | ||
| 6 | 98471361 | SPRING CAP | 24 | ||
| 7 | 98499819 | VALVE CONE | 48 | ||
| 8 | 500387999 | VALVE BRIDGE | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0642A*A002 | CURSOR 8 CNG | view |
| F2BE0642A*A003 | CURSOR 8 CNG | view |
| F2BE0642B*A001 | CURSOR 8 CNG | view |
| F2BE0642F*B007 | CURSOR 8 CNG | view |
| F2BE0642A*A009 | CURSOR 8 CNG | view |
| C78ENTG20.00A001 | CURSOR 8 CNG | view |
