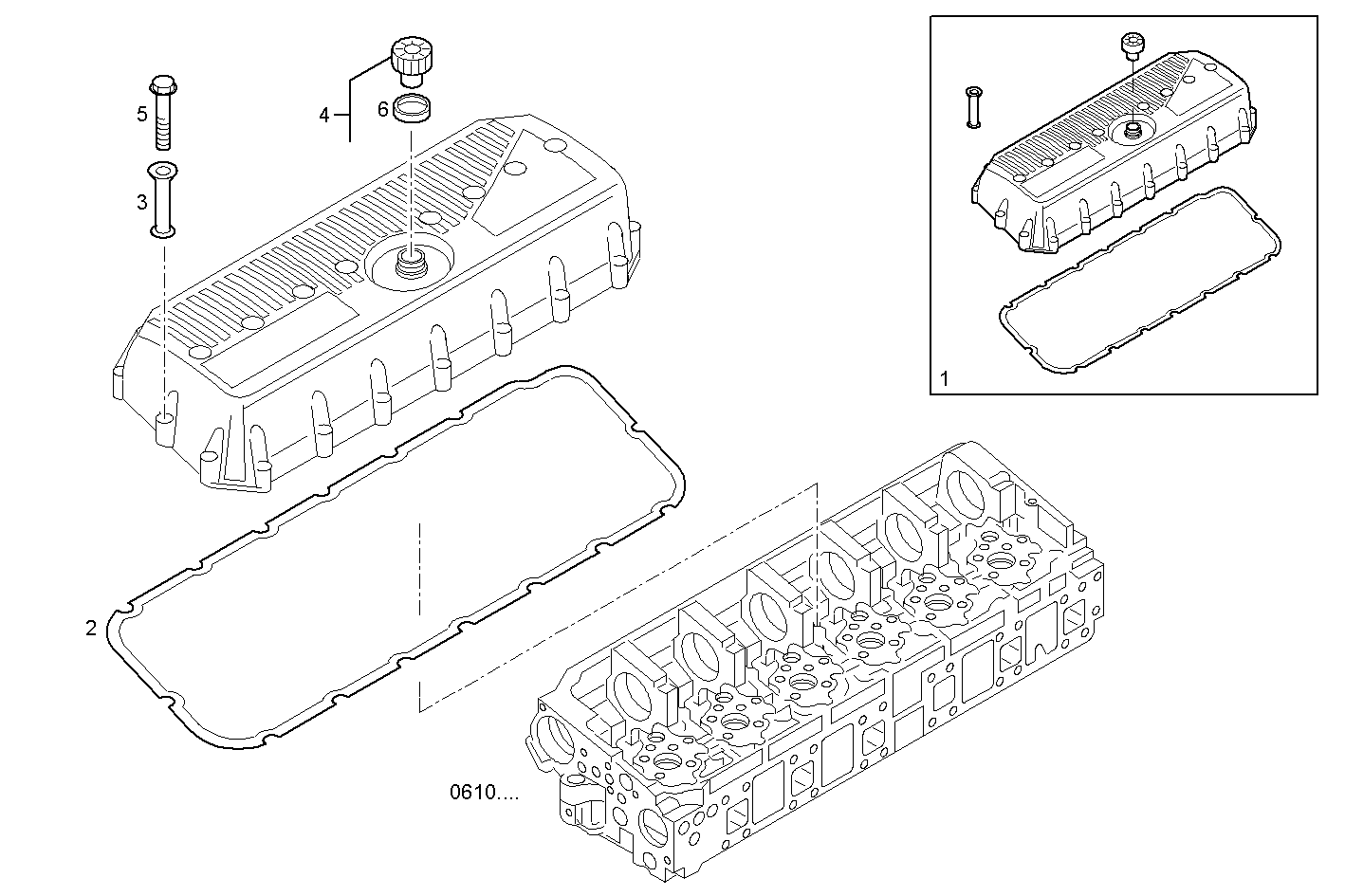

CYL. HEAD COVERS
Assembly ID: 0630.002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504041315 | CYL. HEAD COVER | 1 | ||
| 2 | 500309014 | HEAD COVER GASKET | 1 | ||
| 3 | 99446693 | SPACER BUSH | 24 | ||
| 4 | 98442027 | OIL FILLER PLUG | 1 | ||
| 5 | 16591925 | HEXAGON BOLT | 24 | ||
| 6 | 98412146 | GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684A*B002 | CURSOR 13 - TIER 2 | view |
| F3BE0684E*B003 | CURSOR 13 - TIER 2 | view |
| F3BE0684A*B001 | CURSOR 13 - TIER 2 | view |
| F3BE0684E*B001 | CURSOR 13 - TIER 2 | view |
| F3BE0686A*B101 | CURSOR 13 | view |
| C13ENTM77.10 | CURSOR 13 | view |
| F3BE0686C*B201 | CURSOR 13 | view |
| C13ENTM50.10 | CURSOR 13 | view |
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENAM19.00 | CURSOR 13 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| F3BE0684J*E902 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684A*E001 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684N*E904 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E903 | CURSOR 13 - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| C13ENTM83.10 | CURSOR 13 | view |
| F3BE0684N*E906 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| C13ENTM50.30 | CURSOR 13 | view |
| C13ENTM50.12 | CURSOR 13 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
