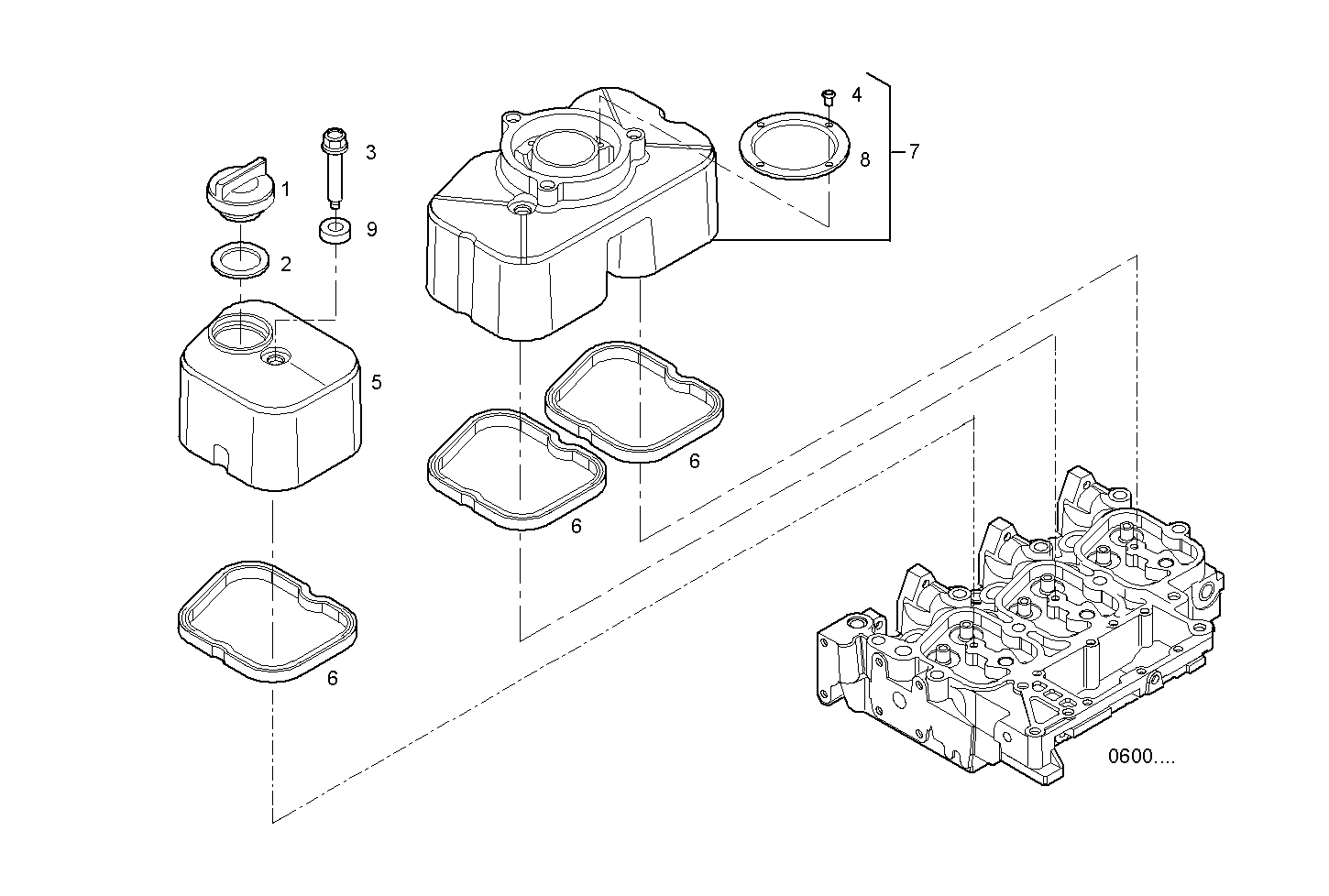

CYL. HEAD COVERS
Assembly ID: 0630.016
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4895202 | OIL FILLER PLUG | 1 | ||
| 2 | 4895296 | SEAL GASKET | 1 | ||
| 3 | 4895214 | HEXAGON BOLT | 3 | ||
| 4 | 16784504 | SCREW | 4 | ||
| 5 | 504065039 | CYL. HEAD COVER | 1 | ||
| 6 | 504053522 | HEAD COVER GASKET | 3 | ||
| 7 | 2830784 | CYL. HEAD COVER | 1 | ||
| 8 | 2830775 | CENTERING RING | 1 | ||
| 9 | 4895360 | DOWEL | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE0354C*D601 | NEF 3 - TIER 2 | view |
| F4CE0354A*D600 | NEF 3 - TIER 2 | view |
| F4CE0354C*D600 | NEF 3 - TIER 2 | view |
| F4CE0304B*D600 | NEF 3 - TIER 2 | view |
| F4CE0304B*D601 | NEF 3 - TIER 2 | view |
| F4CE0304A*D600 | NEF 3 - TIER 2 | view |
