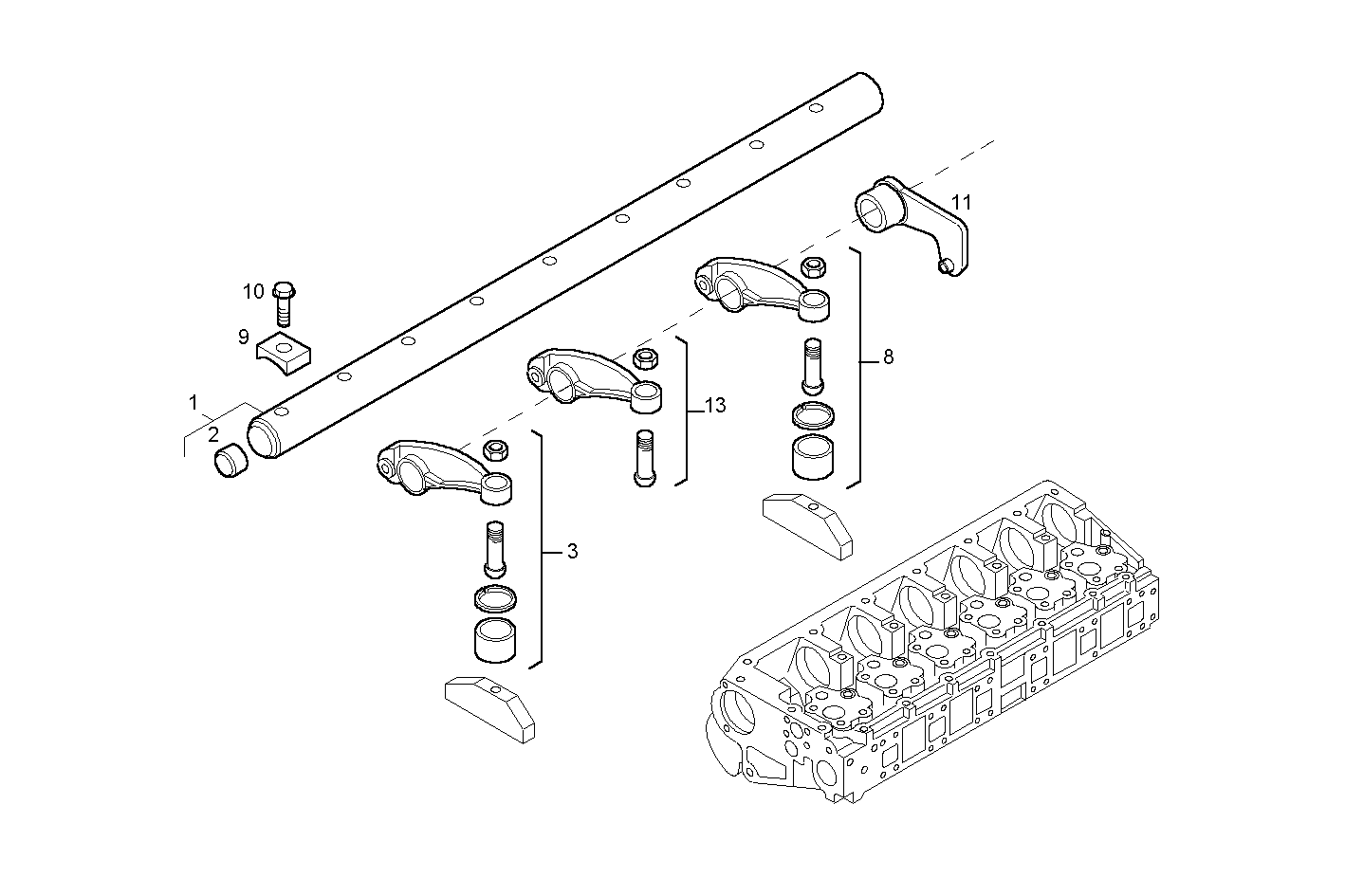

ROCKER SHAFT
Assembly ID: 0668.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99483035 | ROCKER SHAFT | 1 | ||
| 2 | 16988301 | LOCK PLUG | 2 | ||
| 3 | 500315947 | ROCKER ARM | 6 | ||
| 8 | 500315946 | ROCKER ARM | 6 | ||
| 9 | 500344277 | SPACING BAR | 7 | ||
| 10 | 99475580 | HEXAGON BOLT | 7 | ||
| 11 | 99483047 | LEVER | 6 | ||
| 13 | 500314916 | ROCKER ARM | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0687A*B301 | CURSOR 10 - TIER 2 | view |
| C10ENTE20.00 | CURSOR 10 - TIER 2 | view |
| C10ENTD20.00 | CURSOR 10 - TIER 2 | view |
| F3AE0684G*B001 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B001 | CURSOR 10 - TIER 2 | view |
| F3AE0684E*B002 | CURSOR 10 - TIER 2 | view |
| F3AE0684J*B901 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B102 | CURSOR 10 - TIER 2 | view |
| F3AE0684J*B902 | CURSOR 10 - TIER 2 | view |
| F3AE0684M*B903 | CURSOR 10 - TIER 2 | view |
| F3AE0684G*B003 | CURSOR 10 - TIER 2 | view |
| F3AE0684G*B004 | CURSOR 10 - TIER 2 | view |
| F3AE0684E*B006 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B003 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B005 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B006 | CURSOR 10 - TIER 2 | view |
| F3AE0684G*B005 | CURSOR 10 - TIER 2 | view |
| C10ENTD20.00A800 | CURSOR 10 - TIER 2 | view |
| C10ENTC23.00A004 | CURSOR 10 - TIER 2 | view |
| PUC10ENTD20.00A100 | CURSOR 10 - TIER 2 | view |
| F3AE0687A*B302 | CURSOR 10 - TIER 2 | view |
| C10ENTD20.20 | CURSOR 10 - TIER 2 | view |
| F3AE0681D*B315 | CURSOR 10 - EURO 3 | view |
| C10ENTC23.00A002 | CURSOR 10 - EURO 3 | view |
